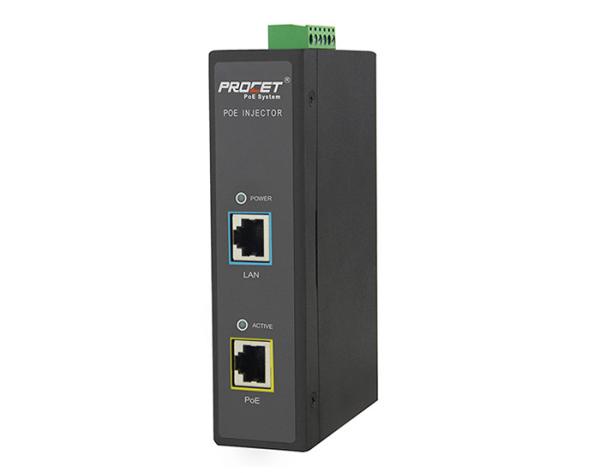

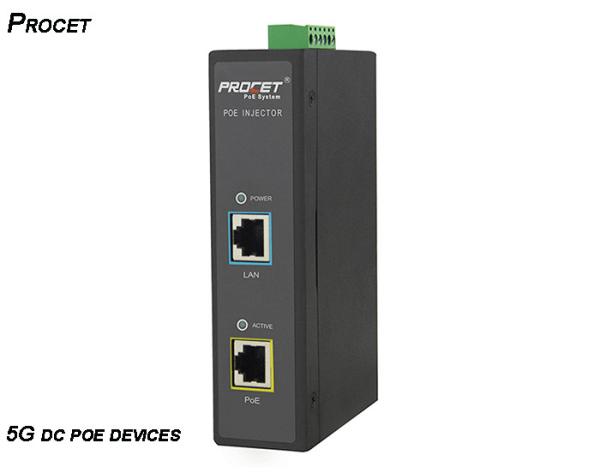

Procet 5G Industrial Fiber PoE injector Output 44-57Vdc with waterproof case

Froducts Features:

Procet Industrial Din-rail Fiber 60W PoE injector,Input 44-57Vdc,Output 44-57Vdc, Surge Protection 6Kv, Working Temperature at -40℃ to 65℃

1. PT-PSE105GW-D-5 is a single port midspan Injector with 4 Pair PoE up to 60 watts of power with 6Kv surge protection.

2. Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3Bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

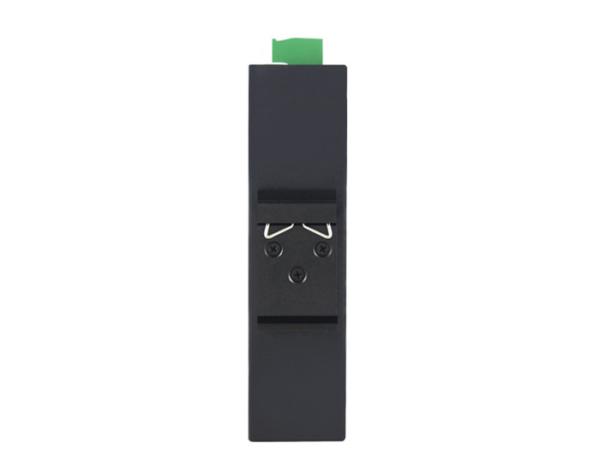

3. Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 44-57Vdc, the output voltage follows input and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables

Company Introduction:

Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.

Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.

Order Info.

PT-PSE105GW-D-5 48Vdc/0.32A/1000Mbps/(4,5+,7,8-)/Active

Packing

PT-PSE105GW-D-5 x 1

Manual x 1

Stock Quantity

50PCS

Warehouse Location

Dongguan China

Sample Delivery Time

Within 24H

Bulk Stock Delivery Time

Within 48H

Shipping Way

DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder

Packing Size

Qty: 20pcs/carton
G.W.: 12Kgs
Volume: 0.03 m³
Packing: Export Carton
Pallet size: 110 x 110cm
