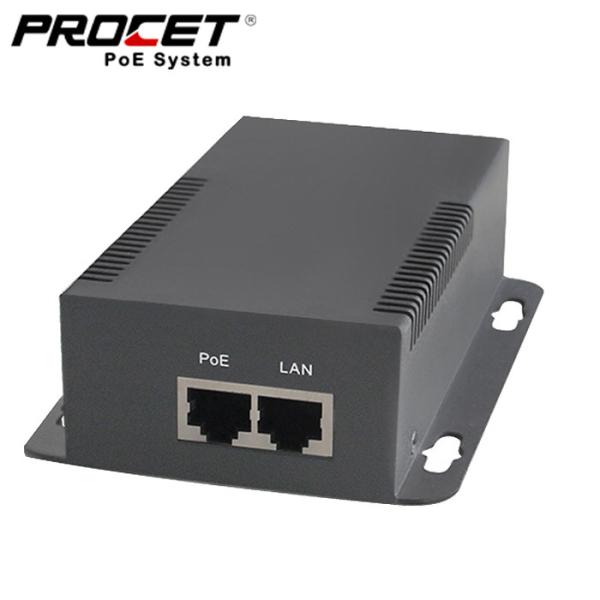

2.15A 24v Output Gigabit Poe Splitter Single Port
2.15A 24v Output Gigabit Poe Splitter Single Port
Specifications
Brand Name :
PROCET
Model Number :
PT-PD208GB-24-2
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Part Number :
PT-PD208GB-24-2
Input :
PoE++OR BT 40-57Vdc 2.0A Max
Output :
24V/2.15A
Ports condition :
LAN Port*1, Input PoE Port*1, DC Output Port*1
Data Speed :
10/100/1000Mbps
Regulatory Compliance :
IEEE 802.3bt, RoHS Compliance, WEEE Compliance
AC Surge Protection :
Line-Earth 1.2/50us (8/20us): 2KV; Line-Line 1.2/50us (8/20us): 1KV
Mounting :
Wall-mounted
Description

Standard IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
Support PoE injector with IEEE802.3af
RoHS Compliance
WEEE Compliance
Input & Output Input :40-57Vdc (Typical 48V) 2.0A
Output: 24Vdc 2.15A
Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
Data Speed: 10/100/1000Mbps
Working Environment Operating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
Mechanical Characteristics Case: Metal
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Size: 128mm X 89mm X 36mm
Weight: 350g
EMS IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air)
IEC61000-4-3(RS) 10V/m(80MHz~2GHz)
IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV
IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM
IEC61000-4-6(CS) 10V(150kHz~80MHz)

2.15A 24v Output Gigabit Poe Splitter Single Port

PoE splitter converter, separating power and data from 15.4w af PoE injector outputs 12Vdc 1.5A

2.15A 24v Output Gigabit Poe Splitter Single Port

2.15A 24v Output Gigabit Poe Splitter Single Port


Company Introduction:


PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

2.15A 24v Output Gigabit Poe Splitter Single Port

Why Choose Us:


Operating since 2000

PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team.


PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance


We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services


We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

2.15A 24v Output Gigabit Poe Splitter Single Port
2.15A 24v Output Gigabit Poe Splitter Single Port

FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want. For distributors, we can put your labels on it too.

2.15A 24v Output Gigabit Poe Splitter Single Port

Shipping:
2.15A 24v Output Gigabit Poe Splitter Single Port
2.15A 24v Output Gigabit Poe Splitter Single Port
