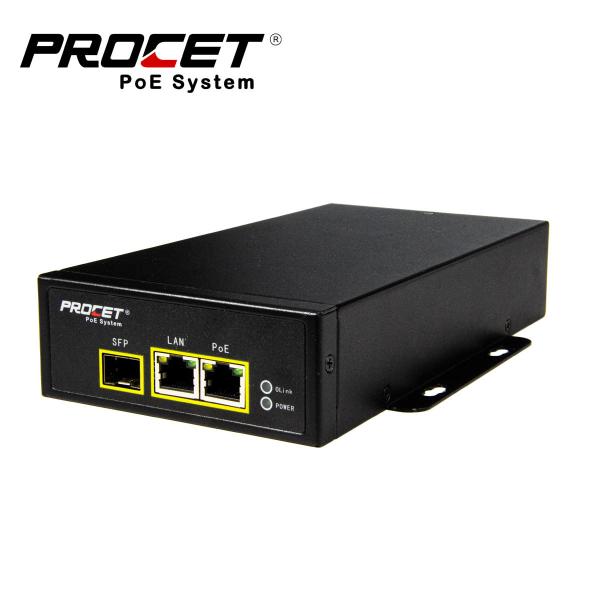

Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE109GBRO-A-S121
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Part Number :
PT-PSE109GBRO-A-S121
Pin Assignment and Polarity :
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Pass Through Data Rates :
10/100/1000 Mbps
Operating Temperature :
-40℃ to 65℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-40℃ to 85℃
Storage Humidity :
10% to 90%, non-condensation
Operating Altitude :
up to 5000meters
Protected line :
1,2,3,4,5,6,7,8
Common mode surge protection(10/700us) :
6KV
Differential mode surge protection (10/700us) :
1.5KV
Line-Earth 1.2/50us (8/20us) :
2KV
Line-Line 1.2/50us (8/20us) :
1KV
Safety Approvals :
cUL/UL, CE, CB, FCC, RCM, NOM
Description

Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector

802.3bt PoE++ Fiber PoE Converter Injector, Gigabit Data Rates Metal Case Surge Protector

Highlights:

  • Industrial Fiber PoE can be outdoor use by being covered with a waterproof case
  • Surge protection both at PoE port and AC port
  • 1000Base-FX to 1000Base-TX
  • SFP slot for Multi mode or Single-mode SFP transceiver
  • Gigabit data rates
  • AC power cord with optional US or EU plug or other standard plugs
  • IP20 high-impact metal enclosure
  • Extend temperature from -40℃ to 65℃
  • Diagnostic LEDs
Parameter Description
Key Features IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plugs
Diagnostic LEDs
Part Number PT-PSE109GBRO-A-S121
Pin Assignment and Polarity 4/5(+), 7/8(-) and 3/6(+),1/2(-)
Pass-Through Data Rates 10/100/1000 Mbps
Working Environment Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Safety Approvals cUL/UL, CE, CB, FCC, RCM, NOM
Warranty 2 year

Company Introduction:


PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector

Why Choose Us:


Operating since 2000

PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team.


PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance


We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services


We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector

FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want. For distributors, we can put your labels on it too.

Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector

Shipping:
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
Fiber Converter 802.3bt Poe Injector Gigabit Data Rates Metal Case Surge Protector
