75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
Specifications
Brand Name :
procet
Model Number :
PT-PSE107GHRO-A-2A
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
214 X 134 X 41mm
Ports condition :
LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance :
IEEE802.3bt RoHS Compliance WEEE Compliance
Pass Through Data Rates :
10/100/1000 Mbps
Output :
55V 75W Guaranteen
Input :
90 to 264Vac(100 to 240Vac Rated) 1.5A
PoE Surge Protection :
6KV
AC Surge Protection :
6KV
Safety Approvals :
CE, FCC
Description

75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device

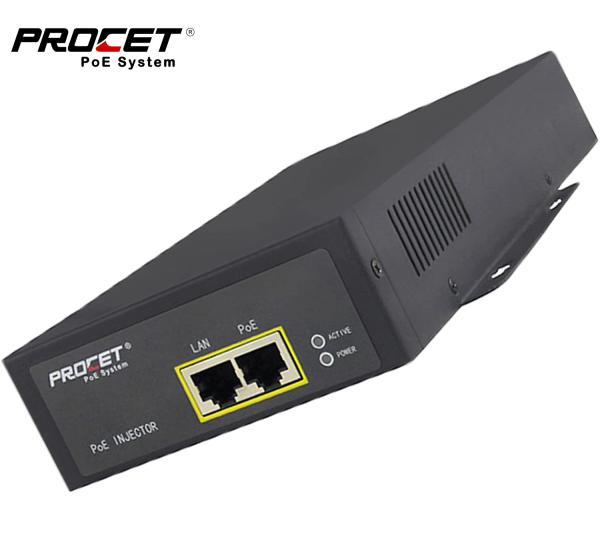

PROCET PoE Injector Industrial Grade Lightning-proof PoE Power Supply Device, Voltage Output Of 55Vdc, Up To 75W Max Power, Wide Temperature -40℃ to 65℃, PT-PSE107GHRO-A With 6Kv Surge Protection

Key Features:
Industrial PoE can be outdoor use by covered with a waterproof case
Extend temperature from -40℃ to 65℃
Lighting Protection both at AC and PoE port
Gigabit data rates
IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plugs

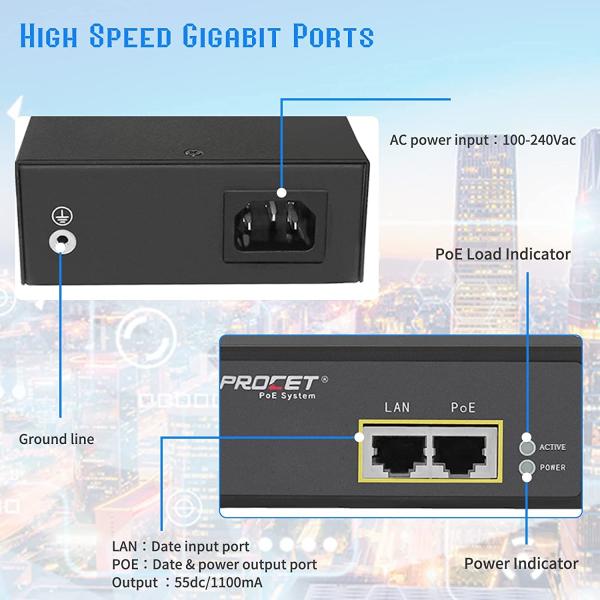

Diagnostic LEDs
Parameter Description
Part Number PT-PSE107GHRO-A
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 75W Guaranteen
Input AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 1.5A
Frequency: 47 to 63Hz (50/60Hz Typ.)
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
LED Indicator Power Indicator: Green
PoE Load Indicator: Green
Safety Approvals CE, FCC
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device
75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device

75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device

75w Dc Poe Injector Industrial Grade Lightning Proof Poe Power Supply Device

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
