Specifications
Name :
Shuttle Valve
Working Medium :
Air
Pressure Range :
0~1.0Mpa
Temperature Range :
0~60℃
Port Size :
G1/8″~G1″
Net Weight :
0.05kg/pcs
Body Material :
Aluminum Alloy
Quick Detail :
ST Series Shuttle Valve
Port Sizes Available :
G1/8″,G1/4″,G3/8″,G1/2″,G3/4″,G1″
Min. Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

ST series

Detailed Product Description
Name: Shuttle Valve Working Medium: Air
Pressure Range: 0~1.0Mpa Temperature Range: 0~60℃
Port Size: G1/8″~G1″ Net Weight: 0.05kg/pcs

ST Series Shuttle Air Flow Control Valve Aluminum Body With Port Size G 1 / 8 ” – G 1 “

ST Series Shuttle Valve port size G1/8~G1 Aluminum material valve body e.g ST-02

Quick Detail:

* ST Series Shuttle Valve

* Body Material Aluminum Alloy

* Port Size G1/8”,G1/4”,G3/8,G1/2”,G3/4”,G1”

* Compact design,small volume

* Easy operation,sensitive of Respond

* Directly pipe joint mounting,easy and convenient

* Stable design,long serive life

Applications:

ST Series Shuttle valve function like two check valve combine together,it is widely use in the Logic circuit or program circuit,the air direction can be determined by selectable by pressure,when pressure differential Positive one port open and non-return,another port shut,when pressure differential negative,the action function will be reversed.

Specifications:

ST Series Shuttle valve

Body material aluminum alloy

Port Size G1/8”~G1”

Surface treatment hardcoat anodiz

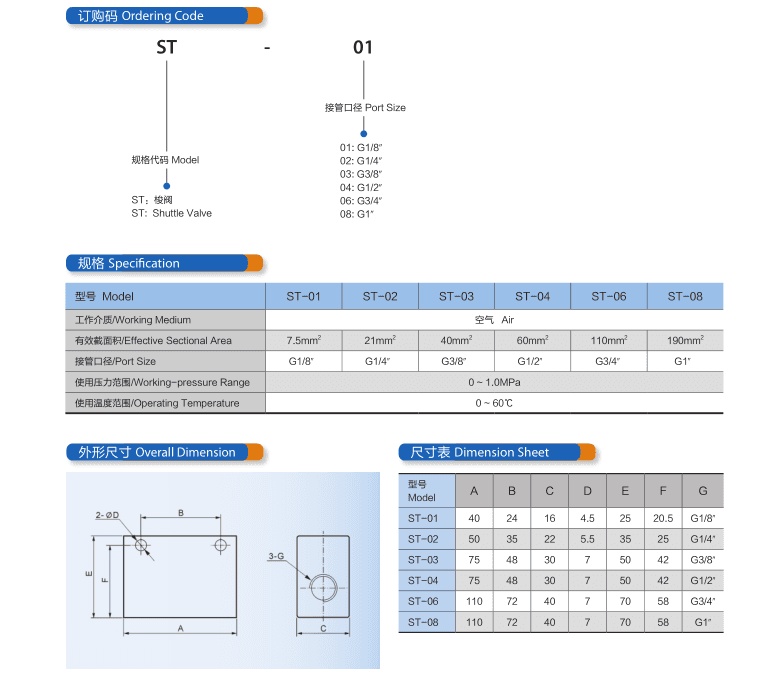

Model ST-01 ST-02 ST-03 ST-04 ST-06 ST-08
Working Medium Air
Effective Sectional Area 7.5mm2 21mm2 40mm2 60mm2 110mm2 190mm2
Port Size G1/8″ G1/4″ G3/8″ G1/2″ G3/4″ G1″
Working-pressure Range 0 ~ 1.0MPa
Operating Temperature 0 ~ 60℃





Model A B C D E F G
ST-01 40 24 16 4.5 25 20.5 G1/8″
ST-02 50 35 22 5.5 35 25 G1/4″
ST-03 75 48 30 7 50 42 G3/8″
ST-04 75 48 30 7 50 42 G1/2″
ST-06 110 72 40 7 70 58 G3/4″
ST-08 110 72 40 7 70 58 G1″
