AC1000-5000 F.R.L.combination
AC1000-5000 F.R.L.combination
AC1000-5000 F.R.L.combination
AC1000-5000 F.R.L.combination
AC1000-5000 F.R.L.combination
AC1000-5000 F.R.L.combination
Specifications
products :
Array,Array,Array,Array,Array,Array,Array,Array,Array,Array,Array,Array
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

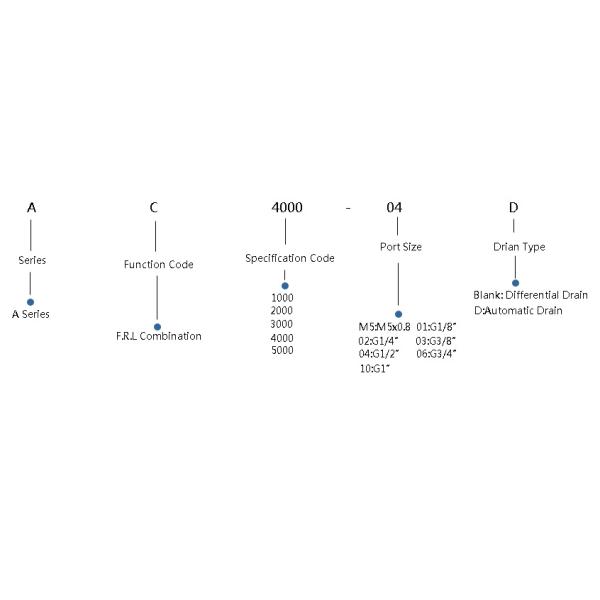

Ordering Code

AC1000-5000 F.R.L.combination
Specification

Model AC1000-M5 AC2000-01 AC2000-02 AC2500-02 AC2500-03 AC3000-02 AC3000-03 AC4000-03 AC4000-04 AC4000-06 AC5000-06 AC5000-10
Rated Flow 90 500 500 1500 1500 2000 2000 4000 4000 4500 5000 5000
Port Size M5 G1/8″ G1/4″ G1/4″ G3/8″ G1/4″ G3/8″ G3/8″ G1/2″ G3/4″ G3/4″ G1″
Filter Precision 25μm
Highest Working Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Poerating Temp.Range 5~60℃
Range of Adujstable Pressure 0.05~0.7MPa 0.05~0.85MPa
Recommended Oil Use ISO VG 32
Container Material Polycarbonate
Protective Cover Not Available Available
Drain Function Differential Drain Differential Drain,Automatic Drain
Valve Type With Overflow
Composing
Elements		 Filter AF1000-M5 AF2000-01 AF2000-02 AF3000-02 AF3000-03 AF3000-02 AF3000-03 AF4000-03 AF4000-04 AF4000-06 AF5000-06 AF5000-10
Regulator AR1000-M5 AR2000-01 AR2000-02 AR2500-02 AR2500-03 AR3000-02 AR3000-03 AR4000-03 AR4000-4 AR4000-06 AR5000-06 AR5000-10
Lubricator AL1000-M5 AL2000-01 AL2000-02 AL3000-02 AL3000-03 AL3000-02 AL3000-03 AL4000-03 AL4000-04 AL40000-06 AL5000-06 AL5000-10

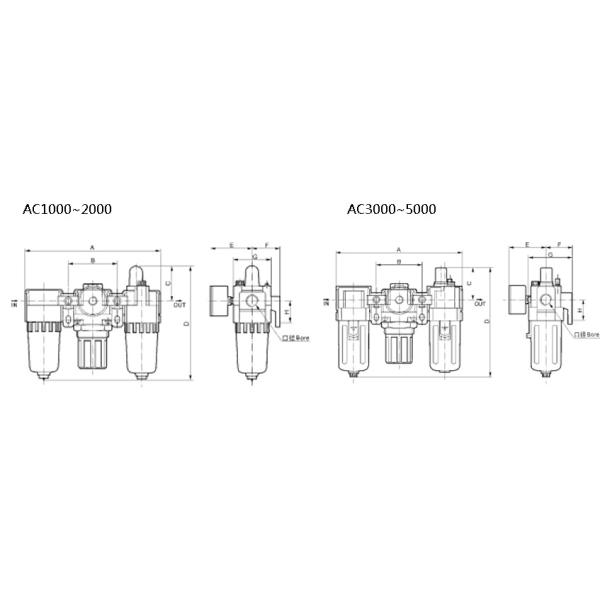

Overall Dimension
AC1000-5000 F.R.L.combination
Dimension Sheet

Model Bore A B C D E F G H
AC1000 M5 91 33 25.5 84.5 26 25 25 20
AC2000 G1/8″~G1/4″ 140 50 38 125 56.8 30 40 24
AC2500 G1/4″~G3/8″ 181 64 38 156.5 60.8 41 53 35
AC3000 G1/4″~G3/8″ 181 64 38 156.5 60.8 41 53 35
AC4000 G3/8″~G1/2″ 238 84 41 191.5 65.5 50 70 40
AC4000-06 G3/4″ 253 89 41 193 69.5 50 70 40
AC5000 G3/4″~G1″ 300 105 48 271.5 75.5 69.8 90 50
