Specifications
Short Description :
Detailed Product Description Name: Sliding Valve Working Medium: Filtered Air Pressure Range: 0~1.0Mpa Temperature Range: 5~60℃ Port Size: G1/8″~G3/4″ Net Weight: 0.13kg/pcs Hand Sliding Air Flow Control Valve To Connect Piping MV Series With 30N
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Detailed Product Description
Name: Sliding Valve Working Medium: Filtered Air
Pressure Range: 0~1.0Mpa Temperature Range: 5~60℃
Port Size: G1/8″~G3/4″ Net Weight: 0.13kg/pcs

Hand Sliding Air Flow Control Valve To Connect Piping MV Series With 30N Force

MV Series hand sliding valve is a two-position three-way hand sliding valve,which is usually installed in the piping to turn on/off airs.When it is turned off, the air pressure in the pneumatic system is exhausted simultaneously,two position three way port size G1/8~G3/4 Aluminum alloy material or brass material
Quick Detail:
* MV Series hand sliding valve
* Two position three way
* Body Material Aluminum Alloy or brass for option
* Port Size G1/8”,G1/4”,G3/8,G1/2”,G3/4”
* Compact design,small volume,light weight
* Easy operation,sensitive of Respond
* Smooth sliding stroke,very easy for operating
* Various end thread type for option,easy for joint pipe-work
* Flow direction one way type
* Directly pipe joint mounting,easy and convenient
* Stable design,long serive life

Applications:
MV Series hand sliding valve two position three way use to turn on or shut off working medium,when it sliding on,the circuit of system through,when it sliding off,the system pressure will exhaust through the exhausting port of HSV valve,the circuit close.
MV very easy to operate for instance shut off or turn on the system pressure circuit.

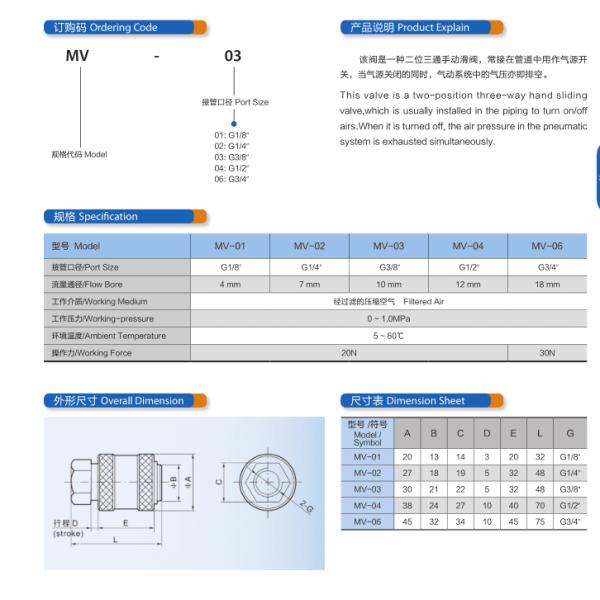

Specifiction

Model MV-01 MV-02 MV-03 MV-04 MV-06
Port Size G1/8″ G1/4″ G3/8″ G1/2″ G3/4″
Flow Bore 4 mm 7 mm 10 mm 12 mm 18 mm
Working Medium Filtered Air
Working-pressure 0 ~ 1.0MPa
Ambient Temperature 5 ~ 60℃
Working Force 20N 30N



Model/Symbol A B C D E L G
MV-01 20 13 14 3 20 32 G1/8″
MV-02 27 18 19 5 32 48 G1/4″
MV-03 30 21 22 5 32 48 G3/8″
MV-04 38 24 27 10 40 70 G1/2″
MV-06 45 32 34 10 45 75 G3/4″
