Specifications
Model :
AR1000-M5,AR2000-01,AR2000-02,AR2500-02,AR2500-03,AR3000-02,AR3000-03,AR4000-03,AR4000-04,AR4000-06,AR5000-06,AR5000-10
Rated Flow :
100,550,550,2000,2000,2500,2500,6000,6000,6000,8000,8000
Port Size :
M5,G1/8",G1/4",G1/4",G3/8",G1/4",G3/8",G3/8",G1/2",G3/4",G3/4",G1"
Highest Working Pressure :
1.0MPa
Ensured Pressure Resistance :
1.5MPa
Operating Temp. Range :
5~60℃
Range of Adjustable Pressure :
0.05~0.7MPa,0.05~0.85MPa
Valve Type :
With Overflow
Description

Product Detail

Product Tags

Ordering Code

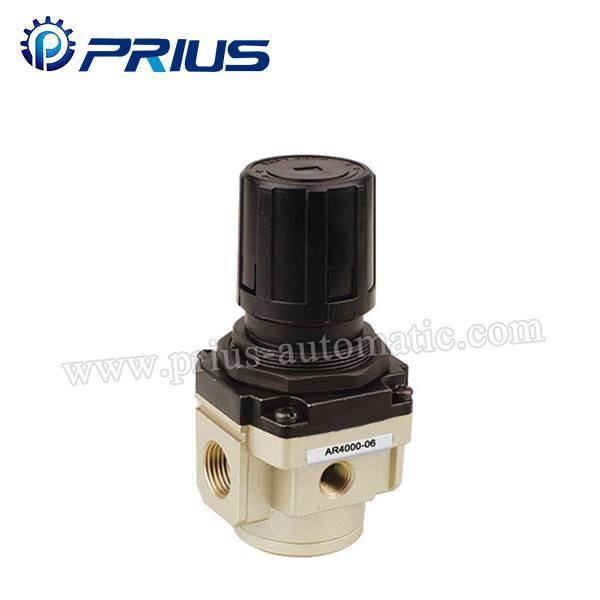

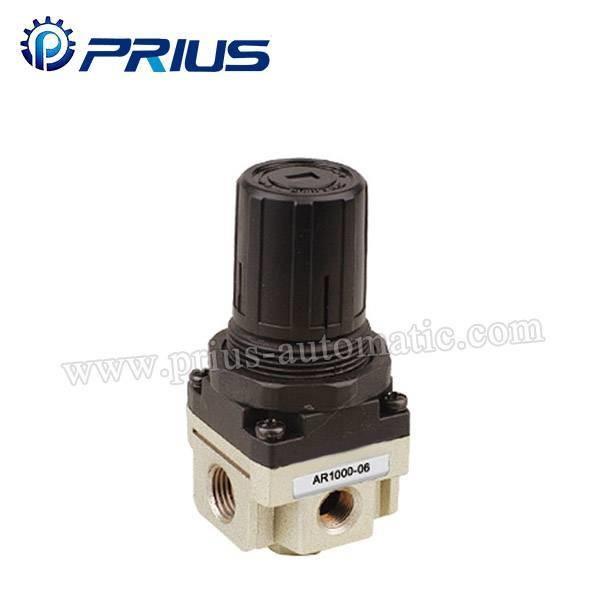

AR1000-5000 regulator

Specification

Model AR1000-M5 AR2000-01 AR2000-02 AR2500-02 AR2500-03 AR3000-02 AR3000-03 AR4000-03 AR4000-04 AR4000-06 AR5000-06 AR5000-10
Rated Flow 100 550 550 2000 2000 2500 2500 6000 6000 6000 8000 8000
Port Size M5 G1/8″ G1/4″ G1/4″ G3/8″ G1/4″ G3/8″ G3/8″ G1/2″ G3/4″ G3/4″ G1″
Highest Working Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Poerating Temp.Range 5~60℃
Range of Adujstable Pressure 0.05~0.7MPa 0.05~0.85MPa
Valve Type With Overflow

Dimension Sheet

AR1000-5000 regulator Model Bore A B C D E
AR1000 M5 61.5 11 25 25 28
AR2000 G1/8″~G1/4″ 95 17 40 40 34
AR2500 G1/4″~G3/8″ 102.5 25 48 53 34
AR3000 G1/4″~G3/8″ 127.5 35 53 53 40
AR4000 G3/8″~G1/2″ 149.5 37.5 70 70 54
AR4000-06 G3/4″ 154 40.5 70 75 54
AR5000 G3/4″~G1″ 168 48 90 90 54
