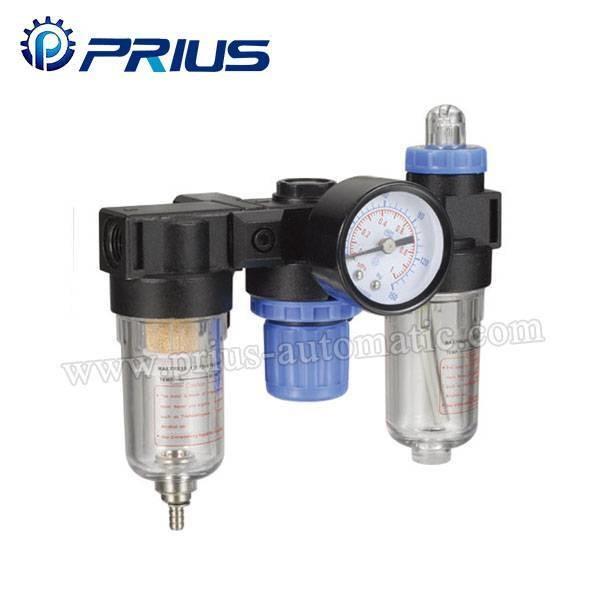

AC/BC F.R.L.combination
AC/BC F.R.L.combination
Specifications
Ordering Code Specification Model :
Array,Array,Array,Array,Array
Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Ordering Code

AC/BC F.R.L.combination
Specification

Model AC1500 AC2000 BC2000 BC3000 BC4000
Operating Fluid Air
Port Size G1/8″ G1/4″ G1/4″ G3/8″ G1/2″
Filtering Element Roughness 40μ
Range of Adjustable Pressure 0.05~0.85MPa
Max. Adjustable Pressure 0.95MPa
Ensured Pressure Resistance 1.5MPa
Poerating Temp.Range 5~60℃
Capacity of Filter Cup 15 cc 60 cc
Capacity of Oil Feed Cup 25 cc 90 cc
Suggested Lube ISO VG 32 or Same Grade Oil
Weight 0.7KG 0.9KG
Material Body Aluminum Die-casting Forming
Container Cup PE
Protective Cup Cover - Iron
Composing
Elements		 Filter AF1500 AF2000 BF2000 BF3000 BF4000
Regulator AR1500 AR2000 BR2000 BR3000 BR4000
Lubricator AL1500 AL2000 BL2000 BL3000 BL4000

Overall Dimension
AC/BC F.R.L.combination
