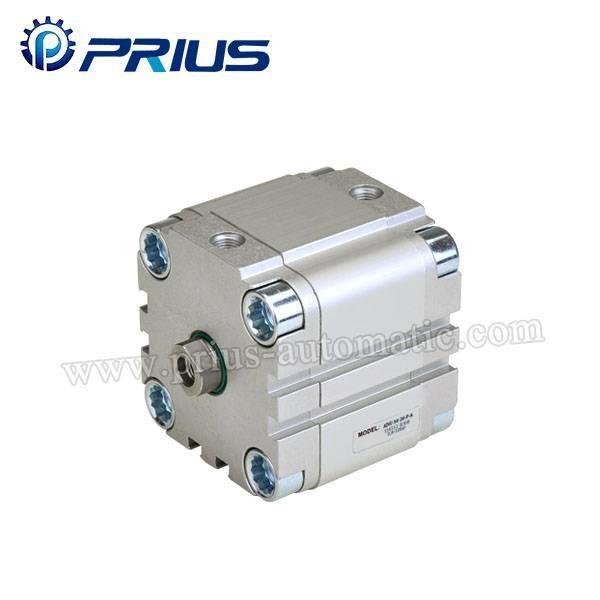

ADVU compact clinder
ADVU compact clinder
Specifications
Bore :
16,20,25,32,40,50,63,80,100
Action :
Double Acting,Single Rod/Double Rod
Fluid :
Air
Ensured Pressure Resistance :
1.5MPa
Operating Pressure Range :
Array,Array
Ambient and Fluid Temp :
-20~80℃ (No freezing)
Port Size :
M5,G1/8″,G1/4″
Piston Rod Thread :
Array,Array
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Ordering CodeADVU compact clinder

Specification

 Bore (mm) 16 20 25 32 40  50 63 80  100
Action   Double Acting, Single Rod/Double Rod
Fluid    Air
Ensured Pressure Resistance      1.5MPa
Operating Pressure Range ADVU - -P-A 0.12~1.0MPa 0.1~1.0MPa 0.08~1.0MPa 0.06~1.0MPa
ADVU - -P-A-S2 0.13~1.0MPa 0.12~1.0MPa 0.1~1.0MPa 0.8~1.0MPa
Ambient and Fluid Temp.     -20~80℃ (No freezing)
Port Size  M5     G1/8″ G1/4″
Piston Rod Thread Female Thread M4  M5 M6  M8 M10 M12
Male Thread M8   M10×1.25  M12×1.25 M16×1.5 M20×1.5
Cushion     Rubber Bumper

Overall Dimension
ADVU compact clinder
Dimension Sheet

Bore D1 E EE H L2 L3 L4 MM PL RT T2 TG ZJ CC1
16 6 29 M5 1 38 4 18.5 8 8 M4 4 18 41 6
20 6 35.5 M5 1.5 38 4 18.5 10 8 M5 4 22 41 8
25 6 39.5 M5 1.5 39.5 4 18.5 10 8 M5 4 26 43.5 8
32 6 49.5 G1/8 2 44.5 5 22 12 8 M6 4 32 49.5 10
40 6 59.5 G1/8 2.5 45.5 5 22 12 8 M6 4 42 51 10
50 6 68 G1/8 2.8 46.5 5 22 16 8 M8 4 50 53 14
63 8 86 G1/8 4 50 6 26 16 8 M10 4 62 56 14
80 8 106 G1/8 4 56 6 26 20 8.5 M10 4 82 62 17
100 8 128 G1/4 5 66.5 8 26 35 10.5 M10 4 103 76.5 22
