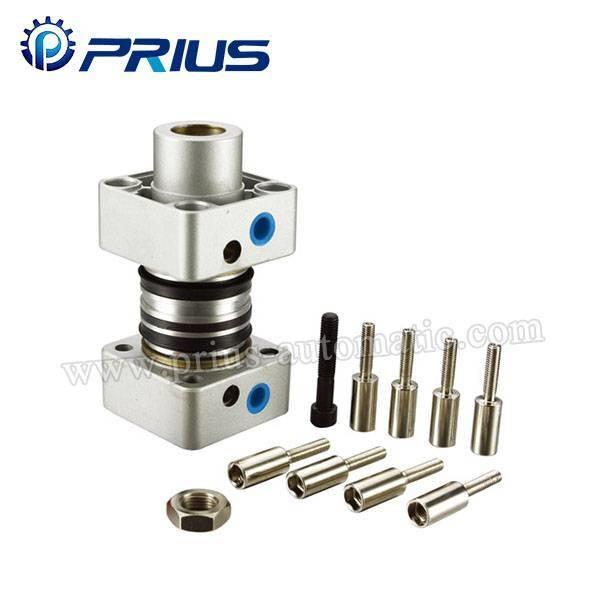

Square Cover Pneumatic Cylinder Kit , SI Air Cy...
Square Cover Pneumatic Cylinder Kit , SI Air Cy...
Specifications
Name :
SI Cylinder Kit
Material :
Aluminum
Working Pressure :
1-9.0Kgf/cm²
Package :
1 Set/box
Type :
Without Barrel And Piston
Port Size :
M5X0.8/G1/8″
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Name: SI Cylinder Kit Material: Auminum
Working Pressure: 1-9.0Kgf/cm² Package: 1 Set/box
Type: Without Barrel And Piston Port Size: M5X0.8/G1/8″

SI Cylinders Assembly Kits Square Cover with bore from 32mm to 320mm



Specification

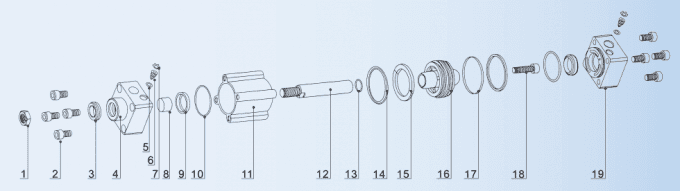

NO. Designation Material NO. Designation Material
1 Nut Carbon Steel 11 Barrel(Without) Hard anodized aluminum

2 Profile Bolt Carbon Steel 12 Piston Rod(Without) S45C Hard chrome carbon steel

3 Front Cover Seal NBR 13 Rod O-ring NBR

4 Front Cover Aluminum Alloy 14 Piston Seal NBR

5 O-ring NBR 15 Magnet (Optional) RbFeb

6 Adjustable Screw   16 Piston Aluminum Alloy

7 Block Slip   17 Wear Ring PA66

8 Self Lubricating bearing PTFE+Brass 18 Hex Socket Screw Carbon Steel

9 Cushion Seal NBR 19 Back Over Aluminum Alloy

10 Cover O-ring NBR
