Round Stainless Steel Mini Air Cylinder CRDSW T...

Specifications

Name :

Stainless Steel Air Cylinder

Working Medium :

Air

Working Pressure :

1-9.0Kgf/cm²

Pressure :

13.50Kgf/cm²

Temperature Range :

0-70℃

Speed Range :

50~800mm/s

Buffer Type :

Gasket Buffer/Adjustable Buffer

Port Size :

G1/8″ ~ G3/8″

Fix Type :

Normal/LB/FA/FB/SDB

Motion Pattern :

Single/Double Acting

Quick Detail :

CRDSW type Round Stainless Steel Pneumatic Mini Cylinder with magnet, air buffer adjustable or rubber cushion for choice, Stainless steel barrel, Aluminum tub...

FOB Price :

negotiation

Min.Order Quantity :

10PCS

Supply Ability :

10000 Piece/Pieces per Month

Port :

NingBo Or ShangHai

Payment Terms :

T/T,L/C,PAYPAL

Description

Product Detail

Product Tags

Name:	Stainless Steel Air Cylinder	Working Medium:	Air
Working Pressure:	1-9.0Kgf/cm²	Pressure:	13.50Kgf/cm²
Temperature Range:	0-70℃	Speed Range:	50~800mm/s
Buffer Type:	Gasket Buffer/Adjustable Buffer	Port Size:	G1/8″ ~ G3/8″
Fix Type:	Normal/LB/FA/FB/SDB	Motion Pattern:	Single/Double Acting

Quick Detail:

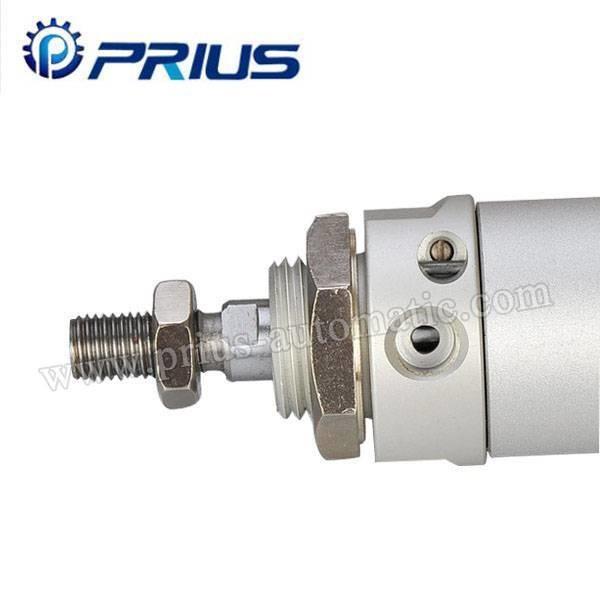

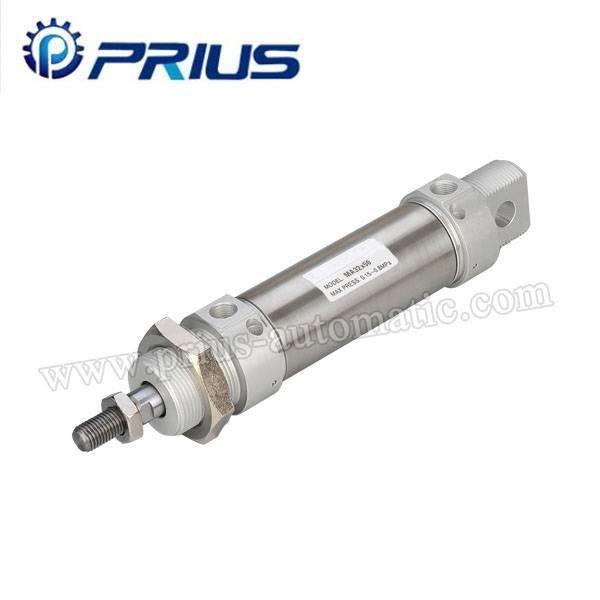

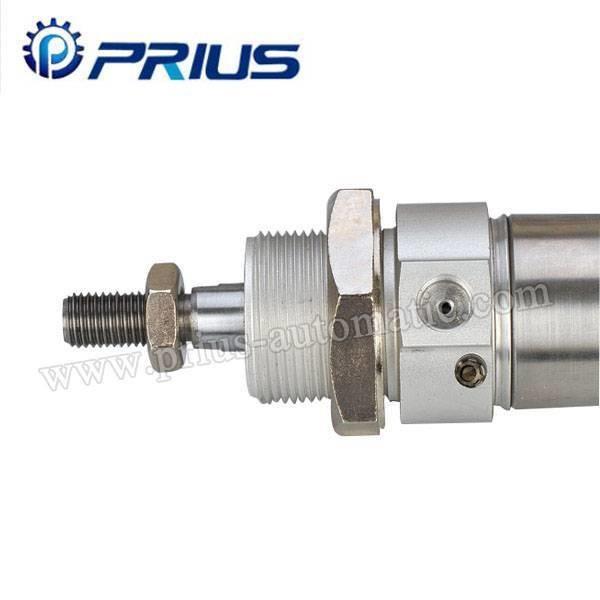

* CRDSW type Round Stainless Steel Pneumatic Mini Cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

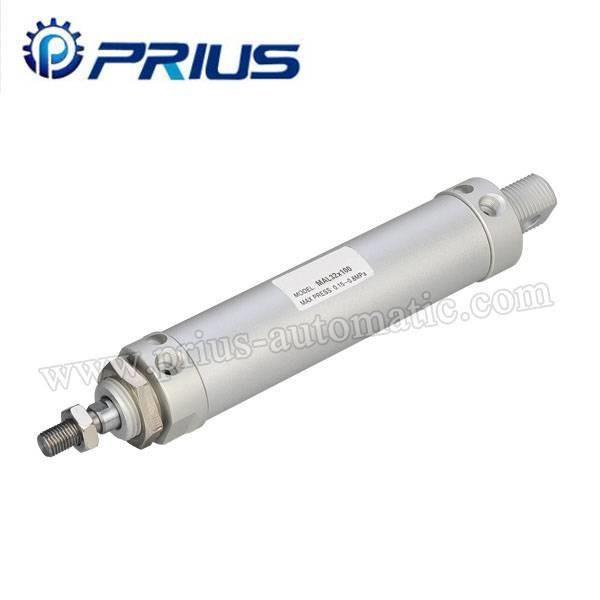

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 32mm,40mm,50mm,63mm

* Cylinder kits and accessories available

Specifiction

Bore (mm)	32	40	50	63
Motion Pattern	Double Acting or Single Acting
Working Medium	Air
Fixed Type	Normal Type/ LB Type/ FA Type/ SDB Type
Working Pressure Range	1~9.0MPa
Ensured Pressure Resistance	13.5MPa
Operating Temperature Range	0~70℃
Operating Speed Range	50~800mm/s
Buffer Type	Gasket Buffer / Adjustable Buffer
Port Size	G1/8″	G1/4″		G3/8″

Stroke

Bore(mm)	Stroke	Max.Stroke	Permissible Stroke
32	1…500	500	800
40			1000
50			1200
60			1500
