Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Specifications
Brand Name :
COMESH
Model Number :
COMESH-12
Certification :
FDA
Place of Origin :
Hebei,China
MOQ :
30 meters
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,Paypal
Supply Ability :
2000 meters per week
Delivery Time :
within 7days
Packaging Details :
Plastic bag inside and plywood case outside
Style :
Spiral mesh belt
Color :
white,red,blue
Usage :
drying packaging paper, cultural paper, board paper and pulp board with large basis weight
Type :
spiral mesh;fill round wire;fill flat wire
Keywords :
Polyester spiral mesh belt
Material :
100 % polyester
Application :
Many industry
Name :
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Ring :
1.Small loop, suitable for fine paper . 2.Midium loop, suitable for board & packing paper . 3.Large loop, suitable for board & packing paper
Description
Polyester Spiral Press Filter Cloth Fabric Belt
This spiral dryer fabric is designed for paper making machine dryer screens, offering superior performance in drying and filtration applications across multiple industries.
Product Applications
Suitable for drying packaging paper, cultural paper, board paper, and pulp board with large basis weight. Widely used in papermaking, coal mining, food processing, pharmaceutical, printing and dyeing, and rubber products industries. Can also function as a conveyor belt and mesh belt for compound machines.
Construction & Features
  • Manufactured from polyester monofilament formed into spiral rings
  • Wefts connect spiral loops to create a seamless spiral net structure
  • Smooth surface with high air permeability and temperature resistance
  • Optional filter wire integration reduces permeability and minimizes material loss
  • Larger air permeability with flat surface and excellent strength
  • Extended working life with flexible joining options
Technical Specifications
Polyester spiral mesh belt serves as a critical auxiliary component in papermaking machine drying sections. Available in three specifications based on single ring dimensions. Manufactured using high-viscosity polyester chip wire through molding, weaving, finishing, and stereotyping processes to create fine, uniform mesh patterns that effectively prevent small object leakage.
Industrial Applications
Primarily used in belt dewatering press filter applications across food processing, pharmaceutical, chemical, alcohol, vinegar, coal washing, mining, and paper pulp washing and drying operations.

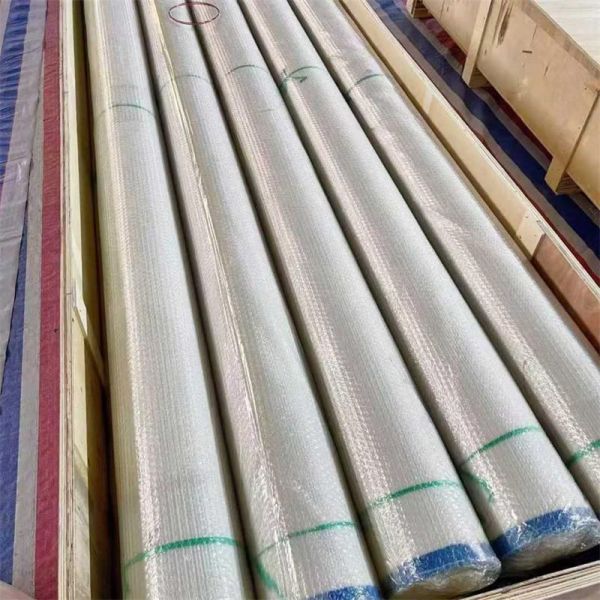

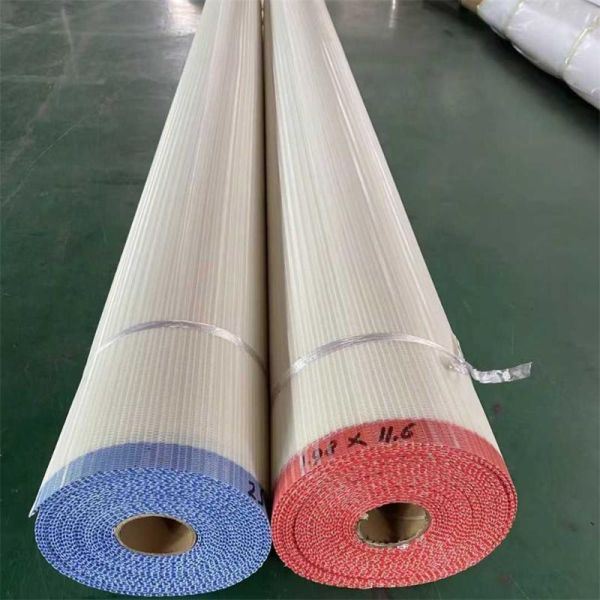

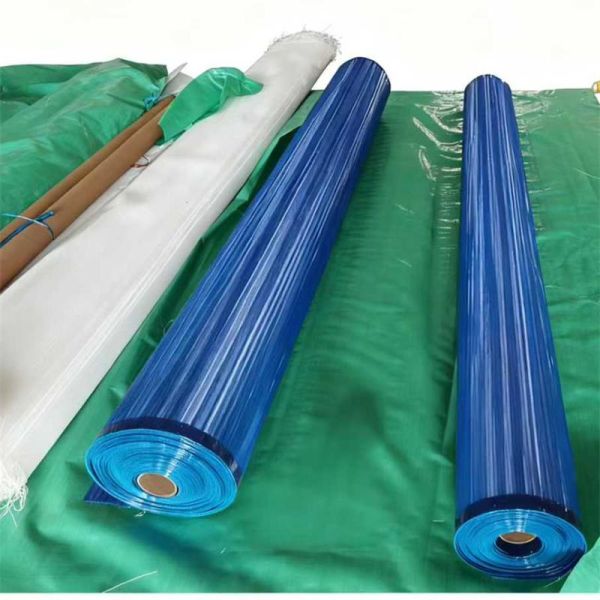

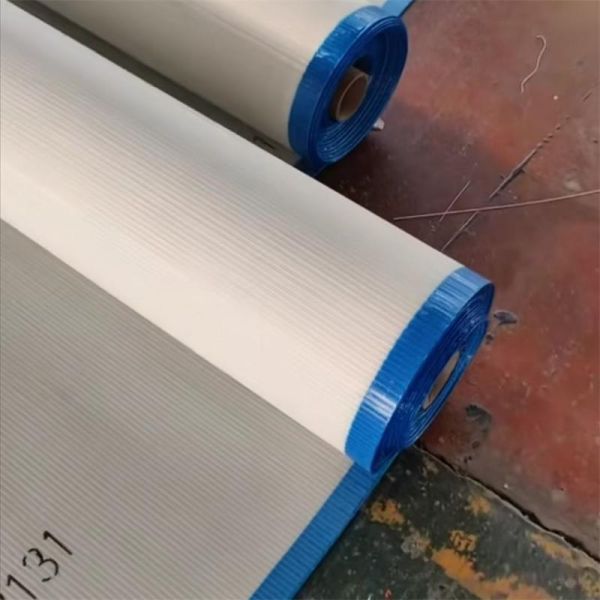

Product Images
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
Polyester Spiral Press Filter Cloth Fabric Belt Spiral Dryer Fabric for Paper Making Machine Dryer Screen
