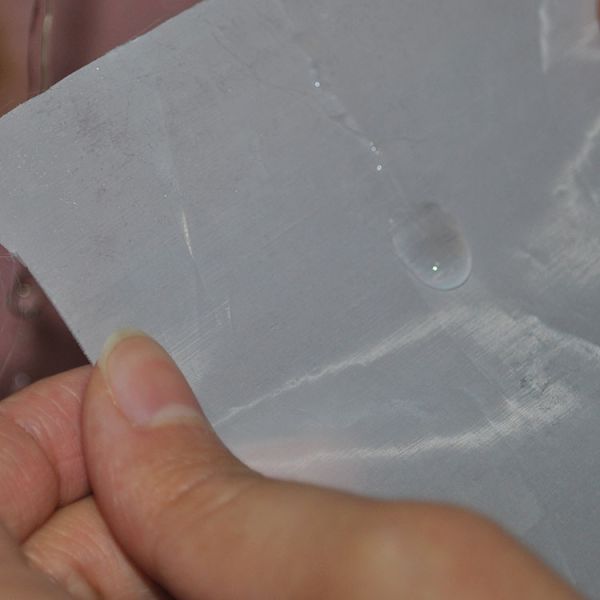

Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh
Specifications
Common width :
127 cm 165 cm 260 cm 360 cm
Mesh count :
18 to 600
Supply Ability :
100000 square meters per one month
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Common color :
white
Aperture :
3.5 to 1000 micron
MOQ :
20 m
Delivery Time :
7 to 15 work days
Packaging Details :
PP bag inside, and then carton or wooden case outside.
Wire diameter :
39 to 350 micron
Certification :
SGS, FDA
Sample :
available
Model Number :
CM-N002
Place of Origin :
China
Length :
30 or 50 m per one roll
Price :
USD 1.2 to 6.5 per one square meter
Brand Name :
COMESH
Material :
nylon
Description

Food Grade 5 20 25 30 50 60 100 200 300 400 Micron Nylon Filter Mesh

1. Description :

Nylon filter mesh, also known as polyamide (PA) filter mesh, is a high-performance synthetic woven mesh made from nylon filament (commonly Nylon‑6 or Nylon‑66). It is widely used for liquid/solid separation, particle sieving, filtration, and protection in industrial and daily applications.

2. Specification Description :

Aperture (um) Mesh Count Wire Diameter (um)
3.5 600 39
7 560 39
10 530 39
15 470 39
20 430 39
25 400 39
40 330 40
50 280 40
75 200 50
100 160 60
125 120 80
150 100 100
200 76 120
250 60 150
300 50 200
400 40 200
500 35 200
600 30 250
800 24 300
900 22 300
1000 18 350

3. Heat Resistance :

  • Continuous working temperature: approximately -40°C to 100°C
  • Short-term heat resistance: up to about 120°C

4. Key Features :

  • High tensile strength & durability
  • Strong and tear-resistant, with excellent abrasion resistance for long service life.
  • Good elasticity & shape retention
  • Flexible and resilient, not easily deformed under pressure.
  • Stable chemical resistance
  • Resistant to weak acids, weak alkalis, oils, and solvents; performs well in water-based filtration.
  • Smooth surface & easy cleaning
  • Low friction surface allows good flow rate and easy backwashing or reuse.
  • Uniform mesh opening
  • Precise weaving ensures consistent pore size and accurate filtration grading.
  • Lightweight & easy to fabricate
  • Can be cut, sewn, heat-sealed, or made into filter bags, discs, and tubes.


5. Main Applications :

  • Industrial filtration: water treatment, chemicals, paints, inks, food and beverage processing
  • Sieving and classification: powder, granules, and particle sorting
  • Printing: screen printing mesh
  • Daily use: filter bags, strainers, kitchen filters, aquarium filters
  • Agriculture & protection: insect screens, dust filtration, separation nets
