Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Specifications
Brand Name :
Comesh
Model Number :
CO-LO
Certification :
FDA
Place of Origin :
China
MOQ :
30 meters
Price :
USD 5.99-35.99per meter
Payment Terms :
L/C, T/T
Supply Ability :
1000 meters per week
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Description
Product Description

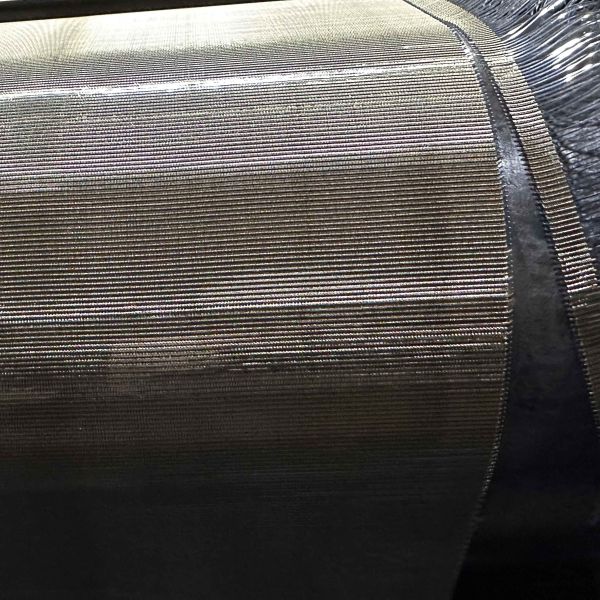

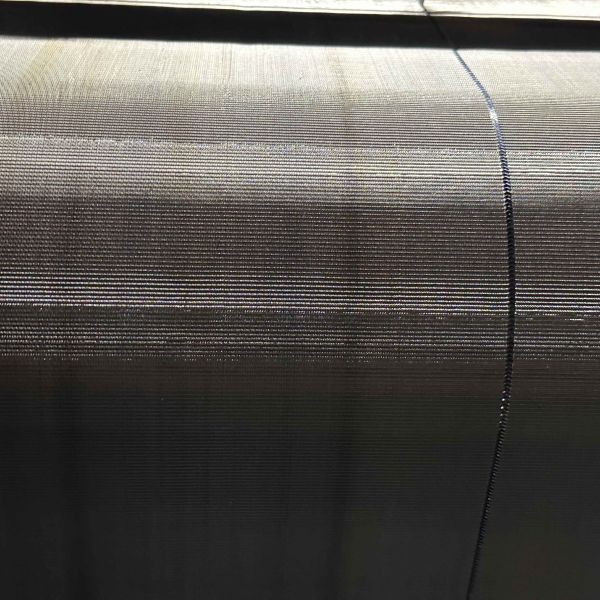

Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper Clad Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh
product name: Copper Clad Steel Wire Reverse Dutch Woven Belt Type Continuous Filter Mesh Belt
Material:Copper Clad Steel Wire
Size:Customized
Standard Width:1000mm, 1200mm, 1500mm (Other widths can be customized)
Weaving Type: Plain Dutch Weave (PDW) / Twilled Dutch Weave (TDW)
Micron Rating: ~ 800μm to ~ 20μm (Varies depending on mesh count)
Wire Diameter: Weft wire: 0.12mm - 0.55mm; Warp wire: 0.25mm - 1.2mm
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt

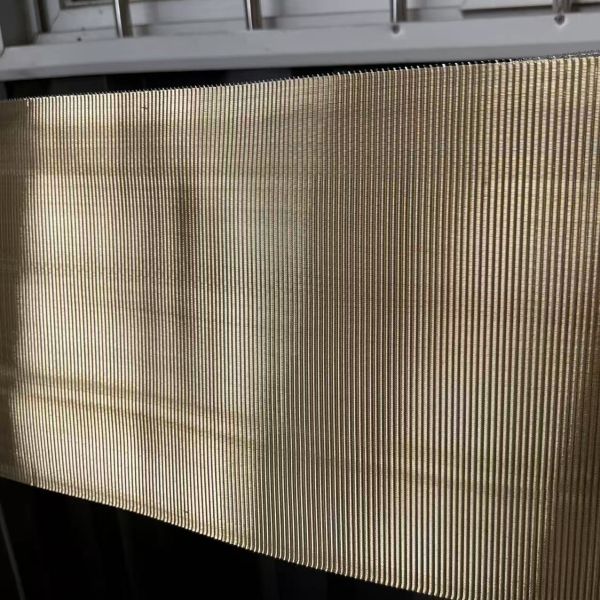

Product Name: Copper-Clad Steel Dutch Woven Wire Mesh / Filter Mesh
Product Overview:
Our Copper-Clad Steel Dutch Woven Wire Mesh is a high-performance filtration material engineered for heavy-duty applications. It combines the exceptional strength and magnetic permeability of steel core with the superior corrosion resistance, electrical conductivity, and anti-galling properties of a copper outer layer. Manufactured using the robust Dutch Weave method, it ensures high particle retention capability and outstanding mechanical stability under extreme pressure and flow conditions.
Specification
Mesh
Wire diameter(mm)
Width(mm)
Length(mm)
72×15
0.45×0.55
97-400mm
10/20
120×15
0.35×0.45
97-400mm
10/20
132×17
0.32×0.45
97-400mm
10/20
150×17
0.3×0.45
97-400mm
10/20
152×24
0.27×0.4
97-400mm
10/20
170×17
0.27×0.45
97-400mm
10/20
180×18
0.27×0.45
97-400mm
10/20
200×40
0.17×0.27
97-400mm
10/20
260×40
0.15×0.25
97-400mm
10/20
Product Application

This versatile mesh is ideal for applications demanding strength, fine filtration, and corrosion resistance.
* Petrochemical Industry: High-pressure filter elements in oil and gas pipelines, fuel filters, and refinery processes.

* Chemical Processing: Filtering aggressive chemicals, acids, and solvents under high pressure and temperature.

* Pharmaceutical Industry: Pre-filtration and carrier media in catalyst recovery and processing.

* Mining & Mineral Processing: Dewatering screens, sizing, and filtering slurries and abrasive materials.

* Plastics Industry: Filtering polymer melts in extruder and spinneret systems.

* Aerospace & Hydraulics: Critical filtration in fuel and hydraulic systems.

* Magnetic Shielding & EMI/RFI Shielding: Utilizes the magnetic properties of the steel core while the copper surface aids in conductivity.
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt

Product Features
* Dual-Material Advantage: The steel core provides high tensile strength and durability, while the copper cladding offers
excellent resistance to corrosion and chemical attack.

* High Dirt Holding Capacity: The Dutch Weave structure creates a deep, complex filtration bed that can trap a large amount of contaminant before clogging.

* Exceptional Stability: Resists deformation under high differential pressure and mechanical stress, maintaining consistent filtration performance.

* Smooth Surface: The copper surface reduces friction, prevents material build-up (anti-blinding), and allows for easier cleaning and reuse.

* Magnetic & Conductive: Can be used in applications requiring magnetic properties or electrical conductivity.

* Long Service Life: The robust construction and corrosion resistance significantly extend the mesh's lifespan compared to standard steel meshes.
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt

Product Advantages

* Cost-Effective Performance: Delivers the strength of stainless steel at a more competitive price, with the added benefits of copper's conductivity and corrosion resistance.

* Superior to Single-Layer Meshes: Offers a better balance of strength and corrosion resistance than plain copper or plain steel meshes alone.

* Enhanced Filtration Efficiency: The precise Dutch Weave ensures accurate micron retention, improving the quality of your end product.

* Reduced Downtime: High strength and anti-blinding characteristics lead to longer intervals between maintenance and screen changes.

* Customization: We can tailor the mesh count, wire diameter, width, and length to perfectly fit your machinery and process needs.

* Global Standards: Our products are manufactured to meet international quality standards, ensuring reliability for your critical operations.
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt

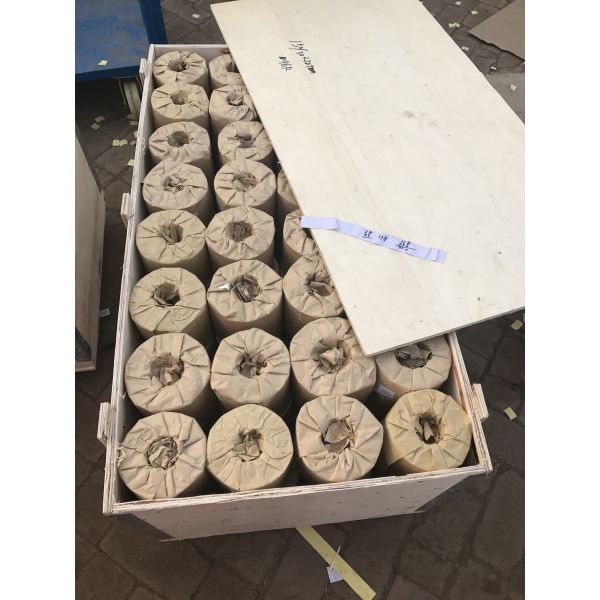

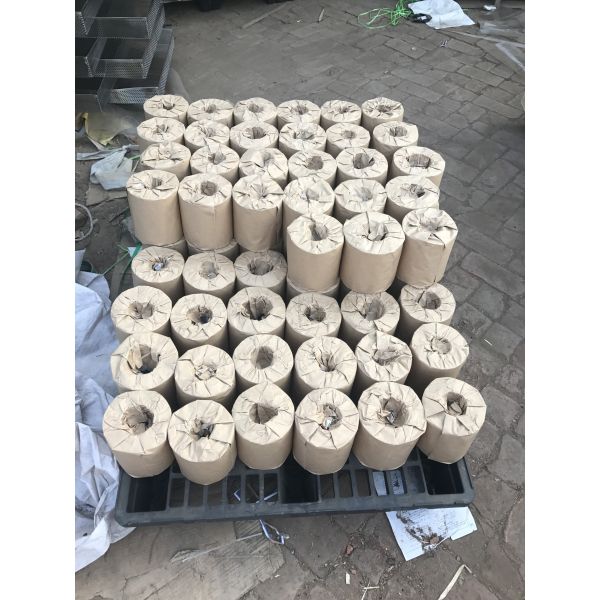

Packing & Delivery
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
paper+(plastic bag)+wooden box,each roll to be wrapped with water proof paper or as requirements
Company Profile
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter BeltAnping County Comesh Filter Co.,Ltd, founded in 1987 , landed in wire mesh hometown Anping county , which is rich in wire mesh material , now Comesh is a leading manufacurer of food grade materials,such as wire mesh tray and basket for drying,baking,Sterilization and dehydrator for food,fruit and vegetables . stainless steel and polyester mesh conveyor belt for food conveyor , polyester and nylon monofilament wire mesh and wire mesh filters for filtering, we also supply kitchen products such as chain mail scrubber for cast iron pans Our products have pass many tests and certificates such as and Clean and food Safty is our aim. Products customization is our advantage.

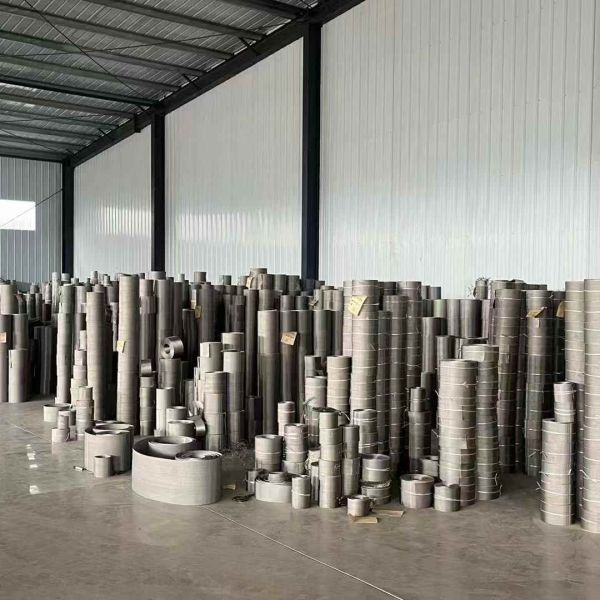

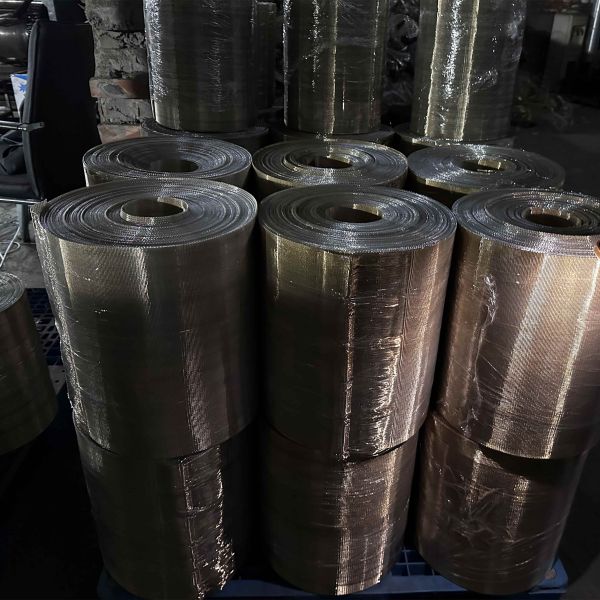

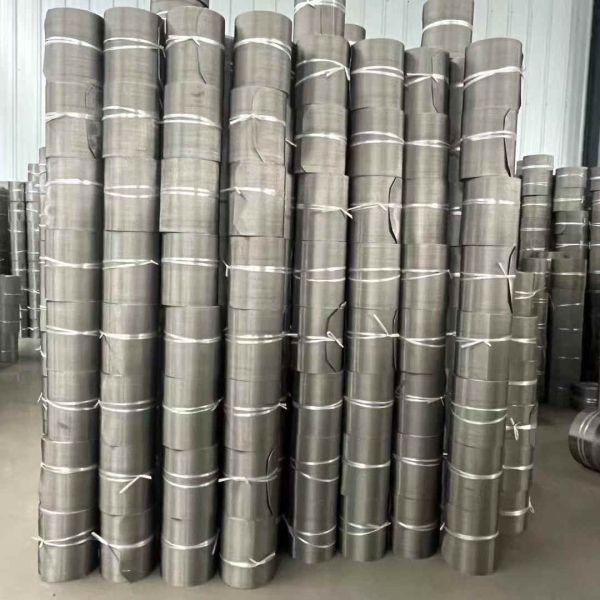

Our Inventory Display
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Copper-Clad Steel/ Stainless Steel Wire Mesh Filter Belt
Why Choose Our Products
We are a professional manufacturer with over 20 years of experience in weaving industrial wire mesh. We provide strict quality control, competitive pricing, reliable logistics, and excellent after-sales service. Contact us today to get a free sample and a competitive quotation for your project!
