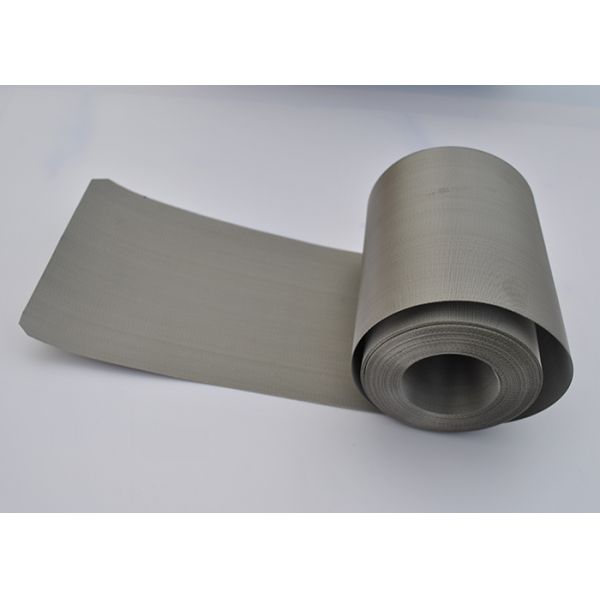

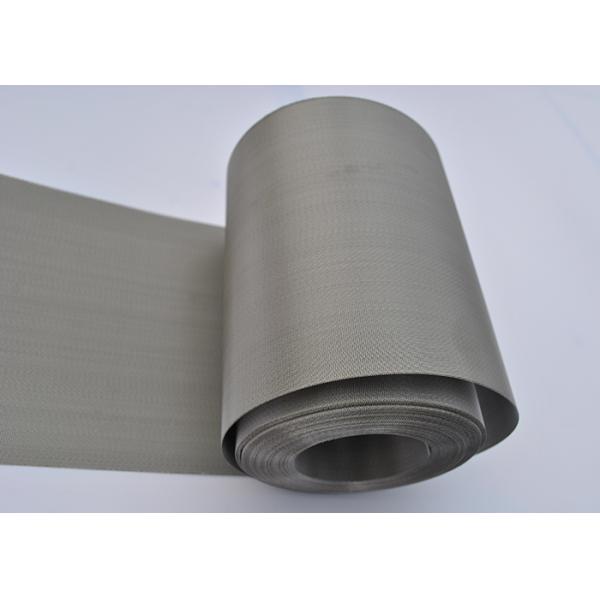

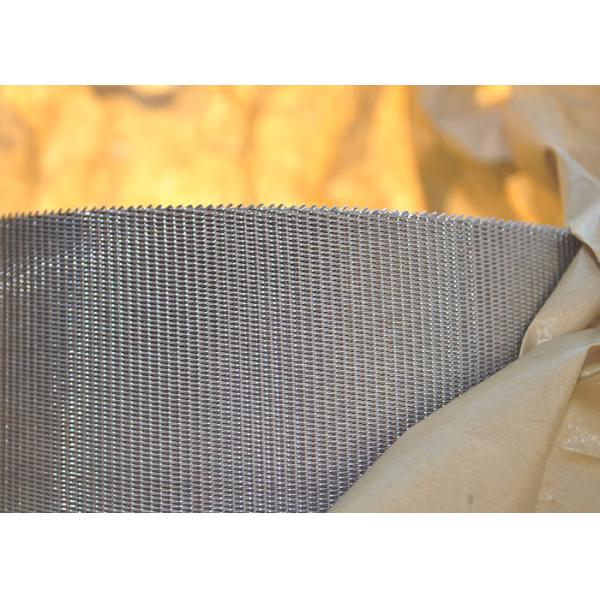

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
Specifications
Brand Name :
COMESH
Model Number :
CM-PE002
Certification :
FDA
Place of Origin :
China
MOQ :
5m
Price :
USD15 to 30 per meter
Payment Terms :
D/A, D/P, T/T, Western Union,
Supply Ability :
5000m per month
Delivery Time :
7 to 10 days
Packaging Details :
paper per roll, and then wooden case outside.
Material :
stainless steel 302 304 316 316L
Mesh count :
72/15 120/15 132/17 150/17 152/24 200/40 260/40
Width :
97mm 127mm 157mm 158mm 400mm
Length :
10-20m per roll
Filtering rate :
300-70micron
Weave :
plain,twill
Description

200/40 Stainless Steel Reverse Dutch Wire Mesh Extruder Filter Screen For Wire Drawing Machine

1. Specification :

Mesh

(warp x weft)

Wire diameter

(warp x weft) mm
72/15 0.45/0.55
120/15 0.35/0.45
132/17 0.32/0.45
150/17 0.3/0.45
152/24 0.27/0.4
200/40 0.17/0.27
260/40 0.15/0.25

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine

2. Description :

1) Material: stainless steel 302 304 316 316L

2) Mesh count per inch:72/15 120/15 132/17 150/17 152/24 200/40 260/40

3) Width: 97mm 127mm 157mm 158mm 400mm

4) Length:10-20m per roll

5) Filtering rate:300-70micron

6) MAX working pressure:380bar

7) Weave:plain,twill

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine

3. Application :

It mainly used in filtering of plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.

4. Packing :

Paper per roll, and then wooden case outside.

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine

5. Delivery :

It can be shipped by sea or air, and we have DDP service, or it also can be shipped by express, such as TNT DHL FEDEX UPS SF EMS,etc.

200/40 Extruder Filter Screen Stainless Steel Reverse Dutch Wire Mesh For Wire Drawing Machine
