Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
Specifications
Brand Name :
COMESH
Model Number :
HE040502
Place of Origin :
China
MOQ :
6 meter
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
300 meters per week
Delivery Time :
in 12- 18 days
Packaging Details :
plywood case
material :
carbon steel galvanized steel,stainless steel
features :
Large open area for excellent air circulation.Durable structure
applications :
Food baking, cooling and freezing,
sample :
supplied for testing
Description

Stainless Steel 304 Eye Link Wire Ring Conveyor Mesh Belts for tunnel freezing dryer baking freezer food processing

Features of honeycomb conveyor belt:

  • Large open area for excellent air circulation.
  • Optional side plates, reinforcing links and flights.
  • Strong edge avoids snagging or catching even there are conveyor protrusions.
  • Suitable for friction or sprocket drive.
  • Anti-slipping and last for years if used well.
  • Durable structure prevents belt from deforming under heavy loads.

Specifications of stainless steel honeycomb flat conveyor belt:

name honeycomb wire mesh conveyor belt
Material 304 stainless steel 316 stainless steel 201 stainless steel
Rod diameter

3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
Spiral picth 12.7 mm to 40 mm.
Rod pitch 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.
Belt width 200 mm to 4000 mm
Belt hole size

1" × 1", 1/2" × 1", 1/2" × 1/2".

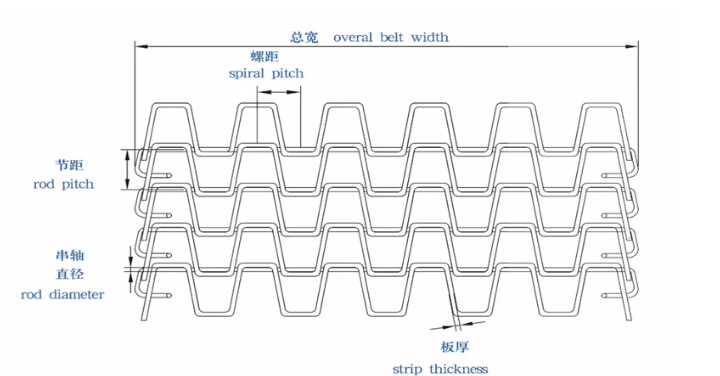

Drawing of stainless steel flat wire conveyor belt honeycomb belt:

Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking

Applications of 1" x1" honeycomb conveyor belt:

  • Baking Freezing
  • Food baking, cooling and freezing, etc.
  • Chemical industry.
  • Agricultural farming and harvesting.
  • Being used in discharging tower at ports.
  • Sorting, sieving and waste handling system.
  • Washing, drying, painting and transferring.
  • Acting as matting and drag mats

Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking

Honeycomb Flat Wire Mesh Conveyor Belt For Food Processing Tunnel Oven Drying Baking
