Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors
Specifications
Brand Name :
KECHENG
Model Number :
KC-M618/920/1224/1628/1632
Certification :
CE certification
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiated
Payment Terms :
L/C,TT
Supply Ability :
200 sets per year
Delivery Time :
65 working days
Packaging Details :
Plastic film packaging and cartons
Condition :
New
Application :
Corrugated carton printing
Type :
Units mobile
Bearings :
HRB,NSK,NTN OR SKF
Speed :
150pcs/min
Gears :
40Cri
Anilox roller :
Steel
Power :
380v,50Hz
Transfer :
Roller transfer
Ink :
Water Ink
Description

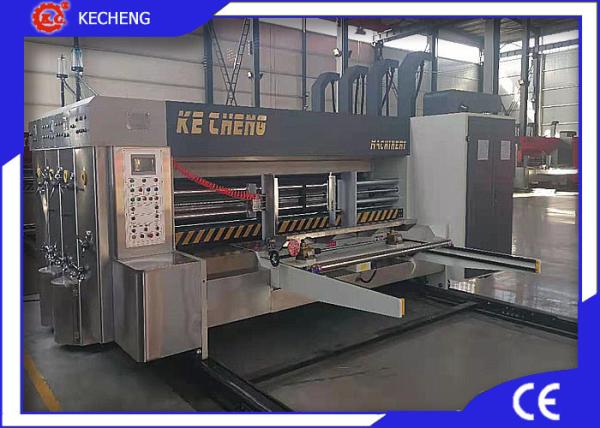

Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine 2 Colors

• Design according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.
• All of drive rollers are made of high steel, hard chrome plated the surface with grinded.
• Drive gears adopt high quality steel with heat treatment with grinded.
• The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
• Engineer oil automatic balance device, keep the oil level equal in each unit.
• Phase adopts electric digital adjusting with “automatic zero return” and ‘memories “function (options: PLC control touch screen)
• Feeding type use lead edge or kick feeding.

Lead Edge Feeding Corrugated Carton Printer Slotter Die Cutter Machine For 2 Colors

Technologic parameter

Model KC-M920 KC-M1224 KC-M1628
Max feeding size 900*2100mm 1200*2500mm 1600*2900mm
Min feeding size 300*650mm 400*720mm 450*750mm
Max printing size 880*1000mm 1150*2400mm 1550*2800mm
Skip feeding size 1100*2100mm 1400*2500mm 1800*2900mm
Max speed 150pcs/min 120pcs/min 90pcs/min
Registering +/-0.5mm +/-0.5mm +/-0.5mm
Min slotting gap 250*70*250*70m 270*80*260*80mm 280*100*280*100mm
Slotting precise +/-1.5mm +/-1.5mm +/-1.5mm
Die cutting precise +/-1.5mm +/-1.5mm +/-1.5mm

FEATURES

Feeder Unit
► Continuous or skip feeding is available with counter;
► Main motor is protected from starting up when units are not fully closed and locked.
► Motorized backstop forward /backward and up/down position for easy and quick adjustment;
► Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;
► Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size
cardboard.

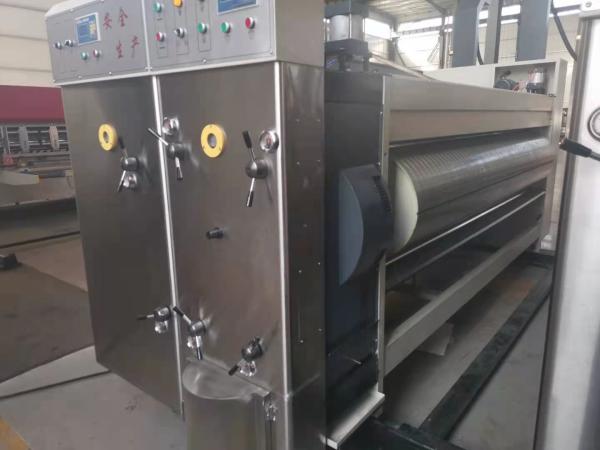

Printing Unit
► Quick set and self locking pull collars.
► Automatic resetting after cleaning the printer.
► anilox roller LPI according to customer requirement.
► Transverse register is also digital controlled by motor and PLC ±10mm.
► Cleaning function can be automatically switched to ensure the ink recycling thoroughly.
► Pneumatic clutch is adopted on the anilox roll
► Mounting roller with left and right both of side locking device,let the mounting position more accurately.

Slotter unit
► Slotting mechanism
Slotting knife width 7.0mm. The alloy steel material through heat treatment grinding gear type slotting cutter, hardness and toughness are good.The double edge trimming knife, knife edge sharp, high precision.
Slotting knife (carton height) synchronous adjustment, reduce adjustment time improve work efficiency.
The slotting pedestal horizontal position control by electric button(Carton width adjustment).

Die Cutter Unit
► Anvil cover is Depride made from Germany
► Side to side oscillation of anvil drum(45mm)
► Die-cutting register is digitally controlled by motor and Mircro Computer
► Anvil trimmer to keep surface of the anvil covers flat and smooth.
► The die drum’s transverse movement can prolong the service life of anvil cover.
► The die-cut cylinder lateral register is digitally controlled by motor and PLC,rang about±10mm
