250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
250pcs/Min Bottom Printing Flexo Folder Gluer Inline
Specifications
Brand Name :
KECHENG
Model Number :
KC-PG920/1224/1628
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiated
Payment Terms :
TT,L/C
Supply Ability :
40 sets/year
Delivery Time :
100-120 working days
Packaging Details :
film packaging and carton
Name :
Flexo Bottom Printing Printer Gluer Inline
Speed :
180-250pcs/min
Cardboard :
3/5 layer
Gears :
20CrMnTi, HRC 55-60,6 class precise
Usage :
Carton Making
Power :
380V,50HZ
Description

Automatic High Speed Bottom Printing Flexo Folder Gluer Inline

◆ High precision transfer structure with ceramic vacuum transfer wheel,good registration accuracy.

◆ Suitable for diversified kinds of size of carton making.

◆ Finished carton fishtail +/-1MM

◆ Creasing-slotting unit, prevent creasing line from bursting, better folding.

◆ Counter ejector with down stacking.

◆ Choose international brand electric components and transfer bearings,pass CE certification

Technologic parameter

Model KC-PG920 KC-PG1224 KC-PG1628
Printing type Bottom printing Bottom printing Bottom printing
Max working speed 250pcs/min 200pcs/min 180pcs/min
Max feeding size 900*2100mm 1200*2500mm 1600*2900mm
Min feeding size 300*650mm 350*720mm 420*750mm
Max printing size 880*2000mm 1150*2400mm 1550*2800mm
Cardboard thickness 2-11mm 2-11mm 2-11mm
Register +/-0.5mm +/-0.5mm +/-0.5mm
Slotting precise +/-1.5mm +/-1.5mm +/-1.5mm
Die cutting precise +/-1.5mm +/-1.5mm +/-1.5mm
Max slotting depth 210mm 285mm 385mm
Slotting interval 260*75*260*75mm 270*85*270*85mm 285*100*285*100mm
Bundling speed 15-20bundles/min 15-20bundles/min 15-20bundles/min

250pcs/Min Bottom Printing Flexo Folder Gluer Inline

Features

BOTTOM PRINTING PRINTER

250pcs/Min Bottom Printing Flexo Folder Gluer Inline 250pcs/Min Bottom Printing Flexo Folder Gluer Inline

250pcs/Min Bottom Printing Flexo Folder Gluer Inline 250pcs/Min Bottom Printing Flexo Folder Gluer Inline

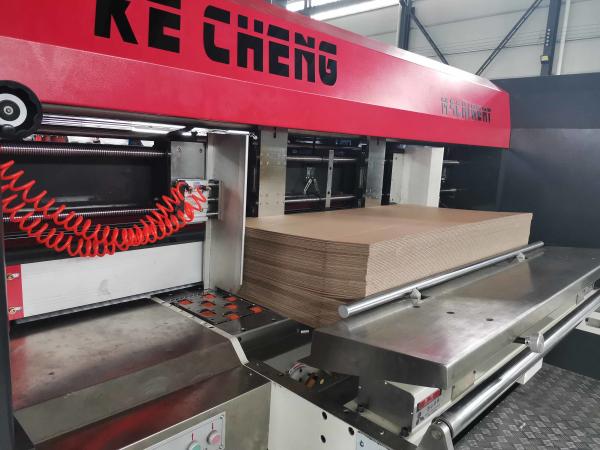

FEEDING SECTION

  • ► Lead Edge Feeder,4 Shaft Feed Box
    ► Motorized Side Guides, Feed Gates, Backstop
    ► Sheet Vacuum
    ► Dual Durometer Rubber Feed Roll
    ► Motorized Machine Open-Close
    ► Motorized Pull Roll Nip

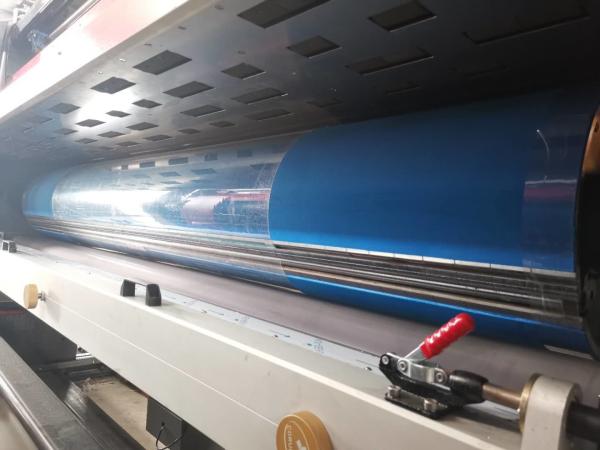

PRINTING SECTION

  • ► Pull Rolls with Motorized Pull Collar Gap and Lateral Adjust
    ► Dynamic Balanced Print Cylinders
    ► Ink Loss Sensor
    ► Motorized Print Plate to Anilox Roll Gap Adjust
    ► Motorized Board Caliper Adjust
    ► Vacuum Transfer,Doctor Blade Chamber

SLOTTER CREASER SECTION

  • ► Motorized Board Caliper Adjust-Pre-Crease, Score, Trail and Leading Slot Heads
    ► Motorized Lateral Head Adjust
    ► Moveable Center Score and Slotting Heads
    ► Chrome Plated Scoring & Slotting Shafts
    ► Steel to Steel Glue Tab
    ► Solid Universal Shafts with Gearboxes Synchronize Lower and Upper Head Movement on Linear Bearings

DIE CUTTER SECTION

  • ►Automatic return to zero position.
  • ►Pneumatic unit locking system, easy to operate.
  • ►Automatic dust remover belt is attached.
  • ►With auto-restore and auto-compensation function, can effectively extend the using life of rubber.
  • ►Motorized of Die roll register by touch screen display
  • ►Motorized of Die roll side control by touch screen display
  • ►Motorized of Anvil roll clearance by touch screen display
  • ►Motorized of Pull roll nip control by touch screen display

FOLDER GLUER

250pcs/Min Bottom Printing Flexo Folder Gluer Inline 250pcs/Min Bottom Printing Flexo Folder Gluer Inline

FOLDER GLUER

  • ► Top Folding Belts with Independent Variable Speed Control
    ► Wide Lower Belts
    ► Motorized Belt Gap Adjust
    ► Motorized Glue System Positioning
    ► Center Support Bar in Middle
    ► Folding Guide and Support Bars

COUNTER EJECTOR

  • ► Motorized Squaring Plate, Back Stop and Lateral Adjust
    ► Hydraulic Operated Up Stacking Elevator

BUNDLER(OPTION)

250pcs/Min Bottom Printing Flexo Folder Gluer Inline

► Connect with folder gluer

►Can move in lateral direction

► Pneumatic flapping structure make the carton tidy and easy to bundle

►Special string mouth design, makes the string output smooth and never broken

► Easy to maintain and operate
