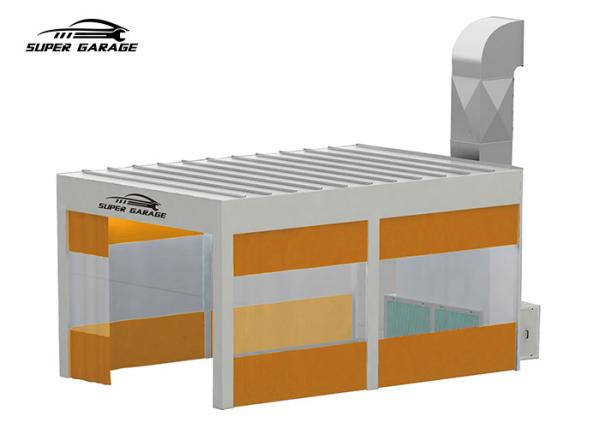

Semi Down Draft Curtain Type Paint Prep Station Booth SG-PA7300
Semi Down Draft Curtain Type Paint Prep Station Booth SG-PA7300
Specifications
Brand Name :
SG
Model Number :
PA7300
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000 Units per month
Delivery Time :
30 Days
Packaging Details :
Carton+Pollywood
Product Name :
Prep Station Paint Booth
External Dimension :
7.2x4.0x3.1m
Internal Dimension :
6.0×4.0×2.65m
Cabinet Size :
No
Total Power :
6.5 Kw
Working Voltage :
220/380V/50/60Hz/3Ph
Air Circulation :
Simi-Down Draft
Air Capacity :
15000m³/h
Roof Filter :
Italian Technology,Dust Particles Catching Capability＞5μm
Ceiling Light :
24x18W LED Light Tubes
Side Light :
For Option
Wall Panel :
50mm EPS
Curtains :
PVC Soft Curtain
Brand :
SG
Description

Exhaust Fan Prepareation Room With Curtain Type Paint Prep Station SG-PA7300

Technical Data:

MODEL SG-PA7300
External Dimension 7.2x4.0x3.1
Internal Dimension 6.0×4.0×2.65
Cabinet Size(mm) 　
Total Power(Kw) 6.5
Cabin System Roof Panel Galvanized steel
Wall Panel 50mm EPS
Curtains PVC soft curtain
Air Circulation System Circulation Way Air is Exhausted from Back
Outlet Ventilator 1x5.5Kw
Air Capacity 15000m3/h
Purification system Roof Filter Italian Technology,Dust Particles Catching Capability＞5μm
Exhaust Filter Fiberglass
Lighting System Ceiling Light 24x18W LED Light Tubes
Control System 　 Multi-protection Circuit. Working Switch, Light Witch, Emergency Stop, Breakdown Alarm.
