IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE;ISO
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Application :
Water treatment, water pump, etc.
Power supply :
12~36VDC
Accuracy :
0.5%FS
Output signal :
4~20mA
Process connection :
G1/4, R1/4, NPT 1/4, etc.
Electrical connection :
Cable Connection
Overload pressure :
200%FS
Operating temperature :
-40~85℃
Warranty :
One Year
Port :
Shenzhen, Guangzhou, Xiamen, or other ports
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Description
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
Product Description

The pressure transmitter is specially designed according to the requirement of water treatment industry, it is widely used in variable frequency pump, complete water supply and air conditioning equipment, etc. Professional waterproof hammer impact, high electrical performance and long-term stability make it the first choice for similar industries, and can directly replace similar products such as Atlas, MSI, HUBA.


Advanced chip for signal conditioning with high integration bridge pressure sensor that meets AEC-Q100 standard, making the pressure transmitter a cost-effective product. With functions of 24-bit ADC for input voltage detection; High precision 1X~256X variable gain meter amplification; Up to 8 times the digital gain; Low temperature drift 16-bit DAC; Built-in universal sensor based on MCU calibration logic; EEPROM multi-programmable.

Features:

  • Advanced diffused silicon sensor core, cost-effective
  • Multiple pressure ranges and electrical outputs
  • Compact structure
  • High electrical performance
  • Overall mold plug for better waterproof performance
  • Long-term stability
Technical Parameter
Media Oil (mineral, screw compressor oil), water, air, etc.
Power Supply 12VDC~36VDC
Accuracy 0.2%FS - 0.5%FS
Pressure Range 0 - 2.5MPa
House Material Stainless steel
Output 4 - 20mA
Temperature Drift ±0.02% FS/K
Operating Temperature -40 ~ 85℃ / -40 ~ 185℉
Overload Pressure 2*FSO
Electrical Connection Aviation plug
Process Connection G1/4, NPT1/4, R1/4, etc.
Response Time <1ms
Protection Level IP68
Weight 160g
Certificates CE, ISO
Warranty 12 Months
Detailed Images

Wiring:

IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor

IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor

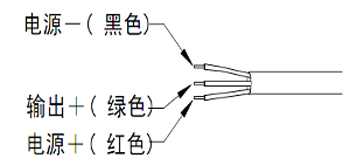

Electrical Connection:

IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor

Output 4-20mA 0-10VDC, 0.5-4.5VDC
Power supply+ Red Red

Current Output/Power supply- (Two-wire)

 Black Black

Current Output/Voltage output (Three-wire)

 Green
IP68 Protection Level 36VDC 2.5MPa Waterproof Pressure Sensor
