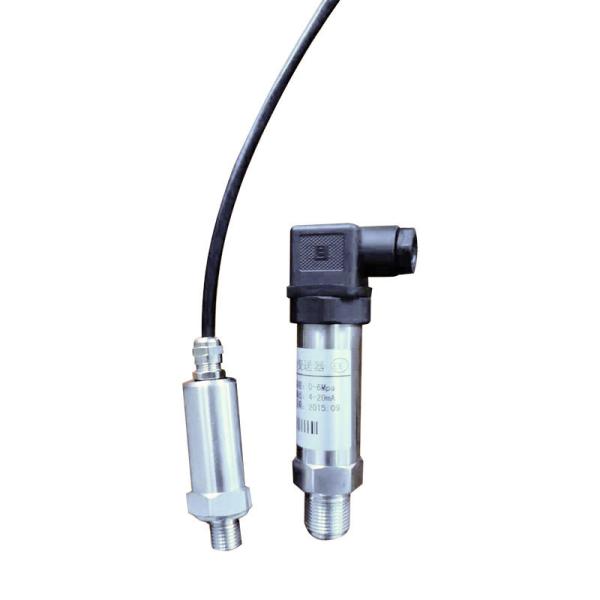

60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE;ISO
Supply Ability :
20,000 pcs per month
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Stardard Export Packing By carton
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Product Name :
miniature pressure sensor
Output signal :
4~20mA
Pressure range :
0~60MPa
Material :
die-cast aluminum
Pressure connections :
M20*1.5
Display :
Red LEDs
Stability :
0.2%/year
Application :
Water Oil Air Pressure Measurement
Description

60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor

Product Description

4-20Ma High Pneumatic Differential miniature pressure sensor Absolute pressure transmitter Transducer

Diffused Silicon Pressure Sensor LED LCD Display 4-20mA Explosion-Proof Pressure Transmitter

Universal pressure transmitter adopt high performance pressure sensor with high precision,accurate digital intelligent circuit board.Products is stable and reliable,with full welding structure,fiber making,shape choiceness beauty.

Technical Parameter

Model Pressure Transmitter
Pressure Range -100KPa-0-60MPa
Pressure Type Gauge pressure; Absolute pressure; Negative pressure
Pressure Sensor Diffused silicon pressure sensor
Diaphragm 304/316L Stainless Steel
Output Signal Two Wire 4~20mA
Power Supply 24VDC 10~30VDC
Accuracy ≤ 0.1%F.S,0.25%F.S,0.5%F.S
Working Temperature -20℃ ~85℃
Compensated Temperature 0℃ ~70℃
Storage Temperature -20℃ ~85℃
Long Stability Standard: 0.2%FS/year
Electrical Connection Two cable entry M20x1.5
Pressure Connection M20*1.5
Display With display or not (optional)
Housing Material Cast aluminium alloy,2088
Process Material 316 Stainless Steel
Response Time ≤10ms
Protection Level IP65
Explosion Protected Type NEPSI : Ex dⅡC T6
Cable length Cable Length Customization
Remarks Special applications request by Customization

60MPa 24VDC High Pneumatic Differential Mini Pressure Sensor
