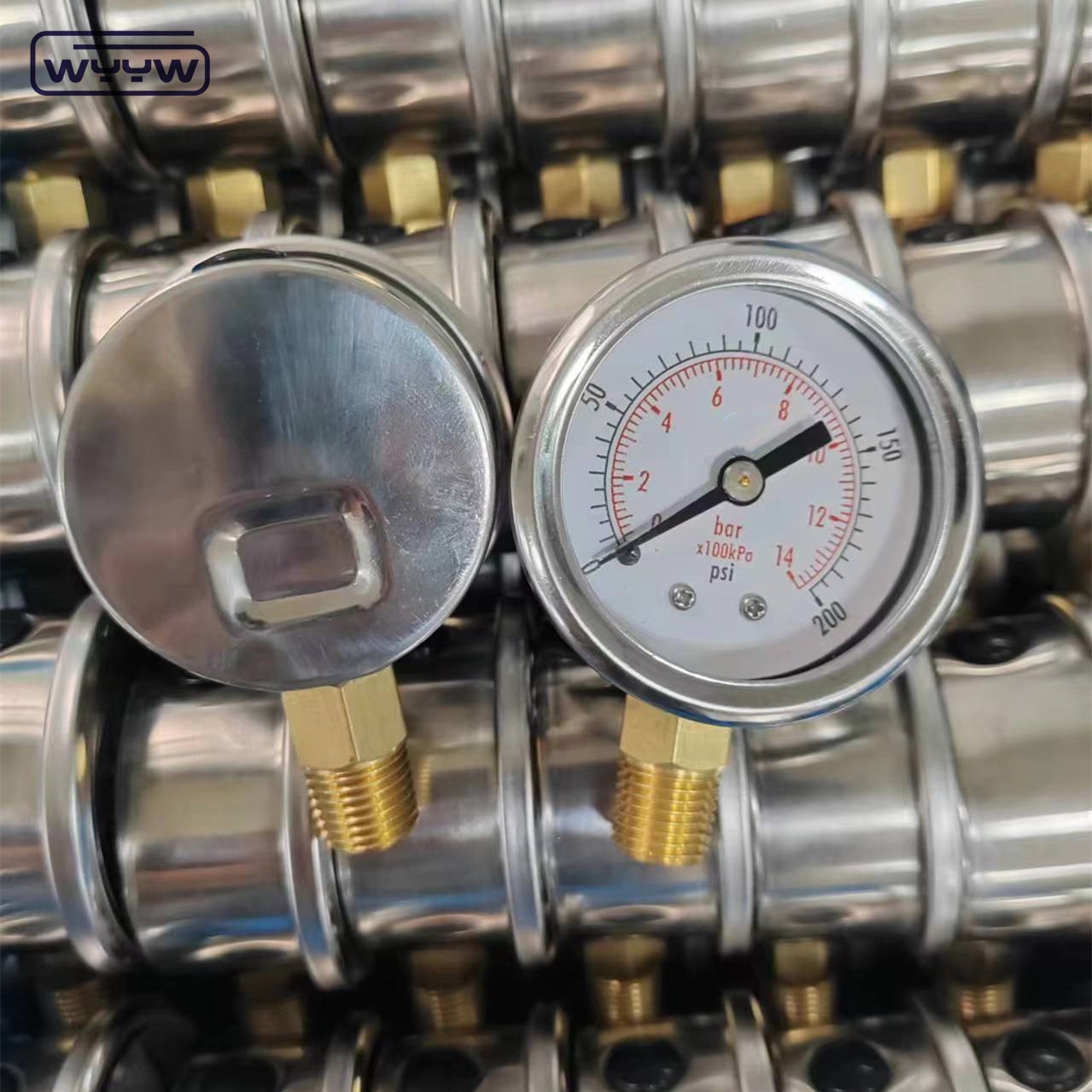

Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Size :
2"(50mm)
Material :
stainless steel
Pressure range :
0~100Mpa,bar,mbar,etc
Oil :
glycerine or silicone
ADVANTAGES :
Moisture-proof,Wear resistant,Eco-friendly,High-durable
Brand Name :
WYYW
Model Number :
YTN-50
Certification :
CE & ISO9001
Place of Origin :
Qingdao,China
MOQ :
200PCS
Price :
Depends on total quantity
Payment Terms :
TT,LC.Alipay.Western Union
Supply Ability :
30-50k per month
Delivery Time :
30days
Packaging Details :
Inner plastic bag,export carton out side.Pallet optional.
Description
Glyceine Pressure Gauge 50mm Bottom 0-14Bar/0-200Psi
Liquid Filled Pressure Gauge 50mm Bottom 1/4" NPT OEM Pressure Meter
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Product Specifications
Specification Details
Name Glycerine pressure gauge
Dial Size 50mm (custom sizes available)
Case Stainless steel
Pressure Units Mpa, bar, psi, kg/cm² (optional)
Ring Gasket under the window
Movement brass
Socket brass
Bourdon Tube Phosphor Bronze
Dial Plate and Pointer Aluminum
Window Plastic
Connection Sizes 1/8" for 1.5"; 1/4" for 2", 2.5" case; 1/2" for 4", 6"
Connection Threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom
Accuracy 1.5"(40mm), 2"(50mm), 2.5"(63mm) - 2.5%
4"(100mm) and 6"(150mm) - 1.6%
Pressure Limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Product Applications
  • Exposure to harsh outdoor environments and extreme operational conditions
  • Applications involving significant vibrations and pressure fluctuations
  • Equipment used in hydraulics, pressure washing, oil extraction, pumps, compressors, and various process systems
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Company Information
Qingdao DaZeFengYang is a professional manufacturer of pressure gauges and hardware tools, and a proud member of the China National Hardware Association. With the support of our highly skilled technical team, we strive to ensure that our pressure gauges meet both GB/T (Chinese Standards) and international quality standards. We are certified with ISO9001 and CE for all our products, which include pressure gauges, gas regulators, cutting torches, welding torches, and more. Over the years, we have developed an impressive range of both specialized and standard products, all offered at competitive prices and with prompt delivery. Our efficient sales and after-sales service make us an attractive option for customers worldwide, particularly distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia. We warmly invite friends and partners to reach out to us via phone or email, or to visit our company. We look forward to building a successful future together!
Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi Stainless Steel 50mm Glycerine Filled Liquid Filled Pressure Gauge with Bottom Mount 14Bar/200Psi
Advantages
  • Advanced Equipment and Professional Technology: We are committed to offering high-quality gauges with advanced equipment and professional technology for customers worldwide.
  • Best After-sales Service: Our company provides excellent after-sale service with the goal of establishing long-term trade cooperation.
  • Serious Inspection Procedure with Excellent Quality: All our pressure gauges undergo 100% inspection and we have passed ISO9001 and UL certification.
  • Quick Delivery: We provide timely delivery to always satisfy customer needs.
  • Convenient Purchase and Cost Savings: As a skilled manufacturer, we offer convenient purchasing with high-quality products at reasonable prices.
  • OEM Orders: We have extensive experience with OEM orders from renowned companies in USA and European markets.
