2.5" 60MPa (600 Bar) Helical Bourdon Gauge | High Pressure Radiator & Industrial Use

Product Overview: High-Pressure Reliability in a Compact Gauge

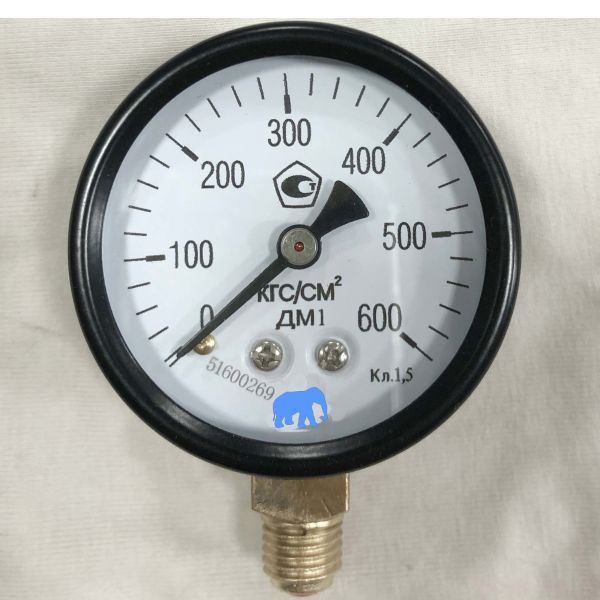

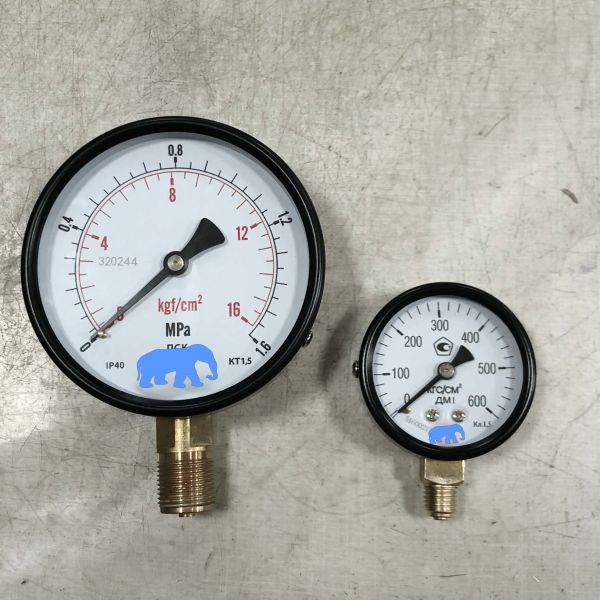

Our 2.5-inch (60mm) High-Pressure Radial Gauge is engineered to deliver unwavering performance in the most demanding applications. With an impressive range of 0-60MPa (equivalent to 600 bar), this mechanical gauge utilizes a robust helical Bourdon tube mechanism housed in a durable black steel case with a brass connection. It stands as a quintessential bourdon meter—offering exceptional stability, durability, and affordability for monitoring extreme pressures in systems such as hydraulic test benches, compressors, and specialized equipment like radiator pressure gauge applications.

Key Features & Benefits

• Extreme Pressure Capacity: Specifically designed as a pressure gauge 600 bar solution, reliably measuring up to 60MPa for high-pressure hydraulic systems, water jetting, and gas compression.

• Helical Bourdon Tube Technology: Unlike standard C-tubes, the helical Bourdon type provides greater movement and durability under very high pressure, ensuring precise readings and long-term mechanical stability. This is the core of a true high-performance bourdon meter.

• Robust Industrial Construction: The black steel case offers protection and durability, while the brass connection ensures a reliable, corrosion-resistant seal for the high-pressure medium.

• Compact & Versatile: The 2.5-inch (60mm) radial pressure gauge design is ideal for panels and equipment where space is limited but performance cannot be compromised.

• Mechanical Simplicity & Value: As a purely mechanical device, it requires no external power, offering a stable, maintenance-free, and affordable solution for continuous high-pressure monitoring.

Technical Specifications

Why the Helical Bourdon Design is Critical for 600 Bar

For a pressure gauge 600 bar, a standard C-shaped Bourdon tube can be overstressed. The helical bourdon type provides a superior solution:

• Enhanced Safety & Longevity: The coiled shape distributes stress more evenly, allowing the tube to safely withstand extreme pressures and pressure cycling.

• Greater Pointer Movement: Produces more rotation for the same pressure input, allowing for a clearer, more readable scale on a compact 2.5" dial.

• Proven Reliability: This design is the industry standard for dependable high-pressure measurement, forming the heart of a trustworthy bourdon meter.

Typical Applications

This high-pressure gauge is essential for:

• High-Pressure Hydraulic Systems (Pumps, Presses, Cylinders)

• Industrial & Automotive Testing: Serving as a critical radiator pressure gauge for testing coolant system pressure caps and radiator durability.

• Water Blasting & Cutting Equipment

• Air & Gas Compressors

• Process Control in oil & gas and manufacturing

Ordering & Technical Support

For extreme pressure applications, correct selection and installation are vital. Contact us for support with threading, calibration, or specific application needs.

For expert advice on high-pressure gauges and radiator testing:
