Specifications
Description

Your Complete Guide to 2", 4", and 6" Economy Pressure Gauges

Finding the right pressure gauge for your application is crucial. This guide details our range of reliable and cost-effective Economy Pressure Gauges in the three most popular sizes: 2-inch, 4-inch, and 6-inch. Below, you can explore detailed features, specifications, and applications for each size, along with a direct comparison to help you make the perfect choice for your needs.

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


Features of Our 2” Economy Pressure Gauge

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications

The 2-inch economy pressure gauge is the compact solution for applications where space is at a premium. Don't let its size fool you—it's built for essential monitoring.

  • Space-Saving Design: Ideal for panels, tight equipment layouts, and portable units where larger gauges would not fit.

  • Core Functionality: Provides accurate, at-a-glance pressure readings for routine checks.

  • Durable Construction: Features a stainless steel case or robust plastic case (depending on model) and a polycarbonate or safety glass lens to withstand typical shop floor environments.

  • Common Ranges: Typically available in lower pressure ranges (e.g., 0-100 PSI, 0-200 PSI), perfect for air compressors, sprayers, and small pneumatic systems.

  • Economy Focus: Delivers the essential function of pressure measurement at the most budget-friendly point.


Applications for 4” Economy Pressure Gauges

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


The 4-inch gauge strikes the perfect balance between readability and versatility, making it the most popular choice for a wide array of industrial and commercial applications.

  • Enhanced Readability: The larger dial allows for finer scale divisions, enabling easier and more precise readings from a moderate distance.

  • General-Purpose Workhorse: The go-to size for standard machinery, process lines, and system monitoring.

  • Ideal Applications:

    • Industrial air compressors and pneumatic controls

    • Pump and hydraulic system monitoring

    • HVAC/R systems (chillers, refrigerant lines)

    • Water pressure and filtration systems

    • Standard process equipment in manufacturing

  • Wider Range Availability: Offered in a broad spectrum of pressure ranges to suit various media and system requirements.


Applications for 4” Economy Pressure Gauges

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


The 4-inch gauge strikes the perfect balance between readability and versatility, making it the most popular choice for a wide array of industrial and commercial applications.

  • Enhanced Readability: The larger dial allows for finer scale divisions, enabling easier and more precise readings from a moderate distance.

  • General-Purpose Workhorse: The go-to size for standard machinery, process lines, and system monitoring.

  • Ideal Applications:

    • Industrial air compressors and pneumatic controls

    • Pump and hydraulic system monitoring

    • HVAC/R systems (chillers, refrigerant lines)

    • Water pressure and filtration systems

    • Standard process equipment in manufacturing

  • Wider Range Availability: Offered in a broad spectrum of pressure ranges to suit various media and system requirements.

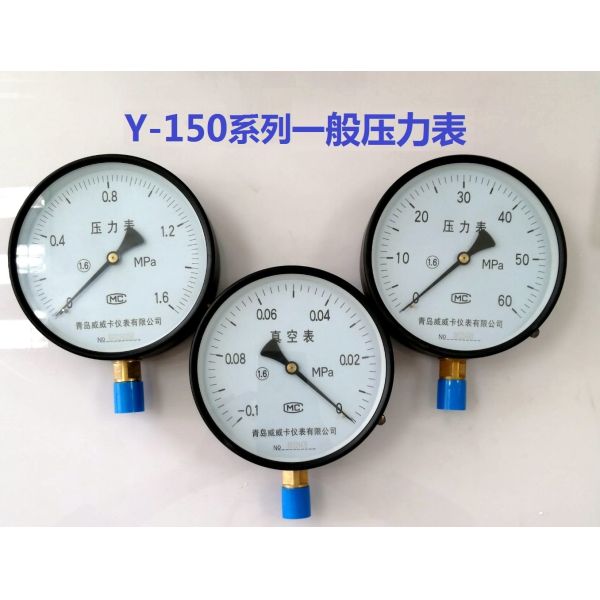

Technical Specifications of 6” Economy Pressure Gauges

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


For maximum clarity and precision in demanding environments, the 6-inch economy pressure gauge is the optimal solution. Its primary advantage is superior readability.

  • Maximum Readability: The large dial face allows for highly detailed scales, minimizing parallax error and enabling accurate readings from several feet away or in low-light conditions.

  • High-Visibility Monitoring: Designed for control panels, system dashboards, and critical points where operators need to monitor pressure from a distance.


Detailed Specifications Table:

Feature Specification
Dial Size 6 inches (150 mm)
Case Material Stainless Steel or Black steel
Window Safety Glass or Polycarbonate
Connection 1/4" NPT Bottom or Lower Back Mount (Standard)
Accuracy 1-2.5% of Full Scale (Typical for Economy Grade)
Pressure Ranges Wide variety, from vacuum to high pressure (e.g., 0-1000 PSI)
Movement Bourdon Tube (Brass or Stainless Steel)
Dial White with black graduations; some models with color-coded zones


Comparison: 2” vs 4” vs 6” Gauges

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


Use this quick-reference table to see the key differences at a glance and identify the best gauge for your specific need.

Feature 2" Economy Gauge 4" Economy Gauge 6" Economy Gauge
Primary Advantage Compact Size, Lowest Cost Best Balance of Readability & Value Maximum Readability & Precision
Best For Tight spaces, portable equipment, cost-sensitive projects Most general applications, machinery, process lines Control panels, remote monitoring, critical readings
Readability Good for close-up checks Very Good for standard distances Excellent for long distances
Common Mounting Panel or direct Lower back/bottom Lower back or surface



How to Choose: Selection Guide & Final Recommendations

2-inch 4-inch 6-inch Economy Pressure Gauge for Industrial and Commercial Applications


  • Choose a 2” Gauge if: Your priority is fitting into a very small space or you need the most economical option for a non-critical, basic monitoring task on portable equipment.

  • Choose a 4” Gauge if: You need a reliable, all-purpose gauge for standard industrial or commercial equipment. This is our top-recommended size for most users, offering the best overall value.

  • Choose a 6” Gauge if: The gauge will be mounted on a panel or viewed from several feet away, or if the application requires precise, at-a-glance readings for operational or safety reasons.

Still unsure? Contact our technical support team with your specific application, pressure media, and required range. We’ll help you select the perfect Economy Pressure Gauge in the right size.
