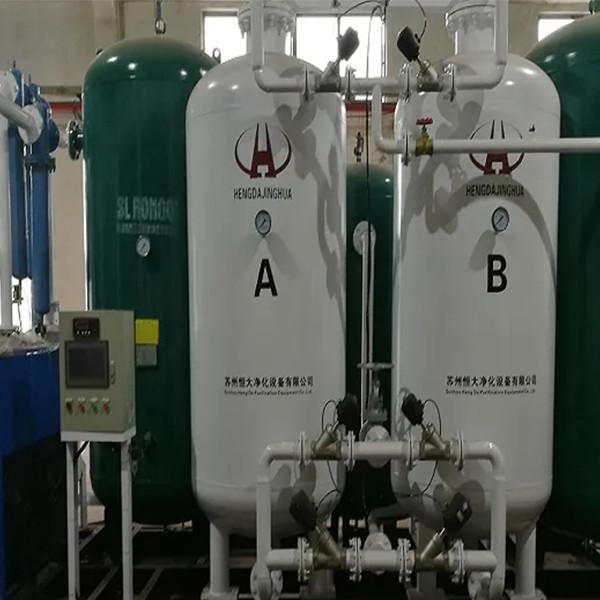

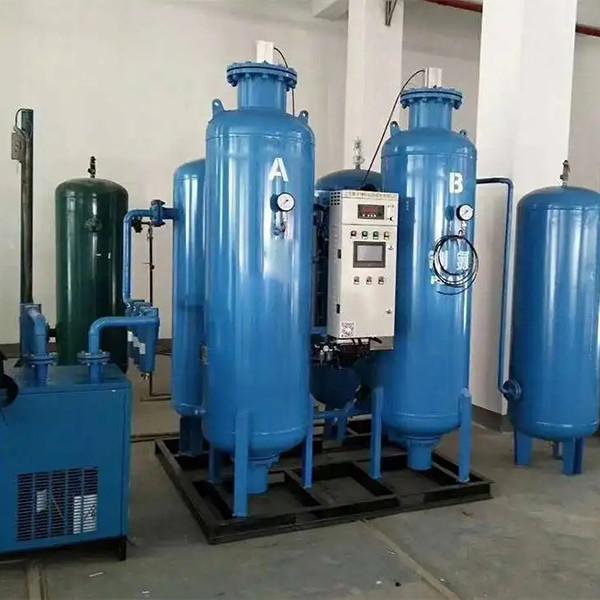

50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging
50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging
50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging
50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging
Specifications
Brand Name :
MKIMM
Model Number :
MKIMM
Certification :
ISO
Place of Origin :
henan
MOQ :
1
Price :
bargain
Payment Terms :
T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability :
25 every month
Delivery Time :
15days
Packaging Details :
wooden box
Usage: :
Nitrogen
Voltage: :
220V/380V
Warranty: :
1 Year
N2 Capacity: :
1~3000 Nm3/h
Dew Point: :
≤-40℃
Production Rate: :
500sets/year
Power: :
5-200KW
After-sales Service Provided: :
Engineers available to service machinery overseas
Description

PSA Nitrogen Generator For Food Packaging

Description

PSA nitrogen generator is a high-tech product involving machinery, electricity and appearance, and the stability of the equipment is particularly important in long-term use. The valve must have the following functions: good raw material function and absolutely no air leakage.

Parameter

Model N2 Purity % N2 Capacity Nm³/h Air Consumption m³/min Dimensions mm (L×W×H)
97/40 99 40 1.8 1900×1400×1800
99.5 2 2000×1450×1900
99.9 2.8 2100×1500×2050
99.99 3.7 2200×1500×2350
99.999 6 2600×1800×2550
97/50 99 50 2.1 2000×1500×1900
99.5 2.5 2050×1450×1850
99.9 3.3 2100×1500×2250
99.99 4.7 2500×1700×2500
99.999 7.5 2700×1800×2600
97/80 99 80 3.7 2100×1500×2000
99.5 4 2100×1500×2150
99.9 5.5 2500×1700×2550
99.99 7.5 2700×1800×2600
99.999 12 3200×2200×2800
97/100 99 100 4.6 2100×1500×2150
99.5 5 2200×1500×2350
99.9 7 2650×1800×2700
99.99 9.3 2750×1850×2750
99.999 15 3350×2500×2800

PSA nitrogen generator process flow

The ambient air is compressed and purified (removing oil, water, dust, etc. in the compressed air) and then enters the adsorption tower equipped with carbon molecular sieve. A large amount of nitrogen is enriched in the gas phase. It enters the nitrogen buffer tank through the upper part of the adsorption tower, while the oxygen molecules remain in its molecular sieve. The entire adsorption process is carried out under pressure. When the adsorption pressure drops to normal pressure, the adsorbed oxygen molecules escape from the carbon molecular sieve, enter the muffler through the lower part of the tower and then discharge the atmosphere, and the molecular sieve is regenerated at the same time. Usually, the PSA nitrogen generator adopts double adsorption in parallel to alternately carry out adsorption nitrogen production, desorption regeneration, separation of oxygen and nitrogen, and continuous gas supply. The above process is automatically controlled by the computer control system.

50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging

50nm3 PSA Nitrogen Generator 100nm3 For Food Packaging
