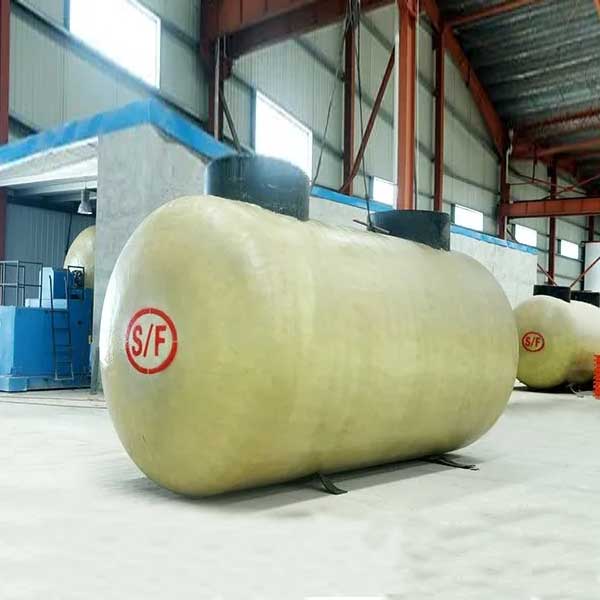

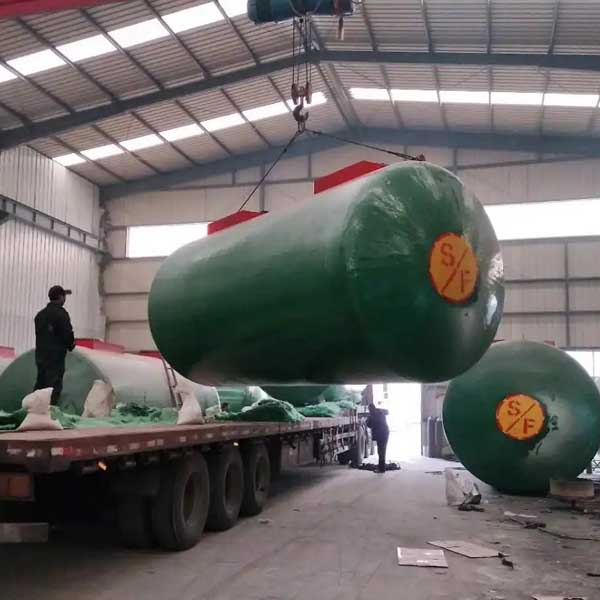

Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer
Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer
Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer
Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer
Specifications
Brand Name :
Gnee
Certification :
ISO
Place of Origin :
henan
MOQ :
1
Price :
bargain
Payment Terms :
T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability :
25 every month
Delivery Time :
15days
Packaging Details :
wooden box
Marketing Type :
Ordinary Product
Warranty of core components: :
Not Available
Capacity: :
30000~50000L
Warranty: :
Unavailable
tank thickness :
6mm
Manhole number :
2pcs
manhole inner diameter :
630mm
under tank plate thickness :
5mm
After Warranty Service :
Online support
Core Components :
Pressure vessel
Description

Customized Underground Fiberglass Steel Sf Double Layer Fuel Oil Tank

Description

The Customized Underground Fiberglass Steel Sf Double Layer Fuel Oil Tank is a container for storing oil products, and it is the main equipment of the oil depot. Oil storage tanks can be divided into metal oil tanks and non-metallic oil tanks according to their materials; underground oil tanks, semi-underground oil tanks and above-ground oil tanks according to their location; vertical and horizontal according to installation form; according to shape Cylindrical, Box and Spherical

Parameter

diesel petrol srorage tank specifications

Volume

(m3)

 Nominal parameter(mm) Cylinder length(mm) Thickness(mm)

Weight

(KG)
Head/Cylinder
5(4.93) 1600 1870 5/6 777
8 φ1700 3000 6/6 1198
10 φ1800 3280 6/6 1493
15 φ1800 5240 8/6 2500
25 φ2200 5760 8/8 2852
20 φ2200 4500 6/6 2675
8/8 3280
30 φ2400 5750 6/6 3321
8/8 4223
40 φ2600 6600 8/8 5212
10/8 5470
50 φ2800 7100 8/8 5960
10/8 6255
100 Φ3000 14600 12/12 11500

Features

1. The diameter of the oil tank is small, the rigidity is large, and it can withstand certain internal and external pressure, which is beneficial to the relevant anti-static, easy to set in the ground, and can be manufactured in the factory, mass-produced, and easy to transport.

2. There is very little chance of a fire in an oil tank.

3. According to the different materials and standards of the current container, the main material can choose stainless steel, carbon steel, low alloy steel.

4. Reasonable planning, advanced skills, automatic control, in line with standards, the tank body adopts horizontal single-layer or double-layer structure,

5. It can be filled with thermal insulation materials according to user requirements

Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer

Fiberglass Steel Fuel Oil Storage Tank 30000-50000L Industrial Double Layer
