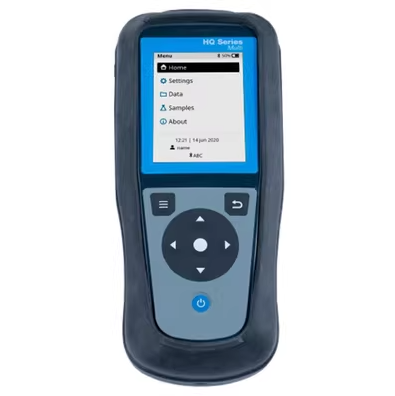

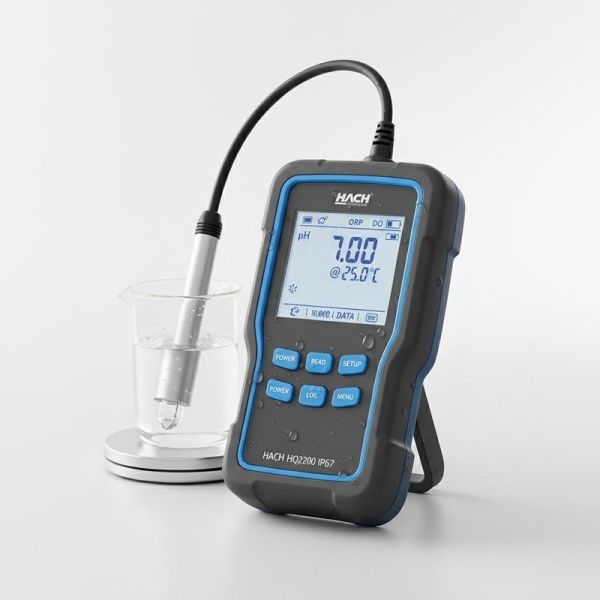

HACH HQ2200 IP67 Waterproof Portable Water Quality Meter with 10,000 Data Readings and Automatic Calibration.
HACH HQ2200 IP67 Waterproof Portable Water Quality Meter with 10,000 Data Readings and Automatic Calibration.
HACH HQ2200 IP67 Waterproof Portable Water Quality Meter with 10,000 Data Readings and Automatic Calibration.
HACH HQ2200 IP67 Waterproof Portable Water Quality Meter with 10,000 Data Readings and Automatic Calibration.
Specifications
Accuracy :
Typically ±0.01 pH, ±0.1 mg/L DO
Measurement Range :
Varies by parameter, e.g., pH 0-14, DO 0-20 mg/L
MOQ :
1
Waterproof Rating :
IP67 or higher for field use
Applications :
Environmental monitoring, wastewater treatment, aquaculture, drinking water analysis
Delivery Time :
6-8WEEK
Response Time :
Usually within 30 seconds to 2 minutes
Price :
699USA
Data Storage :
Internal memory with capacity for thousands of readings
Model Number :
HQ2200
Supply Ability :
6-8WEEK 699
Dimensions :
Varies by model, typically compact and lightweight
Portability :
Handheld or benchtop models available
Power Supply :
Battery operated or AC powered
Brand Name :
HACH
Measurement Parameters :
pH, Dissolved Oxygen, Turbidity, Conductivity, Total Dissolved Solids (TDS), Salinity, Temperature, Ammonia, Nitrate, Phosphate
Calibration :
Automatic or manual calibration options
Connectivity :
USB, Bluetooth, or Wi-Fi for data transfer
Operating Temperature :
0°C to 50°C (varies by model)
Payment Terms :
T/T
Display Type :
LCD or Digital Screen
Description
HQ2200 Portable Multi-Parameter Water Quality Meter
Advanced 2-channel portable meter for comprehensive field and laboratory water analysis with IntelliCAL digital probe auto-recognition technology.
Product Overview
Model NameHQ2200
Full NamePortable Multi-Parameter Water Quality Meter (2 Channels)
Core TechnologyIntelliCAL Digital Probe Auto-Recognition
Calibration Data StorageStored in Probe
Data Memory10,000 Readings
InterfaceWaterproof USB
Protection ClassIP67 (with battery compartment installed)
Dimensions (H*W*D)63 mm * 97 mm * 220 mm
Weight (Meter Only)541 g
Warranty12 Months
Measurement Parameters
pH Measurement
Measuring Range0.00-14.00 pH
Resolution0.001 / 0.01 / 0.1 pH (selectable)
Accuracy±0.02 pH
Temperature CompensationAutomatic (ATC)
Calibration PointsUp to 5 points
Buffer RecognitionIUPAC, USA, DIN, Custom
ORP (mV) Measurement
Measuring Range±2000 mV
Resolution0.1 mV
AccuracyProbe-dependent
Conductivity Measurement
Measuring Range0.01 µS/cm - 200 mS/cm
Resolution0.01 µS/cm to 0.1 mS/cm (selectable)
Accuracy±0.5% of reading (probe-dependent)
Temperature CompensationAutomatic (ATC)
Calibration PointsUp to 3 points
Standard SetsIUPAC, USA, DIN, Custom, NaCl, Seawater
TDS Measurement
Measuring Range0.01 mg/L - 50.0 g/L
Resolution0.01 mg/L to 0.1 g/L (selectable)
Conversion FactorUser-selectable (0.40-1.00)
Salinity Measurement
Measuring Range0.00-42.0 ppt
Resolution0.01 ppt
Resistivity Measurement
Measuring Range0.005 Ω*cm - 100 MΩ*cm
Resolution0.001 Ω*cm to 0.1 MΩ*cm
Dissolved Oxygen (LDO) Measurement
Measuring Range0.00-20.0 mg/L; 0-200% saturation
Resolution0.01 / 0.1 mg/L; 0.1% saturation (selectable)
Accuracy±1% of reading or ±0.1 mg/L (whichever is greater)
Temperature CompensationAutomatic (ATC)
Air Pressure CompensationAutomatic
Calibration Points1-point (saturated air or water)
Response Time<30 seconds (90% response)
Probe TypeLDO (Luminescent Dissolved Oxygen) - no membrane, no electrolyte
Temperature Measurement
Measuring Range-5 °C to 105 °C
Resolution0.1 °C
Accuracy±0.3 °C
Display & Interface
Type536*336 Mono-TFT (Backlit, Anti-glare)
Display FunctionUp to 2 parameters simultaneously (2-channel)
Lock FunctionContinuous / Auto-stabilization / At Interval
Operating InterfaceSoft Touch Keypad
Language Support27 Languages
Power Supply
Internal BatteryRechargeable Li-ion 18650 (3400 mAh)
External PowerUSB Adapter (100-240 VAC, 50/60 Hz, 5 VDC, 2 A)
Battery LifeUp to 140 hours (typical)
Data Management
GLP ComplianceYes
Data TransferUSB to PC / USB Storage
Password ProtectionYes
Calibration AlertsSelectable (2 hours to 7 days)
Certifications & Environmental
Regulatory CertificationsCE, FCC, ISED, RCM, KC, ETL Verified, RoHS
Operating Temperature0 °C to 60 °C
Relative Humidity90% (non-condensing)
Applications
Main UseField / Laboratory Multi-Parameter Water Analysis (2-channel)
Typical ApplicationsDrinking Water, Wastewater, Surface Water, Aquaculture, Industrial Process Water
Included Accessories
USB Charger, Power Cable, User Manuals, Li-ion Battery
