High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
Specifications
Leveling thickness :
0.5~3.2
MOQ :
1
Material width :
400
Material weight :
1200kg
Motor/HP :
2HP
Place of Origin :
China
Machine weight(kg) :
1200kg
Brand Name :
QIAOSEN
Price :
$1960 1set
Supply Ability :
30 set per month
Correction speed :
15m/mir
Packaging Details :
WOODEN BOX
Material diameter :
450~530
Model Number :
GO-400
Payment Terms :
T/T
Material outer diameter :
1200
Delivery Time :
7-10
Description

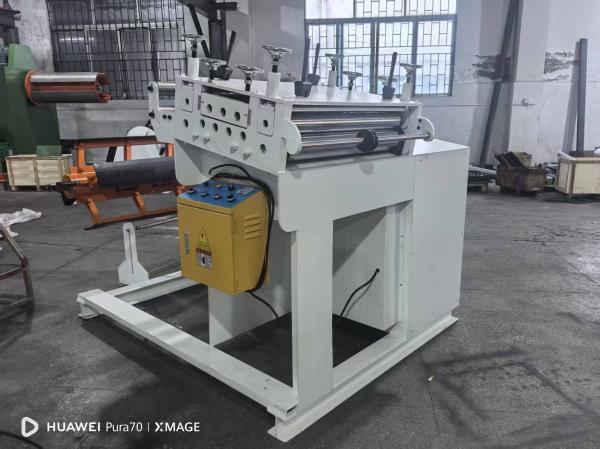

Uncoiler & Straightener 2-in-1 Automatic Metal Coil Machine
Product Overview

The Qiaosen 2-in-1 Material Rack Straightener for Metal Sheet Stamping integrates material rack and leveling machine into a single device. This innovative design saves valuable workshop space and reduces overall investment compared to standalone equipment.

With a shorter material travel path, this machine guarantees stable feeding and delivers excellent leveling effects. Featuring easy installation, simple operation, and reliable performance, it represents a cost-effective solution for medium and thin metal sheet stamping lines.

High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
Packaging & Shipping
  • Wrapped with plastic film for protection against dust and moisture
  • Spare parts packed in separate cartons for organized delivery
  • Main unit loaded in fumigation-free plywood case
  • Firmly fixed to ensure safe long-distance transportation
High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing High-Accuracy Uncoiler & Straightener with 180 mm Slider Length and 300mm Material Width for Metal Coil Processing
Frequently Asked Questions
What is this machine used for?

It is a 2-in-1 uncoiler and straightener, used to unroll metal coils and level sheets before stamping processing.

What materials can it process?

It is applicable to cold rolled steel, galvanized sheet, aluminum, copper and other medium thin metal coils.

What are the advantages of integrated design?

It occupies less space than separate machines, simplifies layout and reduces connection failure between equipment.

Can it match with servo feeder and punch press?

Yes, it can be perfectly connected with feeders and servo presses to realize fully automatic production.

Is it easy to adjust the leveling degree?

Equipped with fine adjustment handwheel, you can easily adjust roller gap to get ideal flatness.

Does the reel damage the material surface?

The reel is designed to avoid sharp edges, effectively prevent scratching and deformation of metal sheets.

Warranty & Service
  • 12 months full machine warranty against manufacturing defects
  • 24/7 online technical support and remote troubleshooting
  • Complete operation manuals and installation guides provided
  • Long-term supply of original spare parts with fast delivery
  • Lifetime cost-effective maintenance service after warranty period
