Energy Saving Prepaid Electricity Meters Suitable for Commercial Properties and Industrial Facilities with Scalable Solutions
Energy Saving Prepaid Electricity Meters Suitable for Commercial Properties and Industrial Facilities with Scalable Solutions
Specifications
Brand Name :
Calin
Model Number :
CA168-F01
Certification :
STS
Place of Origin :
Shenzhen
MOQ :
500
Accuracy Class :
1.0
Max. Current :
80 A
Measuring Energy Range :
0-10000000 kWh
Phase :
Single Phase
Rated Current :
5A
Application :
IOT, Household, Telecommunication, Electric...
Basic Current :
5A
Dimensions :
Original design
Display Type :
Digital Only
Operating Temperature :
-25℃～70℃
Description

Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features .

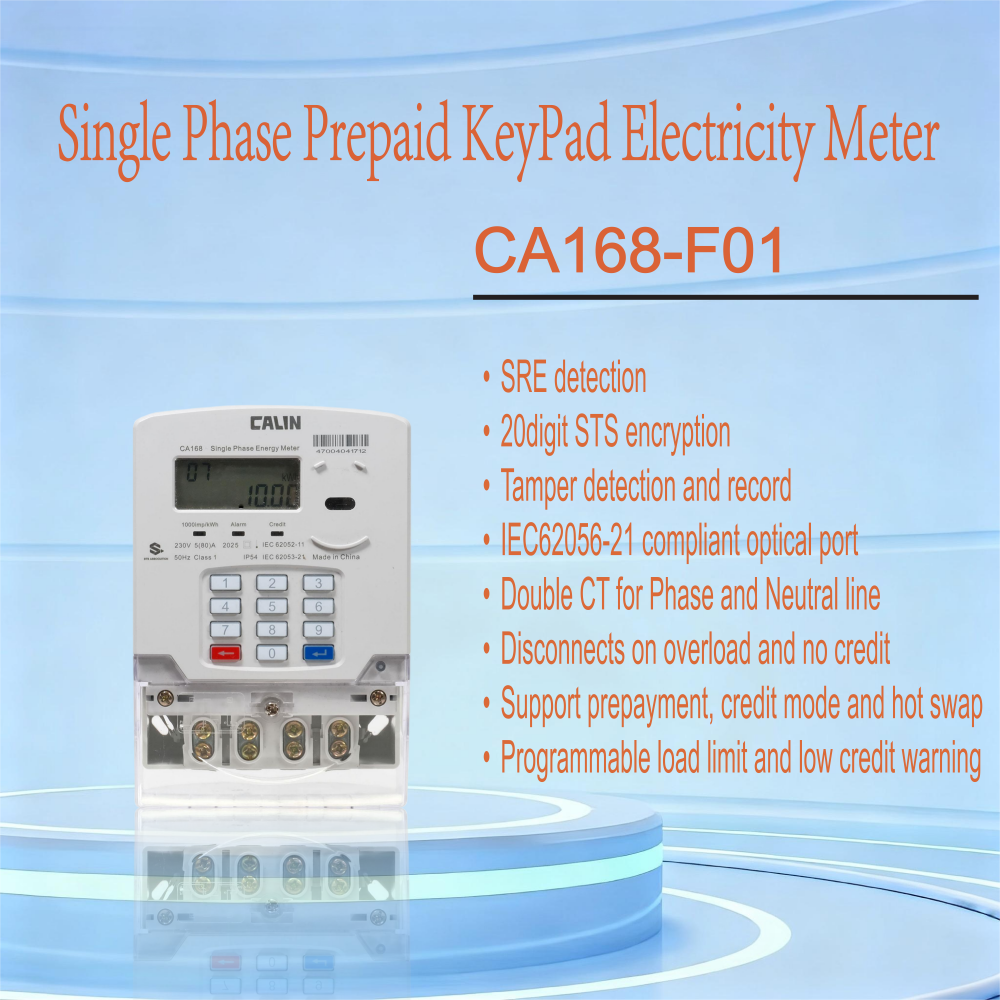

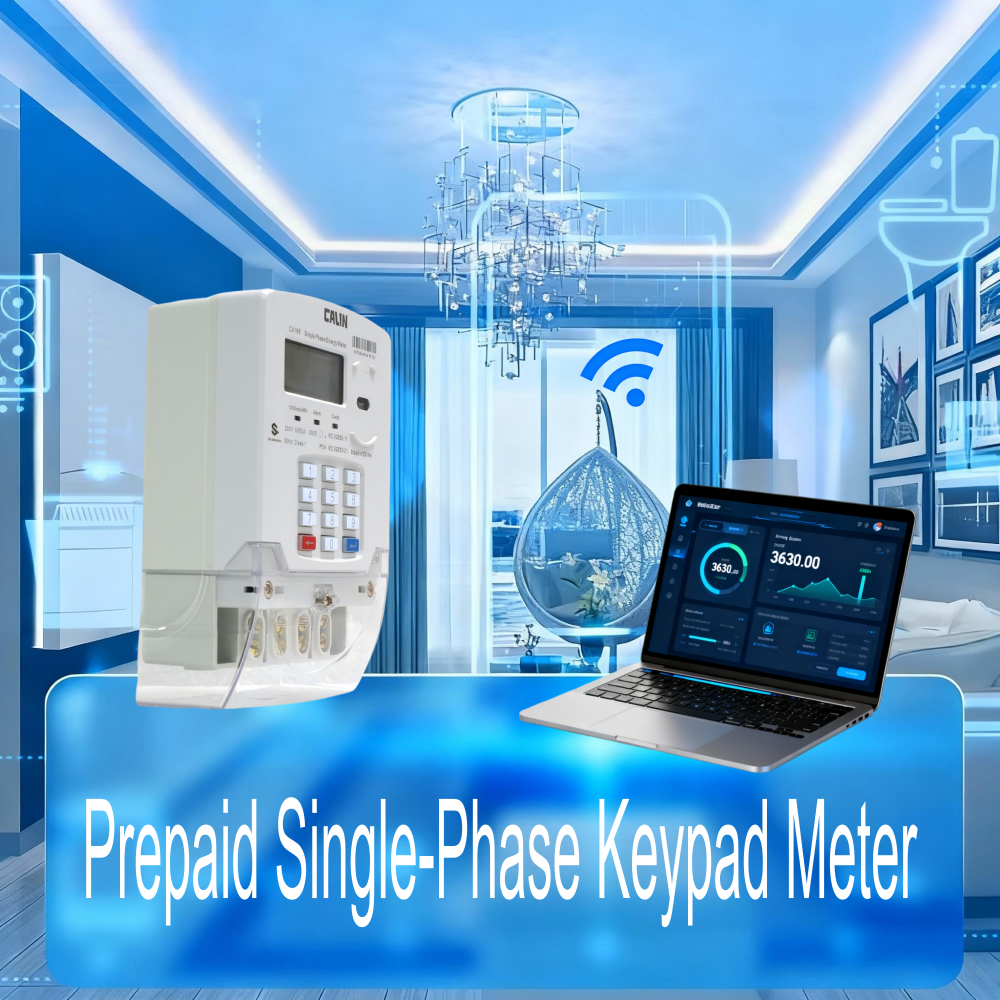

Single phase prepaid energy meter with off-grid solar power

Energy Saving Prepaid Electricity Meters Suitable for Commercial Properties and Industrial Facilities with Scalable Solutions

Energy Saving Prepaid Electricity Meters Suitable for Commercial Properties and Industrial Facilities with Scalable Solutions

Key Benefits

a) RF / Lora communication (On request)
b) Time of Use (TOU) , multi-tariff, holiday setting
c) Easy connection to Customer Interface Unit (CIU) for split type applications
d) 15 year designed life
e) Balance alarm can be set by user according to his own need

Technical Parameters
Nominal voltage Un
220V/230V/240V
Limited voltage
50%~130%Un
Nominal frequency fn
50-60Hz
Basic current(Ib)
5A
Maximum current(Imax)
80A
Starting current(Ist)
0.4% Ib
Active energy constant
1000imp/kWh
Accuracy as Active energy to IEC62053‐21
Class1.0
Power consumption in Voltage circuit
<2W <8VA
Power consumption in current circuit
<1VA
Operating temperature
-25℃ to+70℃
Storage temperature
-40℃ to+85℃


Main Features

a) Detection of significant reverse energy (SRE)
b) IEC62052-11 IEC62053-21 compliant optical & RS485 port allowing for easy data interrogation
c) Disconnects on overload and no credit
d) Preventing electricity-stolen function

e) CT for Neutral line (Optional)


ABOUT US
Each member of Calin R&D team ever served in top rank Chinese meter companies
and contrbuted to the rapid development of smart metering industry in China.

Calin, as derived from China League of lnnovation, dates back to the year 2006 when our team developed thenew generation of CPU card electronic prepaid kilo-watt hour meter for China State Grid. Now there are over1,.000,000 pcs this type of smart prepayment electric meters operating as key revenue protection devices forutilities and service providers in and out of China.


With vast forefront field experience and expertise, Calin offer a broad metering product range, comprising ofconventional electric meters, water meters, prepaid meters, wireless communication meters, vending andmanagement systems, AMR / AMl smart metering solutions, consulting, training and support.


Calin is the forerunner of prepaid metering industry in China. Our products and solutions are all developed onthe concept of revenue protection and better management, and thus enjoy very high reputation in the industryEven now China is supplying components, complete products as in OEM, and meter electronic design to manyother meter manufacturers. With this OEM and trade partners, Calin's business has expannded to over 30countries and regions worldwide


To share with our clients the benefit from our constant innovation and commit to our clients' request is Calin'sforever unchanging principle. Running away from responsibility is always condemed. Calin will keep servicing ourclients with our best innovation and commitment to create best mutual benefit.


FAQ

Q: Are you a trade company or a manufacturer?

A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
