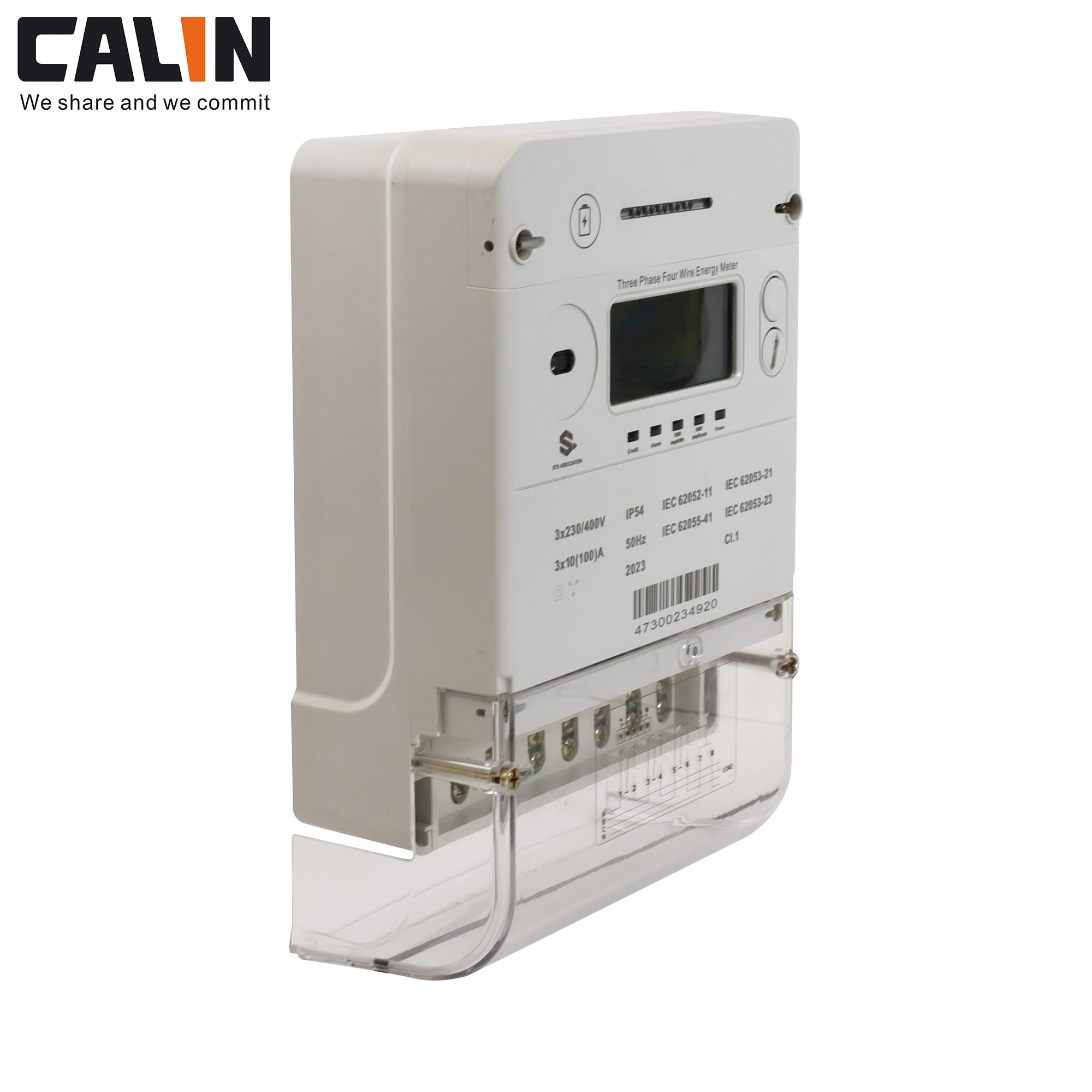

CA368-F02 Three-phase KWh Smart Energy Meter with RF/LoRa/LoRaWAN Communication Supporting Vending Software
Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty
The CA368 allows a utility and service provider to make flexible payment control settings such as free basic unit, emergency overdraft credit, low credit warning, and repayment rules.
Key Benefits
  • Meters can be extended to Split type with UIU
  • Available with choices of PLC/RF/LoRa/GSM wireless communication with AMR AMI server
  • Consumption record on Time of Use (TOU) basis
Technical Parameters
Parameter Specification
Nominal voltage Un 3x230/240V
Limited voltage 50%~130%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 10A
Maximum current(Imax) 100A
Starting current(Ist) 0.4%IB
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty
Main Features
  • Critical metrological value measurement: V, A, PF, P, etc
  • Trip on no credit or preset balance level
  • Disconnect on tamper detected
  • Meter allows setting for power limit, emergency credit, debt collection, surcharges, etc
  • Uni-directional measurement for reverse energy (SRE)
  • Anti-fraud features
Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty Class1 Accuracy Three-phase Smart Energy Meter with 100 A Max Current and 18 Months Warranty
Frequently Asked Questions
Are you a trade company or a manufacturer?
We are an original meter manufacturer and solution provider, we can provide more support for you.
Do you provide samples for testing, free or extra?
We can provide samples, but we will charge reasonable cost.
What's payment terms you accept?
Paypal/West Union/T/T/L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shipment.
How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or it is 15-30 days based on your order quantity.
