Specifications
Model Number :
CA168-MJ56
Brand Name :
CALIN
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$36-48
Accuracy Class :
Class 1.0
Max Current :
60/80/100A
Energy Range :
0-10000000 kWh
Phase :
Single Phase
Rated Current :
5A
Basic Current :
5A
Display Type :
LCD
Operating Temperature :
-25℃～70℃
Output Voltage :
220V/230V/240V
Communication :
RF, LoRa, LoRaWAN, PLC/G3PLC, GPRS/4G
Frequency :
50/60Hz
Waterproof Rating :
IP56
Starting Current :
0.4%Ib
Active Energy Constant :
1000imp/kWh
Power Consumption :
<2W <8VA (Voltage), <1VA (Current)
Description
Product Description
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter

Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features .


Key Benefits

a) RF, LoRa, LoRaWAN, PLC/G3PLC, GPRS/4G communication (On request)
b) Time of Use (TOU) , multi-tariff, holiday setting
c) Easy connection to Customer Interface Unit (CIU) for split type applications
d) 15 years of lifespan designed
e) Balance alarm can be set by user according to his own need

Technical Parameters
Nominal voltage Un
220/230/240V
Limited voltage
50%~130%Un
Nominal frequency fn
50/60Hz
Basic current(Ib)
5A
Maximum current(Imax)
60/80/100A
Starting current(Ist)
0.4%Ib
Active energy constant
1000imp/kWh
Accuracy as Active energy to IEC62053‐21
Class1.0
Power consumption in Voltage circuit
<2W <8VA
Power consumption in current circuit
<1VA
Operating temperature
-25℃ to+70℃
Storage temperature
40℃ to+85℃

Main Features

a) Detection of significant reverse energy (SRE)
b) IEC62056-21 compliant optical & RS485 port allowing for easy data interrogation
c) Disconnects on overload and no credit
d) Preventing electricity-stolen function

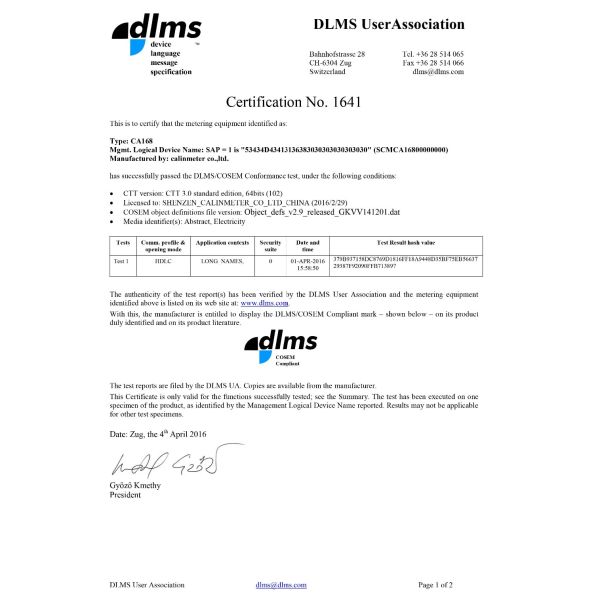

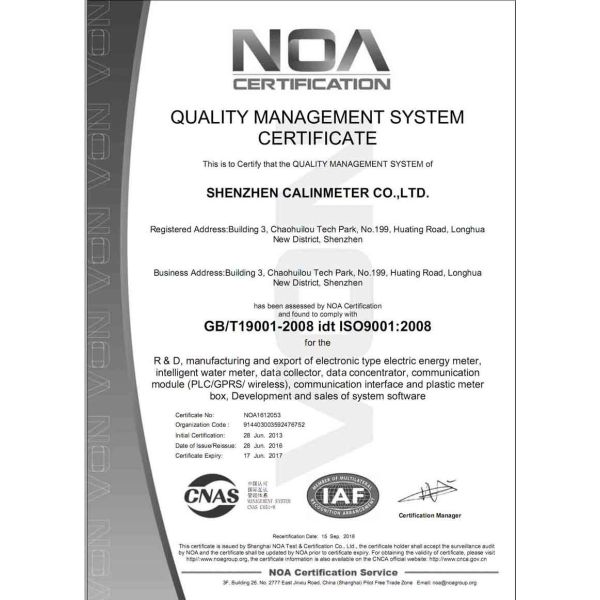

Certifications
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter

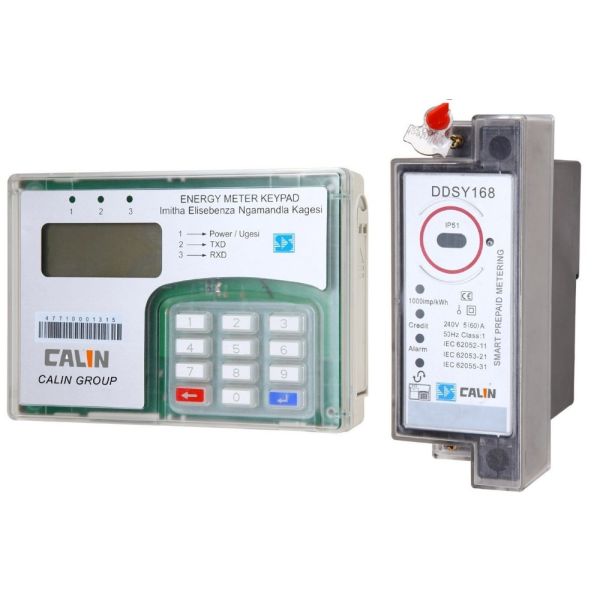

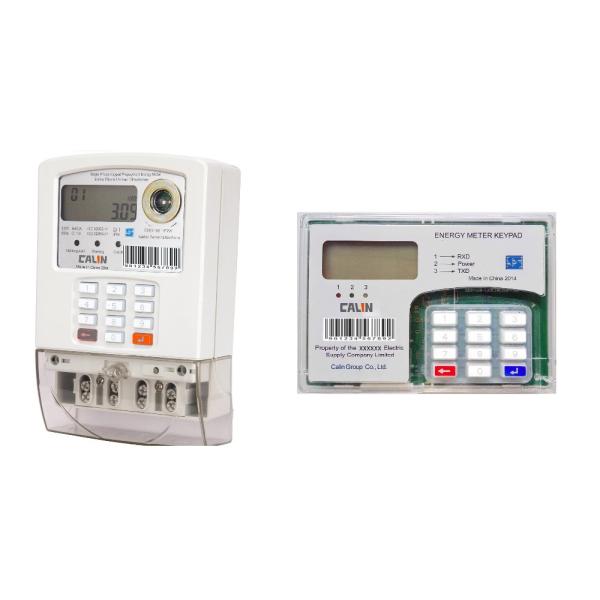

Detailed Images
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
