Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter

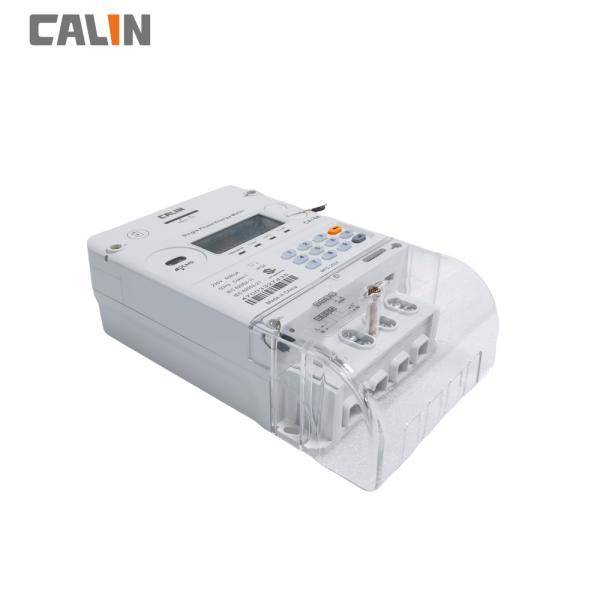

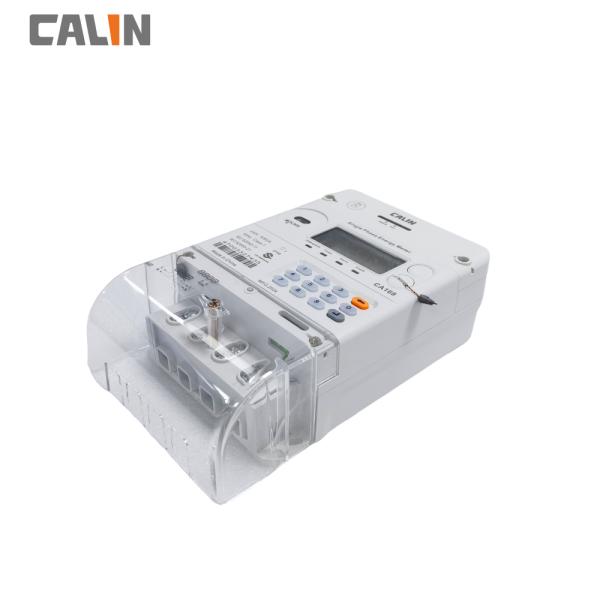

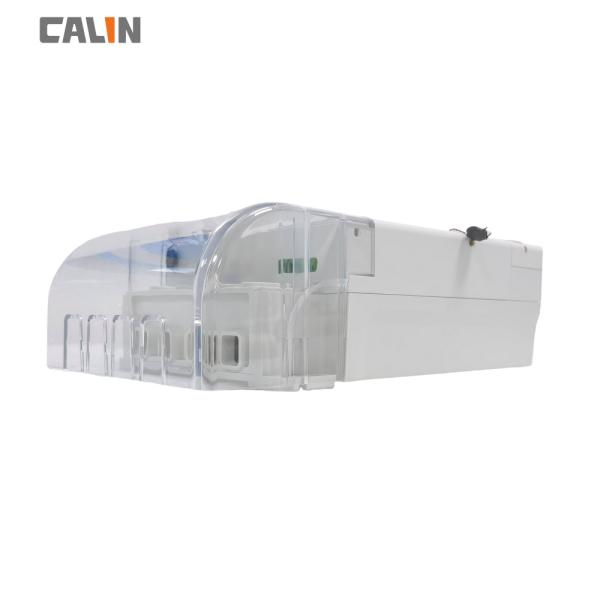

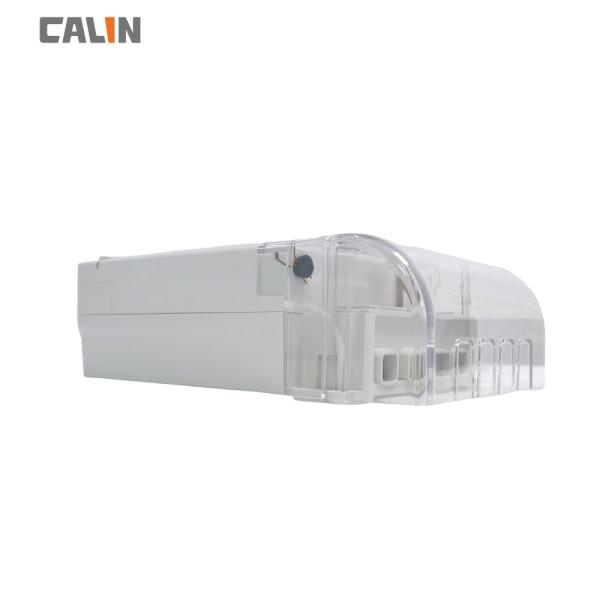

The CA168-C is used for residential, light commercial and industrial environments of prepayment metering applications. It is a single phase two wire meter desgined in a compact BS footprint mounting case, perfect for retrofitting installations using exisiting wires. The meter is built with a surge varisotr for lightening protection up to 13 kV and an SMPS for low voltage operation down to 80V and below, making it uniquely catering to unstable grid areas such as Africa and Central or South America continents. Its wide range of current allowance 5(80) Amp and 30Vm withstand of RF immunity makes it operatable in very severe environments.

The high profile of CA168-C is available with the option for modular communication unit providing wireless communication such as Power Line Carrier (PLC) Radio Frequency (RF) and GSM/ GPRS on customers request. With this wireless feature, the meter can be utilized for AMR AMI functions as in communication and interaction with a head-end server (HES) for automatic meter readout, remote disconnection and reconnection, tariff setting and upgrade, etc.

Featured Functions

a) Surge protection and operation at low voltage

b) Uni-directional measurement of significant reverse energy (SRE)

c) Trips on overload and zero credit

d) Programmable power limit and low credit warning

e) 1 element 4 quadrant active reactive energy measurement (optional)

f) Fraud detection.

g) Wireless communication with HES for AMR AMI features (optional)

Key benefits

a) Compact and easy to install

b) Ideal for retrofitting due to BS footprint mounting

c) Complete revenue protection and anti-tamper feature settings

d) Time of Use (TOU) , multi-rate, holiday setting

e) Flexible consumer's contract to budget usage limit

f) Low operational and maintenance cost

Specifications:

Advantage Of Single Phase Electric Meter

1) Easy to deploy and maintenance

2) Increased tamper protection

3) Low operational cost

4) Optical port offers simple interrogation

5) Broad range of engineering settings

6) 15 year designed lifespan
