Specifications
Brand Name :
Calin
Model Number :
CA168
Certification :
CE//IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,Paypal,T/T,L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Name :
Smart Prepayment Meter
Standard :
DLMS/COSEM
communication :
PLC/RF/GPRS/3G/4G LTE
Nominal voltage Un :
220/230/240 V
Limited voltage :
70%~120%Un
Storage temperature :
40℃ to+85℃
Description

Single Phase GSM DLMS Prepaid Electricity Meters Smart Prepayment Meter


Single Phase GSM DLMS Smart Electricity Meter​

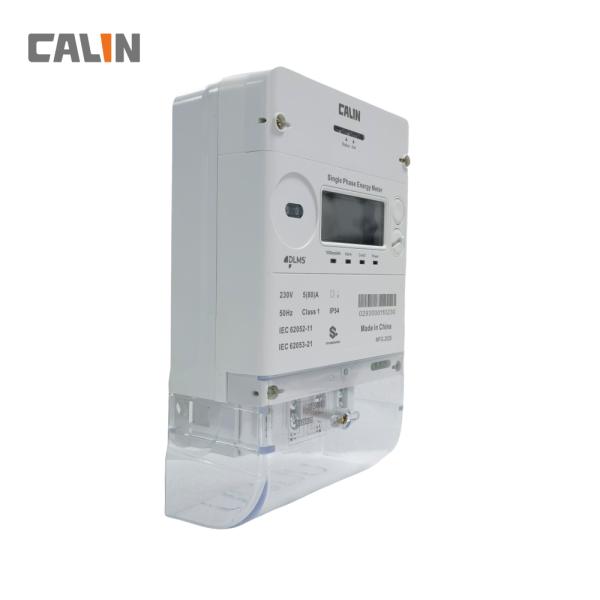

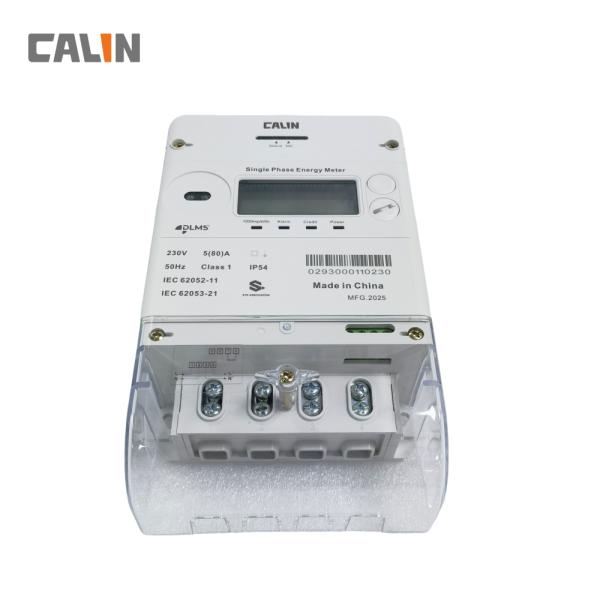

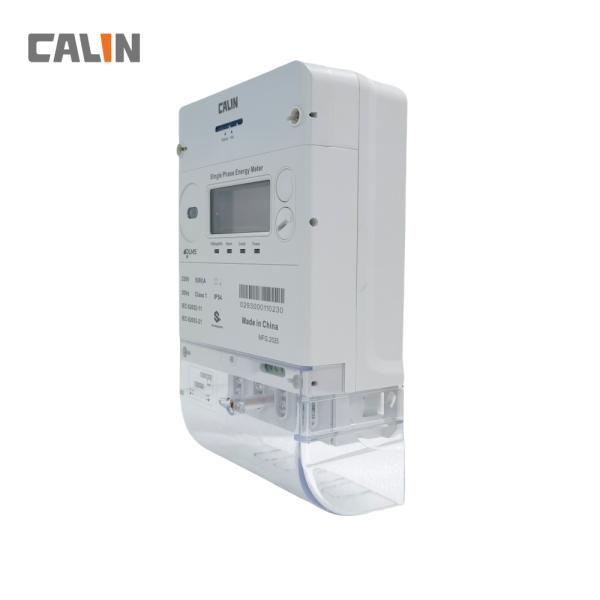

Single Phase GSM DLMS Smart Electricity Meter​ CA168


The CA168 is used for a wide rang of smart metering applications.It combines latest 3DES security encryption technology and modular communication unit. The meter is allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended AMR/AMI functional features. It is a compact design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to operate in harsh environments.


The meter works with a plug-in modules for DLMS/COSEM compliant data collection and network communications. This modular design enables utility to select from PLC/RF/GPRS/3G and 4G LTE cellular data newworks according to local conditions at low cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.


Major Features

  1. DLSM/COSEM standard compliant
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant optical & RS485 port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Prepayment and credit mode hot swap
  6. Programmable load limit and low credit warning
  7. Detection and record tamper event such as cover open, reversal, black-out, etc.

Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features



Specifications:


Nominal voltage Un 220/230/240 V
Limited voltage 70%~120%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 5-10A
Maximum current(Imax) 60-100A
Starting current(Ist) 20mA
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature 25℃ to+70℃
Storage temperature 40℃ to+85℃
Insulation level 4kV rms for 1min
Impulse voltage withstand 8kV, 1.2/50 μs
Air discharge 16kV
Immunity to HF fields
80MHz to 2GHz with load 10V/m
100kHz to 1GHz without load 30V/m
Fast transient burst test 4kV
Meter shell Protection Rate IP54(IEC60529)
Insulation System Classification Protective Class II
