IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit
IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit
IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit
IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit
Specifications
Brand Name :
Calin
Model Number :
DDSY168
Certification :
CE/SABS/IEC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, Paypal,T/T, L/C
Supply Ability :
70,000pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Protocol :
STS,IEC62056-21
communication :
PLC/RF/GPRS
Name :
STS keypad prepaid meter
Nominal voltage Un :
220/230/240 V
Nominal frequency fn :
50-60Hz+5%
Starting current(Ist) :
20mA
Description

IP54 Din Rail Mounted Single Phase Kwh Meter Programmable Load Limit

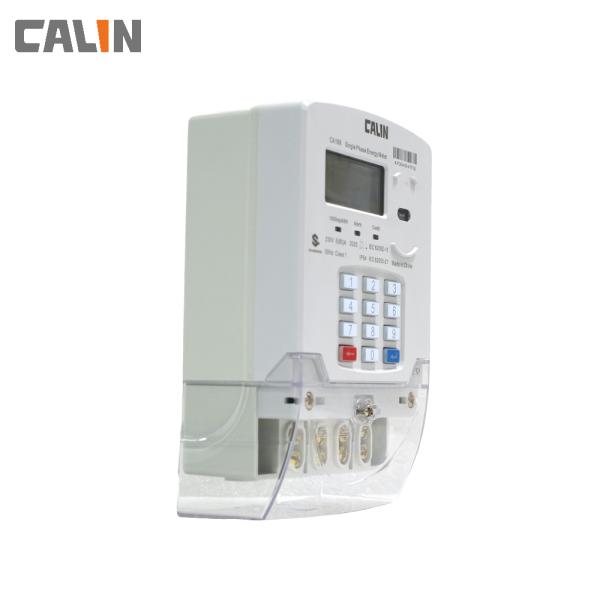

Smart Single phase STS keypad prepaid meter DDSY168

Smart Single phase STS keypad prepaid meter DDSY168

The Smart DDSY168 is used for a wide range of appplications, duo to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features, It is a compact and keypad-based design in a BS8565 standard houseing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Dual power source working on both prepaid and credit mode
  6. Programmable load limit and low credit warning
  7. Detection and record tamper event such as cover open, reversal, black-out, etc.
  8. Easy access to 12 months historical consumption data and last 5 token entered

Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features

Specifications:

Nominal voltage Un 220/230/240 V
Limited voltage 70%~120%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 5-10A
Maximum current(Imax) 60-100A
Starting current(Ist) 20mA
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature 25℃ to+70℃
Storage temperature 40℃ to+85℃
Insulation level 4kV rms for 1min
Impulse voltage withstand 8kV, 1.2/50 μs
Air discharge 16kV
Immunity to HF fields
80MHz to 2GHz with load 10V/m
100kHz to 1GHz without load 30V/m
Fast transient burst test 4kV
Meter shell Protection Rate IP54(IEC60529)
Insulation System Classification Protective Class II
