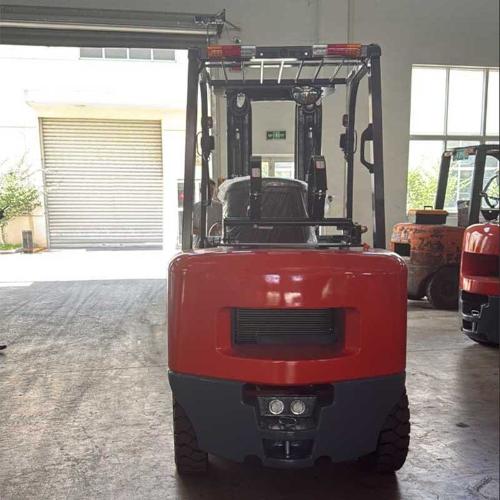

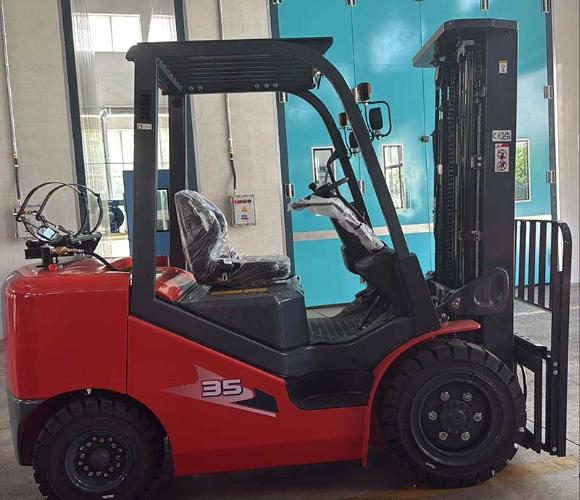

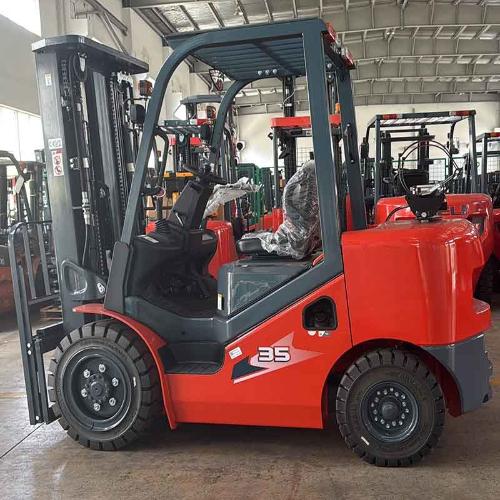

CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use
Specifications
Brand Name :
HELI/Linde
Model Number :
CP(Q)(Y)D35
Certification :
CE, GCC, ESMA
Place of Origin :
Shanghai, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T
Supply Ability :
10Pcs
Delivery Time :
30days
Packaging Details :
Barely packaged and loaded into the container
Product Name :
CPQYD35 Forklift
Fork Size :
T*W*L (50*140*1220mm)
Fork Thickness :
40mm, 45mm, 50mm
Fork Width :
100mm, 120mm, 140mm
Fork Length :
1070mm, 1150mm, 1220mm
Load Capacity :
3500kg
Load Center :
500mm
Operation Mode :
Seat-type
Engine Type :
Gasoline or LPG
HS Code :
8427209000
Description

Product Description of Forklift

The forklift is an industrial handling vehicle, referring to various wheeled handling vehicles used for loading and unloading, stacking, and short-distance transportation of packaged palletized goods. It is commonly used for transporting large items in storage.


The technical parameters of forklifts are used to indicate the structural features and working performance of forklifts. The main technical parameters include: rated lifting capacity, load center distance, maximum lifting height, mast tilt Angle, maximum traveling speed, minimum turning radius, minimum ground clearance, as well as wheelbase and track width, etc


Specification of Forklift


Manufacturer
Symbols for parts of forklift trucks
Unit
Heli
Model


CPQYD25
CPQYD30
CPQYD35
Rated capacity

kg
2500
3000
3500
Load center

mm
500
Operation mode

Seat-type
Size (The content corresponding to the symbols refers to the figure below. )
Lifting height (standard)
H
mm
3000
3000
3000
Mast overall height(Fork to the ground and mast be vertical)
H1
mm
2000
2065
2180
Max.fork lifting height (with backrest)
H2
mm
4030
4245
4235
Free lift height
H3
mm
165
160
170
Overall height (Overhead guard)
H4
mm
2150
2170
2170
Min. ground clearance
(At the mast)
H5
mm
115
135
135
Distance from seat surface to roof guard
H6
mm
1030
1030
1030
Traction pin height
H9
mm
275
280
280
Shelf height (from the fork surface)
H13
mm
1000
1227
1222
Overall length (with fork/without fork)
(L/L')
mm
3708/2638
3818/2748
3836/2766
Wheelbase
L1
mm
1650
1700
1700
Front overhang
L2
mm
478
478
496
Rear overhang
L3
mm
515
570
570
Overall width
W1
mm
1150
1225
1225
Tread( Front wheel/rear wheel)
(W3/W2)
mm
970/970
1000/970
1000/970
Fork adjustment range (the external of the fork)) (Max./Min.)
W5
mm
1030/244
1060/250
1060/250
Min. turning radius(Exterior)
r
mm
2240
2400
2420
Min. turning radius(Interior)
r²
mm
180
200
200
Min.right angle stacking aisle width
Ra
mm
2280
2380
2400
Mast tilt angle
ɑ/β
deg
6/12
6/12
6/12
Fork size
L4×W×T
mm
1070x122x40
1070x125x45
1220x140x50
Weight
Total weight
kg
3740
4340
4700
Weight distribution Fully Loaded (Front/Rear)
kg
5440/800
6440/900
7380/820
Weight distribution unladen (Front/Rear)
kg
1520/2220
1700/2640
1850/2850
Wheels and tires
Number of wheels X = drive wheels (Front/Rear)

2x2
Tire type (Front/Rear)

pneumatic tires
Tire size (Front/Rear)

7.00-12-12PR/
6.00-9-10PR
28x9-15-14PR/
6.50-10-10PR
28x9-15-14PR/
6.50-10-10PR
Service brake

Hydraulic-Foot Pedal
Parking brake

MechanicalHand Lever



Model
Unit
CP(Q)(Y)
20
CP(Q)(Y)
D20
CP(Q)(Y)
25
CP(Q)(Y)
D25
CP(Q)(Y)
30
CP(Q)(Y)
D30
CP(Q)(Y)
35
CP(Q)(Y)
D35
Max.
Drawbar Pull(Loaded/Unoaded)
KN
15/12.5
16/12.8
15/12.3
16.5/12.4
17/13.5
18/13.5
18/13.5
20/13.5
Max. Gradeability(Loaded/Unloaded)
%
30/25
39/28
27/23
35/23
21/23
29/22
15/22
23/22
Max. Traveling Speed(Loaded/Unloaded)
km/h
17/19
17/19
19/20
19/20
Lifting Speed (Loaded/Unloaded)
mm/s
520/570
520/570
420/480
370/410
Lowing Speed (Loaded/Unloaded)
mm/s
450/500
450/500
450/550
350/400
Engine Manufacturer/Model
/
GCT K25
Rated Power/Rated Speed
Kw/rpm
37.4/2400
Max. Torque/Rated Speed
Nm/rpm
176.5/1600
Engine Cylinder Number
/
4-89x100
Engine Displacement
L
2.488
Engine Type
/
Gasoline or LPG
Battery(Voltage/Capacity)
V/Ah
12/60
Engine Fuel Tank Capacity
L
60

CPQYD35 LPG Counterbalanced Forklift 3.5t Solid Tires - Warehouse/Farm Use


CPQYD35 Forklift: Powering Efficient and Reliable Material Handling​
The CPQYD35 forklift is a top choice for efficient material handling in logistics, warehousing, and factories, boasting these key advantages:
​

High Efficiency: With a high-performance engine and hydraulic system, it delivers strong power and precise control, speeding up loading, unloading, and transfers to boost overall logistics efficiency.

​

Strong Load Capacity: Easily handles heavy goods, from standard pallets to large materials, meeting diverse workplace needs.

​

Flexible Operation: Its excellent control system ensures agility, performing smoothly in narrow warehouse aisles, uneven docks, or varied factory setups.

​

Stability & Safety: Built with high-strength steel, plus stable tires and drive systems, it prevents cargo shaking or tipping, ensuring safe transport and long equipment life.

​

Eco-Friendly & Cost-Effective: Features an energy-saving power system to cut consumption and emissions. Its well-arranged components simplify maintenance, reducing costs and downtime.​

Ideal for daily or high-intensity tasks, the CPQYD35 adds value with its efficiency, strength, flexibility, safety, and economy.
