AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures
Specifications
Brand Name :
Huiyi-GL
Model Number :
S350GD+AZ, SGLCC, DX51D+AZ
Certification :
EN 10346, ASTM A792, JIS G3321, GB/T 2518
Place of Origin :
China
MOQ :
25Tons
Price :
Negotiation
Payment Terms :
L/C,D/P,T/T
Supply Ability :
5000MT/Month
Delivery Time :
15-30 Days
Packaging Details :
Exporting Packing with 3layers including the waterproof plastic film，Waterproof paper - plastic film-metal wrap.
Raw Material :
Hot/Cold Rolled Base
Type :
Coil/sheet/strip/corrugated
Zinc coating :
30-275g/㎡
Thickness :
0.3-2.0mm
Width :
600-1500mm
Yield Strength :
≥320 MPa
Tensile Strength :
≥390 MPa
Coil ID :
508/610mm
Description
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures

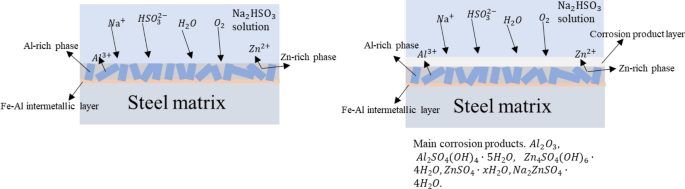

Engineered for solar panel mounting structures, our AZ180 Galvalume steel sheet features a hot-dip coating of 55% aluminum, 43% zinc, and 2% silicon, combining superior barrier and sacrificial corrosion resistance. Its key advantage is exceptional heat resistance, enduring continuous temperatures up to 315°C—critical for high-radiation environments with significant thermal cycling. This durability ensures an exceptionally long service life of 50-60 years, far exceeding the 25-30 year lifespan of typical solar panels and providing a truly maintenance-free, cost-effective mounting platform.

AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures

Product Specifications
Parameter Specification
Material / Grade Structural Steel Grade
Coating Weight 30-275g/㎡
Thickness Range 0.3mm - 2.0mm
Width Range 600mm - 1,500mm
Yield Strength (Rp0.2) ≥ 320 MPa
Tensile Strength (Rm) ≥ 390 MPa
Coating Composition 55% Aluminum, 43% Zinc, 2% Silicon
Surface Appearance Chemical Passivation, Oiling, or Anti-Finger Print available

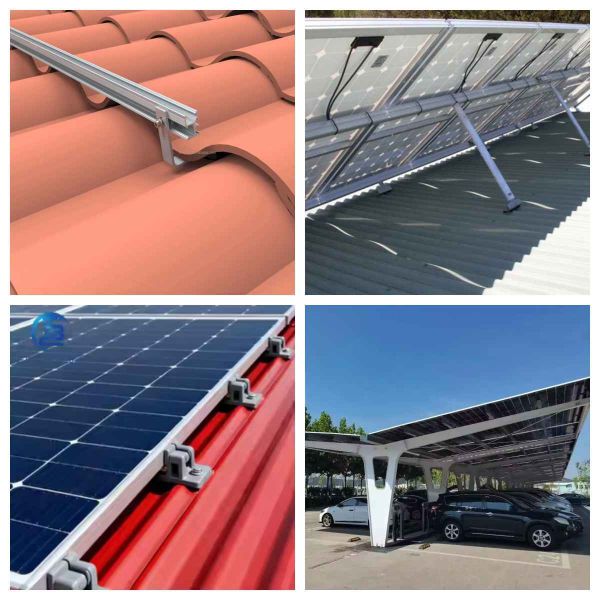

Applications
  • Solar Mounting Rails & Purlins: The primary structural members that directly support and secure solar panels, benefiting from high strength and stiffness.
  • Ground-Mount Support Structures: Legs, piles, and torque tubes for large-scale solar farms, where long-term corrosion resistance is paramount.
  • Roof-Integrated Mounting Systems: Components for both commercial and residential rooftop installations, where the material's longevity matches that of premium metal roofs.
  • Solar Carport and Canopy Framing: Provides a durable and reliable framework for integrated solar structures.
AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures

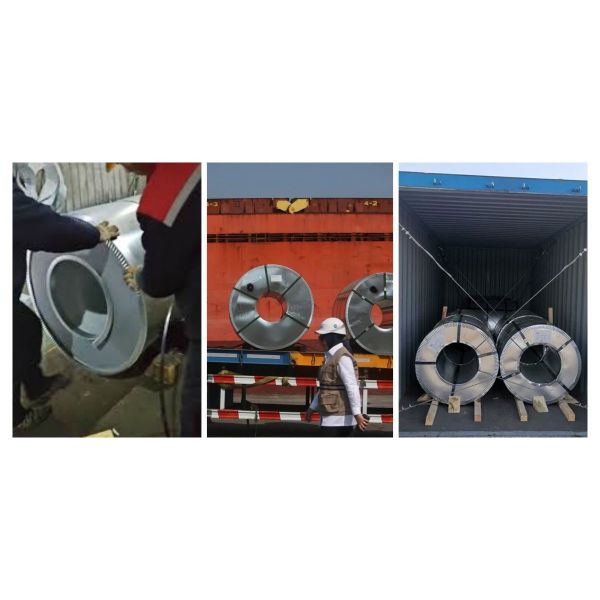

Packing and Shipping

Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).

Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.

Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.

AZ180 Heat-Resistant Galvalume Steel Sheet for Solar Panel Mounting Structures

FAQ
When will you send BL copy?
In 3-5 workdays after shipment date.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
