DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
Specifications
Brand Name :
HUIYI-GI
Model Number :
Galvanized Steel Coil
Certification :
EN 10346, ASTM A653, ISO 9001
Place of Origin :
CHINA
MOQ :
25 Tons
Price :
Negotiated Price, USD/MT
Payment Terms :
L/C,T/T,D/P
Supply Ability :
5000 tons per month
Delivery Time :
15-45DAYS
Packaging Details :
Standard exporting package , wrapped with waterproof paper. Then after fully wrapped with high density PE film. Then after fully covered with iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical.
Product Name :
Galvanized Steel Coil
Thickness :
0.30 - 5.0mm
Width :
600mm - 1500mm
Coating :
60g/㎡-275g/㎡
Coil Weight :
3 - 8 tons
Yield Strength (ReH) :
140 – 300 MPa
Tensile Strength (Rm) :
270 – 500 MPa
Key Feature :
Excellent Formability & Weldability
Description
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
Our DX51D Hot-Dipped Galvanized Steel Coil is engineered for highway crash barrier systems, where structural integrity, corrosion resistance, and long-term durability are critical for public safety. Manufactured to EN 10346, DX51D is a low-carbon steel grade known for excellent formability and consistent mechanical properties. Through continuous hot-dip galvanizing, a uniform zinc coating is metallurgically bonded to the steel, forming a sacrificial barrier that protects against corrosion from road salt, moisture, and weather exposure. This combination of a strong, formable substrate and robust zinc coating makes it ideal for guardrails, crash barriers, and roadside safety systems requiring decades of reliable service.
DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
Product Specifications
Product Type Coil / Sheet / Strip
Standard ASTM, GB, JIS, EN
Thickness 0.12 - 5.0mm
Width 600mm - 1500mm
Zinc Coating 60 - 275 g/m²
Inner Diameter 508/610mm

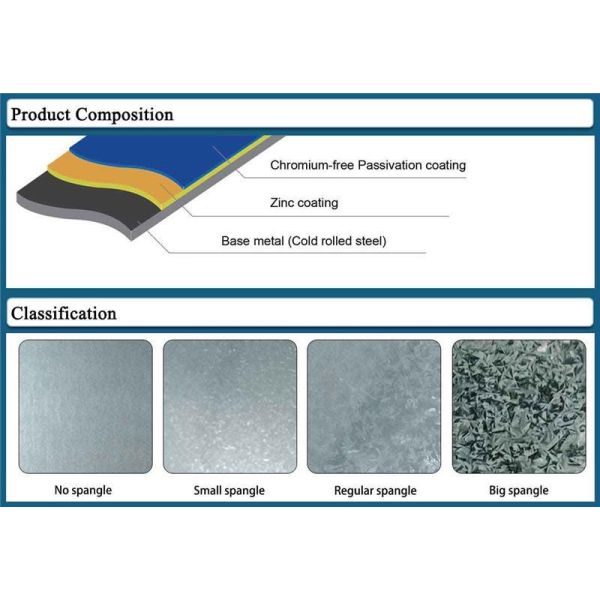

Surface Treatment Chromated Passivation, Oiled, Anti-Fingerprint
Spangle Zero / Small / Regular / Large

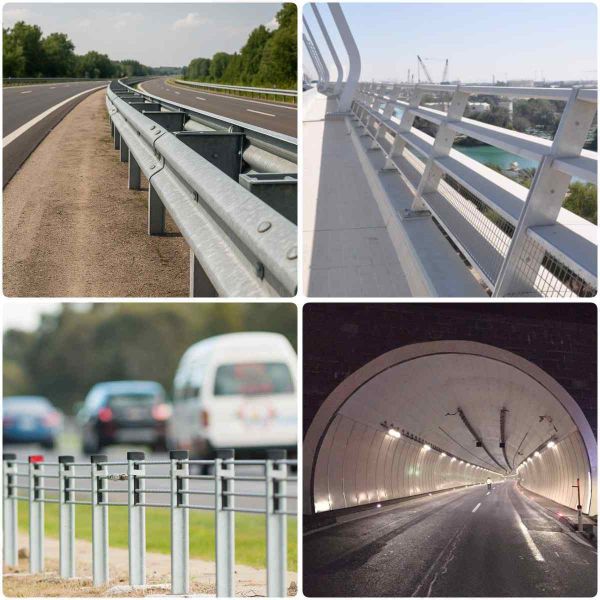

Main Applications

· Highway Crash Barrier Systems: The primary application, including W-beam and Thrie beam guardrails, transition sections, and end terminals.

· Road Safety Fencing: Steel barriers and median dividers requiring high impact resistance and corrosion protection.

· Bridge Railings & Parapets: Safety barriers on bridges and overpasses exposed to de-icing salts and moisture.

· Tunnel Wall Panels: Protective steel lining for tunnel interiors where durability and fire safety considerations are paramount.

DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems

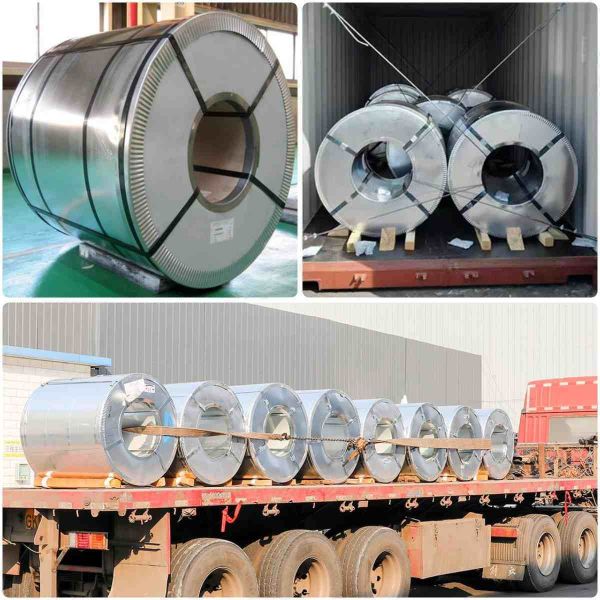

Packing & Shipping

Triple-Shield Packaging

VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).

Global Logistics

FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.

Quality Assurance

Pre-shipment inspection and moisture indicators for transit protection.

DX51D Hot-Dipped Galvanized Steel Coil For Highway Crash Barrier Systems
FAQ

Do you provide samples?

Yes, for regular sizes sample is free, buyer need to pay freight cost.

How can I get a quotation?

You can leave us message, and we will reply in time. And you can also find our contact details on the Contact page.

How long is the delivery time?

It depends on the order quantity, normally the delivery time takes around 15-30 working days. Please kindly contact us before ordering.
