Specifications
Brand Name :
HuiYi-GI
Model Number :
DX51D+Z
Certification :
ASTM, EN
Place of Origin :
China
MOQ :
25MT
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
5000MT/Month
Delivery Time :
15-30 Days
Packaging Details :
VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards
Product Name :
Galvanized Steel Coil
Material :
High-Strength Steel Coil
Size :
(0.12-2.0)mm × (600-1250)mm
Tensile Strength :
270-500 MPa
Yield Strength :
140-280 MPa
Salt Spray Resistance :
1,000hrs (ASTM B117)
Passivation Type :
Trivalent Chromium (RoHS/REACH Compliant)
Anti-White Rust Guarantee :
6-12 months in humid storage
Description
DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage
Product Description

Our Chromated Treatment Anti-White Rust Galvanized Steel Coil is specifically engineered to prevent white rust formation during storage and transit, ensuring pristine surface quality upon arrival. The coil undergoes a advanced chromate passivation process after hot-dip galvanization, creating a protective layer that neutralizes moisture-induced corrosion. With a zinc coating range of Z60-Z275 (60-275g/m²), it provides robust sacrificial protection while the chromate treatment enhances corrosion resistance by 20-24 times compared to untreated galvanized steel. Ideal for humid environments and long-term storage applications, this coil maintains its aesthetic and functional integrity even under challenging conditions. Certified to ASTM A653 and EN 10346 standards, it is the optimal choice for logistics, warehousing, and supply chain solutions requiring corrosion-resistant materials.

DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage
Technical Parameters
Parameter Specification
Base Material
DX51D+Z (ASTM A653, EN 10346)
Thickness
0.12mm - 2.0mm(±0.02mm)
Width
600mm - 1,250mm
Coating Weight
Z60-Z275 (60-275g/m²)
Surface Treatment Chromated Passivation (Anti-White Rust)
Tensile Strength
270-500 MPa
Yield Strength
140-280 MPa
Salt Spray Resistance
1,000hrs (ASTM B117)
Coil ID
508mm/610mm
Coil Weight
3-8 Tons

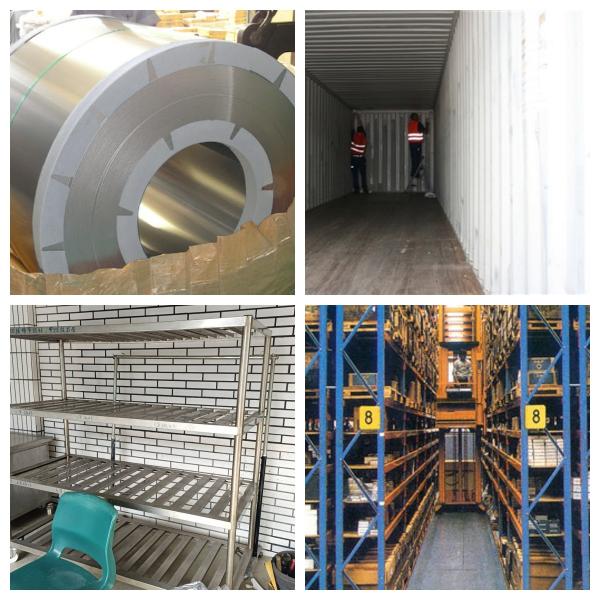

Applications

Storage Racks & Shelving: Corrosion-resistant components for warehouse storage systems in high-humidity environments.

Packaging Materials: Protective layers for industrial goods and equipment during extended storage or maritime transportation.

Logistics Containers: Components for shipping containers and transport units exposed to moisture.

Export Packaging: Ideal for goods requiring long-duration ocean transport or humid climate storage.

DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage

Customization Options

Zinc Coating: Adjustable weights (e.g., Z120 for moderate humidity, Z275 for extreme conditions).

Dimensions: Custom thickness, width, and length cuts to fit specific storage systems.

Passivation Type: Trivalent chromium passivation (environmentally friendly) or custom formulations.

Packaging: VCI paper + PE film + desiccant bags for enhanced moisture protection.

MOQ: 5 tons (custom orders), 25 tons (standard).

Packing and Shipping

Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).

Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.

Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.

DX51D+Z Chromated Treatment Anti-White Rust Galvanized Steel Coil For Storage
FAQ

Q:Is trivalent chromium passivation environmentally safe?
A: Yes, it replaces hazardous hexavalent chromium and complies with RoHS/REACH standards.


Q:What s the payment term for Galvanized Steel Coil?

A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.

Q:When will you send BL copy?

A:In 3-5 workdays after shipment date.

Q:When will you send original Documents?

A:In 3-5 workdays when we get the balance.

Q: What is the lead time for samples?

A: Samples are available in 7-10 days after detailed requirements confirmation.

Q:What is your working time?

A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
