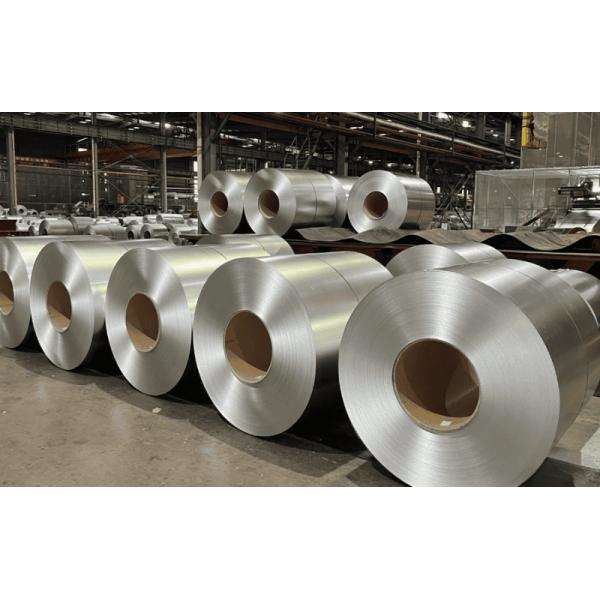

DX51D Galvalume Steel Coil For Construction
DX51D Galvalume Steel Coil For Construction
DX51D Galvalume Steel Coil For Construction
DX51D Galvalume Steel Coil For Construction
Specifications
Brand Name :
HuiYi-GL
Model Number :
DX51D+AZ
Certification :
EN,ISO,ASTM
Place of Origin :
China
MOQ :
25MT
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
5000MT/Month
Delivery Time :
15-30 Days
Packaging Details :
VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards
Product Name :
Galvalume Steel Coil
Material :
Cold-Forming Steel
Sheet Thickness :
0.12mm - 4.0mm (±0.02mm)
Sheet Width :
600mm - 1,500mm (±2mm)
Tensile Strength :
270-500 MPa
Yield Strength :
245-455 MPa
Surface Finish :
Skin-passed / Minimized Spangle / Chromated
Salt Spray Resistance :
1,000hrs (ASTM B117)
Description
DX51D Galvalume Steel Coil For Construction
Product Description

Our Skin-Passed DX51D Galvalume Steel Coil delivers superior formability and enhanced corrosion resistance for construction applications. Featuring a hot-dip 55% Al-Zn coating (AZ100-AZ275), it provides 2-4 times longer service life than standard galvanized steel. The skin-passing process ensures a smooth, spangle-minimized surface for excellent paint adhesion and eliminates stretcher strains during fabrication. Compliant with ASTM A792/A792M, it is an ideal choice for structural and architectural projects.


DX51D Galvalume Steel Coil For Construction



Technical Parameters
Parameter Specification
Grade/Standard DX51D+AZ (ASTM A792/A792M)
Thickness 0.12mm - 4.0mm (±0.02mm)
Width 600mm - 1,500mm
Zinc Coating Z100 - Z275 (100-275 g/m²)
Tensile Strength 270 - 500 MPa
Yield Strength 245 - 455 MPa (Estimated based on common data)
Elongation (A%) 8% - 32%
Surface Finish Skin-Passed, Minimized Spangle, Chromated/Oiled
Coil ID 508mm or 610mm
Coil Weight 3-12 Tons


DX51D Galvalume Steel Coil For Construction



Applications

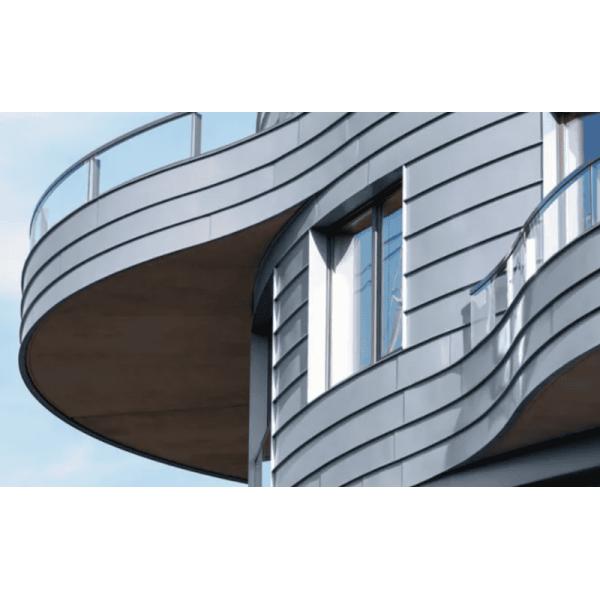

  • Building Envelopes: Roofing and wall cladding systems for commercial, industrial, and agricultural buildings.


  • Structural Components: Light gauge steel frames, purlins, and trusses.


  • Architectural Elements: Facades, rain gutters, downpipes, and decorative panels.


  • Interior Applications: Ceiling panels, partition walls, and fire doors.


DX51D Galvalume Steel Coil For Construction



Customization Options

  • Zinc Coating: Custom aluminum-zinc coating weights within the AZ100–AZ275 range.


  • Dimensions: Custom thickness, width, and length cuts.


  • Surface Treatment: Oiled, Chromated, or Passivation treatment.


  • Spangle Type: Regular spangle, minimized spangle, or zero spangle.


  • MOQ: Competitive Minimum Order Quantity with samples available for quality verification.

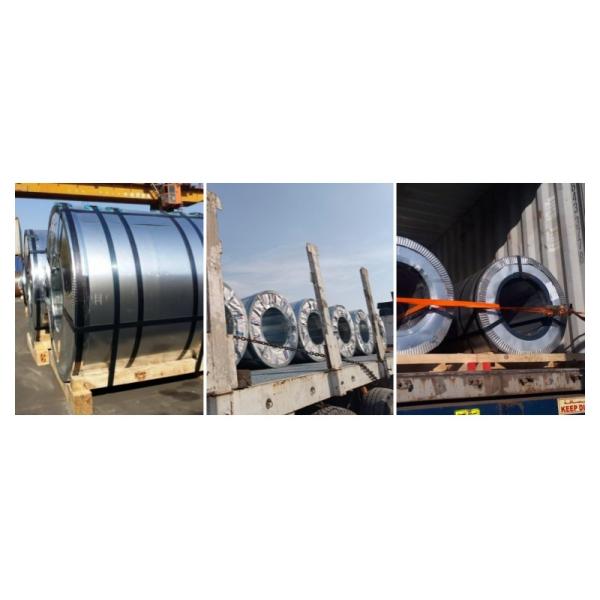

Packing and Shipping
  • Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).


  • Global Logistics: FOB/CIF from Chinese ports; 15-day delivery for Asia, 30 days globally.


DX51D Galvalume Steel Coil For Construction



FAQ

Q: How do you control quality?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available.


Q: Why is skin-passing important?
A: Skin-passing (or temper rolling) improves surface flatness, controls yield point elongation to prevent stretcher strains during forming, and provides a superior surface for painting.


Q: Can you provide sample?
A: Small samples in store and can provide the samples for free.Customized samples will take about 5-7days.


Q:What is your working time?

A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
