Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural
Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural
Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural
Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural
Specifications
Brand Name :
HuiYi-PPGL
Model Number :
CGLCC,G550
Certification :
EN,ISO,ASTM
Place of Origin :
China
MOQ :
25MT
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
5000MT/Month
Delivery Time :
15-30 Days
Packaging Details :
VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards
Product Name :
Prepainted Galvalume Steel
Material :
Galvalume Steel
Size :
(0.3-1.2)mm × (600-1250)mm
Color :
RAL + Architectural Shades (Woodgrain Patterns)
Tensile Strength :
270-550 MPa
Yield Strength :
245-495 MPa
Surface Finish :
Woodgrain Embossed
Salt Spray Resistance :
1,000hrs (ASTM B117)
Description
Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural
Product Description

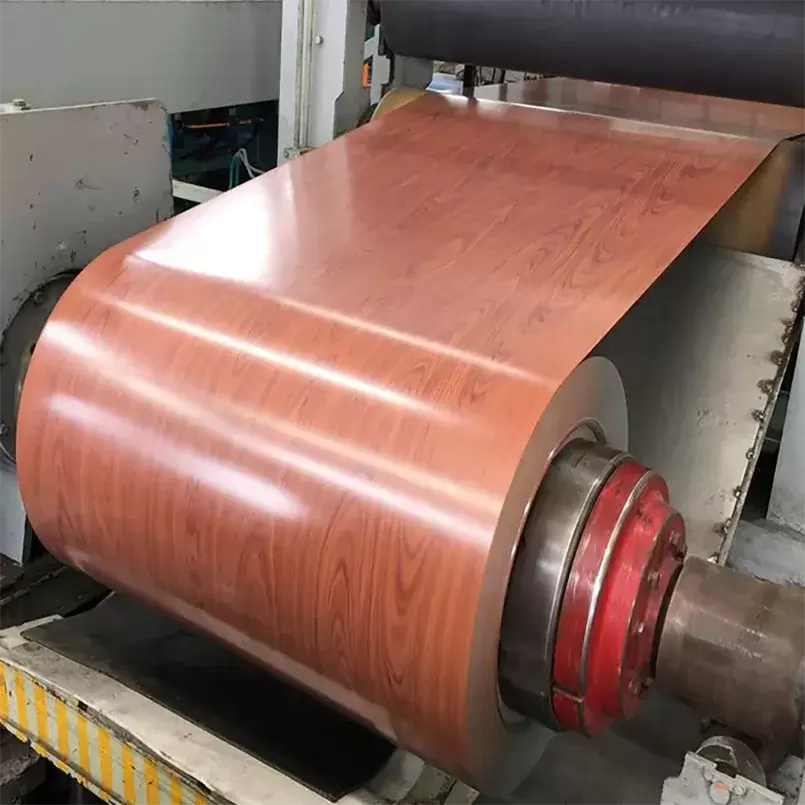

Our Woodgrain Finish Decorative Prepainted Galvalume Steel Coil combines the exceptional corrosion resistance of a 55% Al-Zn alloy substrate (AZ100-AZ150) with an aesthetically pleasing woodgrain pattern. Designed for both interior and exterior architectural applications, this coil features a high-quality paint system (PE/PVDF/HDP) that provides excellent color retention and scratch resistance. The realistic woodgrain texture enhances visual appeal while maintaining the durability and longevity of galvalume steel, making it ideal for modern architectural cladding, interiors, and facades.


Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural



Technical Parameters
Parameter Specification
Base Material DX51D+AZ (ASTM A792/A792M)
Thickness 0.3mm - 1.2mm (±0.03mm)
Width 600mm - 1,250mm
Coating Weight AZ100-AZ150 (100-150g/m²)

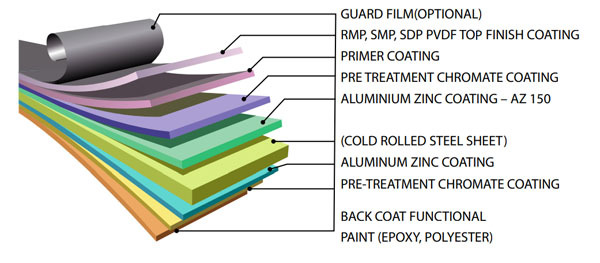

Paint System PE/PVDF/HDP (20-30μm)
Surface Finish Woodgrain Embossed
Tensile Strength 270-550 MPa
Elongation ≥20%
Salt Spray Resistance 1,000hrs (ASTM B117)


Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural



Applications

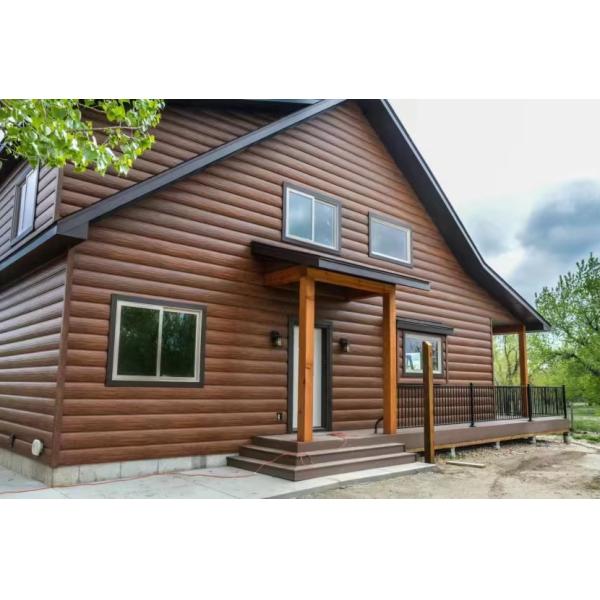

  • Architectural Facades & Exteriors:High-quality exterior wall cladding, curtain walls, and soffits for commercial and residential buildings, offering an aesthetic wood appearance with metal's durability.

  • Interior Decorative Panels: Wall cladding, partitions, and ceiling panels in residential and commercial spaces.


  • Furniture Components: Cabinets, shelving, and decorative accents with a natural wood appearance.


  • Retail & Hospitality Spaces: Feature walls, display units, and hotel lobby interiors.


  • Modular Construction: Prefabricated interior elements requiring lightweight and durable finishes.


Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural


Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural



Customization Options
  • Woodgrain Patterns: Oak, Teak, Walnut, and custom designs.


  • Paint Systems: PE (standard), PVDF (premium weather resistance), HDP (high durability).


  • Colors: Custom RAL/Pantone matching available.


  • Dimensions: Tailored thickness, width, and length cuts.


  • MOQ: 10 tons (standard), 5 tons for custom patterns.



Packing and Shipping
  • Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).


  • Global Logistics: FOB/CIF from Chinese ports; 15-day delivery for Asia, 30 days globally.


Woodgrain Finish Decorative Prepainted Galvalume Steel Coil For Architectural



FAQ

Q: When will you arrange production for prepainted steel coil?

In 7 workdays when we receive your advance payment.


Q:What s the payment term for color coated steel coil?

A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.


Q:When will you send BL copy?

A:In 3-5 workdays after shipment date.


Q:When will you send original Documents?

A:In 3-5 workdays when we get the balance.


Q: Is the woodgrain pattern consistent across batches?
A: Yes, we ensure pattern consistency through controlled embossing processes.


Q:What is your working time?

A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
