Specifications
Brand Name :
HuiYi-PPGL
Model Number :
CGLCC,G550
Certification :
ISO,ASTM
Place of Origin :
China
MOQ :
25MT
Price :
Negotiation
Payment Terms :
T/T,L/C,D/P
Supply Ability :
5000MT/Month
Delivery Time :
15-30 Days
Packaging Details :
VCI kraft paper + 0.3mm PE film + Steel-strapped pallets with edge guards
Product Name :
Prepainted Galvalume Steel
Material :
Galvalume Steel
Size :
(0.3-1.2)mm × (600-1250)mm
Color :
RAL Colors
Tensile Strength :
270-550 MPa
Yield Strength :
245-495 MPa
Coating Structure :
Primer + PVDF Top Coat
Warranty :
20 Years Color Retention
Description

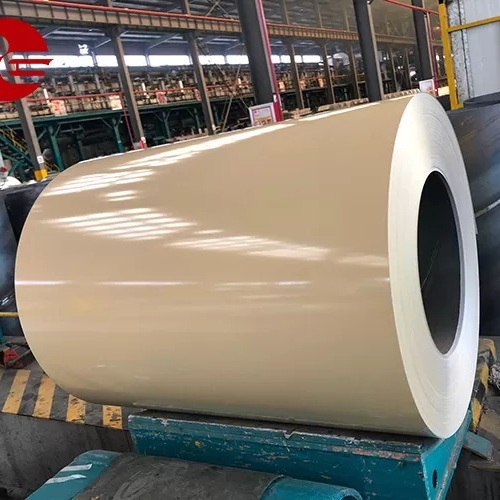

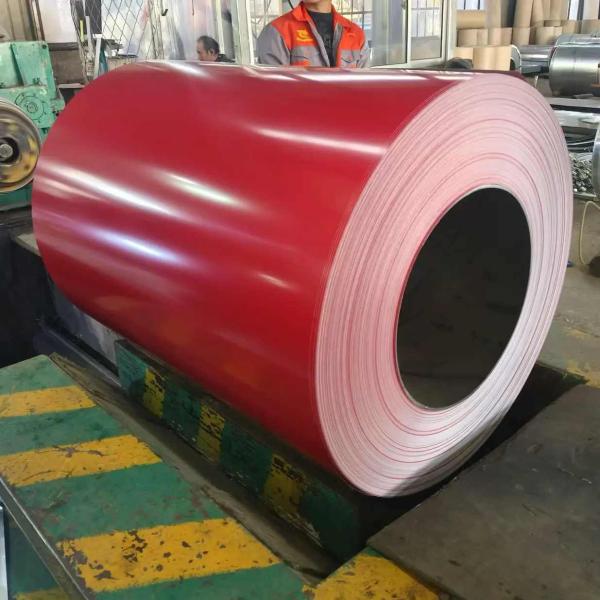

PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
Product Description

Our PVDF Coating Weatherable Prepainted Galvalume Steel Coil is engineered for superior architectural performance in demanding environments. This product combines the inherent corrosion resistance of a 55% aluminum-zinc alloy substrate (AZ100-AZ150) with a top-tier Polyvinylidene Fluoride (PVDF) resin coating. The exceptional strength of the fluorine-carbon bond in PVDF provides outstanding resistance to solar radiation, chemicals, and pollution, effectively resisting coating degradation caused by solar oxidation. While PVDF coatings may come at a higher cost compared to systems like polyester (PE) or silicone modified polyester (SMP), their near-maintenance-free characteristics and long service life make them the preferred choice for landmark buildings in highly corrosive or high-salt areas. This coil is an ideal, cost-effective solution over its lifespan for iconic structures like international airports, convention centers, and skyscrapers.

PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
Technical Parameters
Parameter Specification
Base Material DX51D+AZ (ASTM A792)
Thickness 0.3mm - 1.2mm (±0.03mm)
Width 600mm - 1,250mm
Coating Weight AZ100-AZ150 (100-150g/m²)
Paint System PVDF (20-30μm)
Antibacterial Efficiency ≥99% (vs. E. coli & S. aureus)
Surface Finish Smooth/Matte, various embossed patterns available
Tensile Strength 270-500 MPa
Salt Spray Resistance 1,000hrs (ASTM B117)
Standards ASTM A792, ISO 9001

Applications
  • Architectural Cladding: Curtain walls, facades, and wall panels for commercial and public buildings.
  • Roofing Systems: Long-lasting roofs for industrial plants, airports, and sports stadiums.
  • Architectural Elements: Soffits, rain gutters, downpipes, and decorative panels.
PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
Customization Options
  • Colors: Full range of RAL colors, including custom matching.
  • Surface Finish: Smooth, Matte, Woodgrain, Stucco, and other embossed patterns.
  • Dimensions: Customized shearing to your required length and width.
  • MOQ: Competitive Minimum Order Quantity, with sample services available.
Packing and Shipping
  • Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
  • Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
PVDF Coating Weatherable Prepainted Galvalume Steel Coil For Architecture
FAQ

Q: When will you arrange production for prepainted steel coil?

In 7 workdays when we receive your advance payment.

Q:What s the payment term for color coated steel coil?

A:30-50% TT in advance(based on your qty ), 70% balance against copy B/L in 7 workdays.

Q:When will you send BL copy?

A:In 3-5 workdays after shipment date.

Q:When will you send original Documents?

A:In 3-5 workdays when we get the balance.

Q: What is the lead time for samples?

A: Samples are available in 7-10 days after detailed requirements confirmation.

Q:What is your working time?

A: Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
