Specifications
Brand Name :
HUIYI
Model Number :
QCFB06
Certification :
ISO9001 SGS
Place of Origin :
China
MOQ :
25tons each thickness
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 tons per month
Delivery Time :
15-35days
Packaging Details :
water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Product name :
Building material sliver alu-bubble foil
Usage :
Building Steel Structure Material
Material :
foil+bubble+foil
Roll size :
1.2*40m/roll (customized size is available)
Thickness :
3mm
Color :
Silver
Application :
Construction
Function :
Heat resistant, fireproof, waterproof
Description

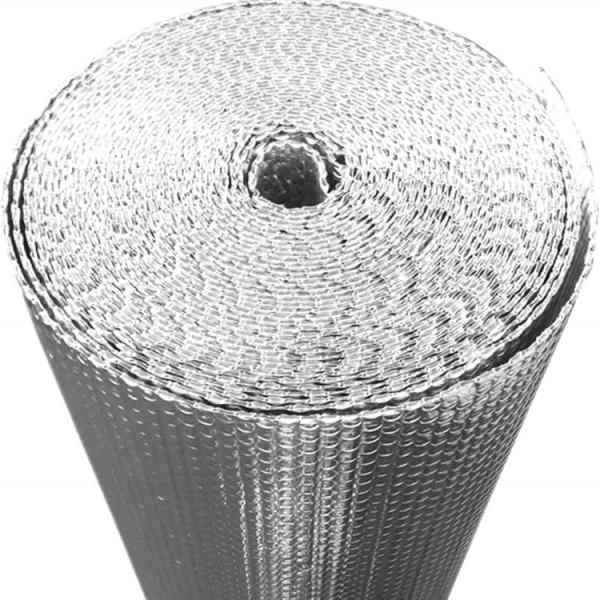

3mm silver ALU-BUBBLE FOIL for building material

Alu-bubble foil introduction:

Alu-bubble foil a new environmentally friendly heat insulation material, which can add a layer of PE woven cloth on the basis of the original aluminum foil and polyethyene, which greatly enhances tensile strength and tering-resistance strength without changing its original characterstics.

Alu-bubble foil specifications :

Item Name Aluminum Foil Bubble Insulation
Material Structure Alu/Metalic+Bubble
Alu/Metalic+(single/double)Bubble+Alu/Metalic
Alu/Metalic+Woven+Alu/Metalic
Alu/Metalic+Woven+Alu/Metalic
Roll Size 1.2*40m/roll (customized size is available)
Bubble Size Φ10~20mm,H3~5mm
Product Thicness 3~8mm
GSM 180~410 g/m²
Density 431g/m²

PROPERTY STANDARD UNIT VALUE
Thermal Conductivity ASTM C518-15 W/mk 0.03
Reflectivity ASTM C1371-15 % 95%~97%
Emissivity ASTM C1371-15 0.05
Temperature Resisitance   -40~100
Heat Insulating Ability Tempreture meter 34.5~56.5
Fire-proof Level ASTM-G518-2010   Class B1
Water Vapor Transmission Rate GB/T 26253-2010 g/m²/day ≤1.00
Tensile Load(Maximum) GB/T 18173.1-2012 N MD-44,TD-99



Here are the loading and application picutres of alu-bubble foil:

Building Material 3mm Silver Alu Bubble Foil for ConstructionBuilding Material 3mm Silver Alu Bubble Foil for Construction

Alu-bubble foil features :

1. 91%-97% high thermal reflectivity

2. 0.3-0.9 low emissivity PE (Polyethylene) material

3. Zero Moisture Absorption

4. Hypoallergenic

5. Fibre-free

6. Clean and easy installation

7. Environment friendly.recyclable

8. High tensile strength application

9. Waterproof

10. Optional features available upon request:

Fire Retardant

Anti-glare

Antioxidant

FAQ:

1.If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness),color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
