AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters
Specifications
Brand Name :
Dingang
Model Number :
AA3105
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Product Name :
AA3105 H24 Matt Surface Black Polyester Paint Coated Aluminum Coil Application For Aluminum Roofing Sidings and Gutters
Thickness :
0.5-1.0mm
Width :
1500mm
Top Coating Thickness :
25um
Back Coating :
7um
Width Tolerance :
0-4mm
Thickness Tolerance :
+/-0.01mm
Elongation Rate :
14%
Tensile Strength :
175 Mpa
Yield Strength :
145Mpa
Bending Rate :
90 Degree
Description

Description

This AA3105 H24 PVDF coated aluminum coil is ideal for manufacturing aluminum roofing sidings and gutters. With AA3105 alloy featuring good formability and corrosion resistance, the H24 temper ensures balanced strength and ductility for easy fabrication. The PVDF coating offers excellent weatherability, UV resistance, and color stability, protecting against fading and corrosion. Suitable for outdoor architectural applications, it delivers durable, aesthetically pleasing results. Available in standard widths, it meets industry standards for roofing and gutter systems, ensuring reliable performance and long service life.

Specification

Pre-painted Color Coated Aluminum Coil
Product Pre-painted Color Coated Aluminum Coils
Thickness 0.5-1.0mm
Diameter 1500mm
Material AA3105
Temper H24
Inner Diameter 500
Color Ral color
Coating thickness PE/PVDF coating
PE Paint Coating : Not Less Than 18um ,PVDF Paint Coating : Not Less Than 25um
Packing Export Standard Wooden Pallets
Payment Terms L/C at sight or 30% T/T in advance as deposit
MOQ 8Tons Per Specification
Delivery Time Within 30 Days
Loading Port Shanghai Port
Application Roofing,Gutter,Siding, Joint. Wall,Truck,Container

Advantages of 3105 aluminum Alloy for Gutters and siding

Corrosion Resistance: Naturally resistant to atmospheric corrosion, ideal for outdoor exposure without frequent maintenance.
Formability: Excellent ductility allows easy shaping into complex gutter profiles and siding panels, ensuring precise installation.
Lightweight Strength: High strength-to-weight ratio reduces structural load while maintaining durability against weather impacts.
Weldability: Seamless welding capability ensures leak-proof gutters and consistent siding finishes.
Surface Compatibility: Bonds well with PVDF or polyester coatings, enhancing weather resistance and aesthetic longevity.
Recyclability: 100% recyclable, aligning with sustainable architectural practices.

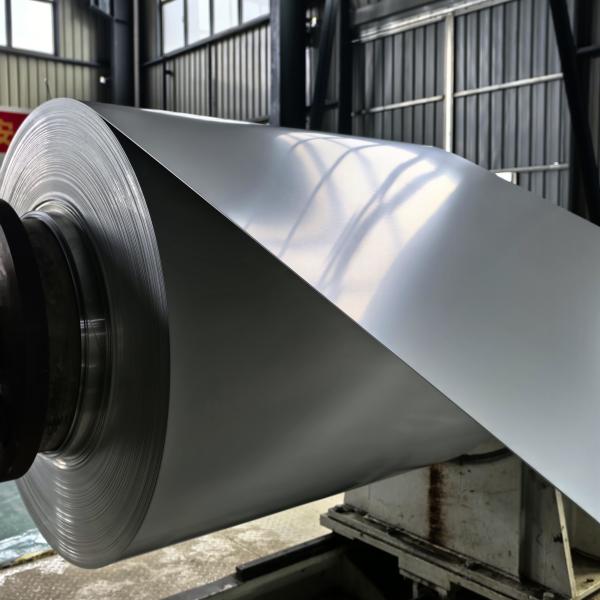

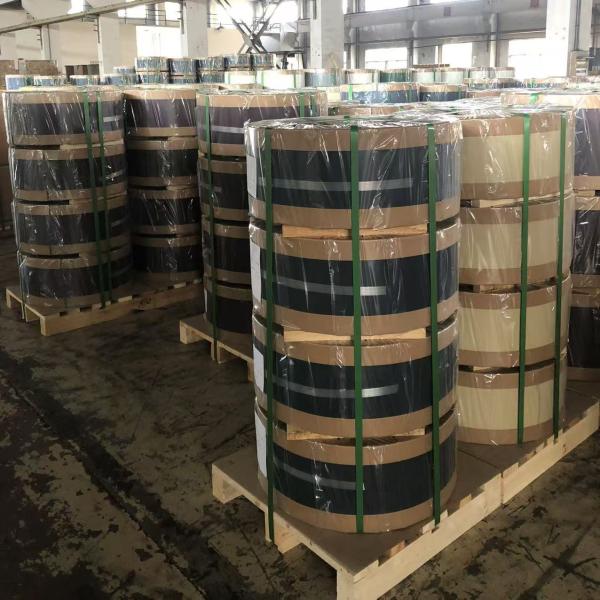

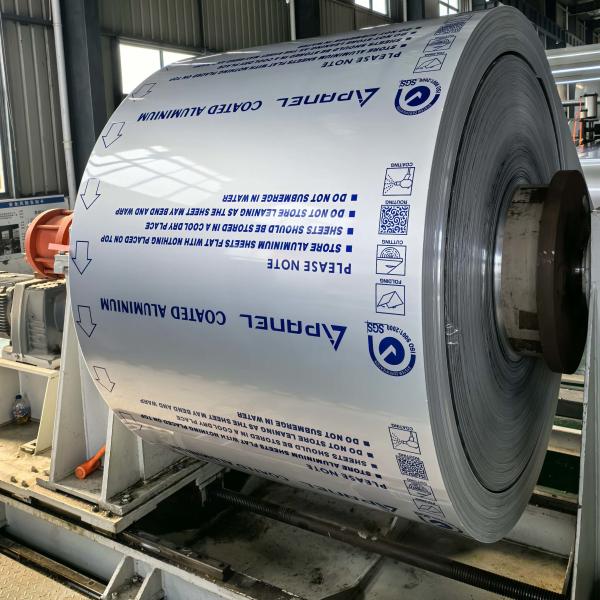

Production Line Photos:

AA3105 H24 PVDF Coated Aluminum Coil For Produce Aluminum Roofing Sidings And Gutters

If you need our colored aluminum coils, please get in touch with us.
