Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
Specifications
Brand Name :
Dingang
Model Number :
Color Coated Aluminum Coil
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Name :
Prepainted Aluminium Coil
Alloy :
5052
Paint Coating Type :
PE,Pvdf
Thickness :
2.0mm
Color :
Customized
Width :
1220mm
Shape :
Coil
Process :
Glossy Finish
Recyclable :
yes
Application :
Van housings and internal chambers
Description

Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers


The Alloy 5052 2.0mm Color Coated/Prepainted Aluminum Coil is designed for van housings and internal chambers, offering durability and aesthetic versatility. With a thickness of 2.0mm, this coil combines the corrosion resistance and lightweight properties of 5052 alloy, ideal for structural applications. The PVDF or PE prepainted coating ensures superior weather resistance, UV protection, and color retention, suitable for both exterior and interior use . Customizable RAL or Pantone colors allow seamless integration into design requirements, while the coated surface enhances scratch resistance and ease of maintenance . Its excellent formability supports bending, welding, and cutting processes, making it adaptable for van body fabrication. Compliant with ISO 9001 standards, it guarantees reliability for long-term outdoor exposure and demanding environments .


Key advantages include:


  1. High corrosion resistance (suitable for harsh environments)
  2. Lightweight yet durable structure (enhances fuel efficiency)
  3. PVDF/PE coatings enhance weather resistance (UV/chemical protection)
  4. Excellent formability for complex shapes (bending/welding adaptability)
  5. Aesthetic color options available (customizable appearance)
  6. Long-lasting performance with low maintenance (coating durability)
  7. Customizable dimensions and coatings (flexible production)
  8. Superior strength for structural applications (5000-series alloy)


Application


Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers

About Prepainted Aluminum Coil


Prepainted aluminum coil, which is produced with aluminum sheet or (aluminum coil) and processed by coating with color. In common sense,

there are two kinds of prepainted aluminum coil-PVDF and PE, which are widely used in aluminum plate, aluminum veneer, aluminum

honeycomb panels,aluminum ceiling, shingles, scrap, pop-top, electronics.


PVDF coatings are known for their durability and weather resistance. They provide a smooth and glossy finish, making them suitable for

architectural applications. PVDF coated aluminum coils are available in a wide range of colors and are often used for exterior cladding,

roofing, and signage.


PE coatings offer good UV resistance and color retention. They are commonly used for interior applications where extreme weather

resistance is not required. PE coated aluminum coils are available in a variety of colors and are used for indoor decorations, ceiling panels, and more.




Product Parameters


Product Prepainted Aluminum Coil / Color Coating Aluminum Sheet
Thickness 0.2-3.0mm
Width 30-2750mm (ultra-wide color coating aluminum sheet in coil)
Material 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8011 etc
Temper O, H12, H14, H16, H18, H24, H26, H32, H34, etc
Inner Diameter 405mm,508mm,610mm
Color RAL, Pantone Color Or As Alient’s Demand
Coating thickness PVDF Paint Coating: Not Less Than 25um
PE Paint Coating Not Less Than 18um
Packing Wooden Pallets (Eye To Wall,Eye To Sky)
Payment Terms L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy.
MOQ 3 Tons Per Specification
Delivery Time Within 30-45 Days
Loading Port Shanghai
Application Aluminum/Roofing/ACP/Roller/Shutter/Window/Roller Shutter/Door/AluminumCeiling/AluminumGrilling/AluminumDownspoutSystem/Home Appliance’s Plate/Body tank of cold chain truck/High speed rail/Aluminum pull ring/Food packaging/Outer packing case of cap




Product Advantages

1.High flatness: the surface is flat and smooth, without obvious defects such as unevenness, wavy deformation, indentation or bulging.
2.Uniformity of colour: The colour is uniform and consistent, with no obvious colour difference.
3.Strong coating adhesion: good adhesion between the coating and the aluminium coil substrate makes it difficult for the coating to flake, peel or lose paint.
4.Good weather resistance: PVDF coatings have a colour stability of more than 20 years compared to 10-15 years for polyester coatings. 5.Strong corrosion resistance: The natural oxidation layer of aluminium combined with a protective coating such as PVDF ensures long term durability in harsh environments.
6.Malleability: complex bending and forming without cracking.

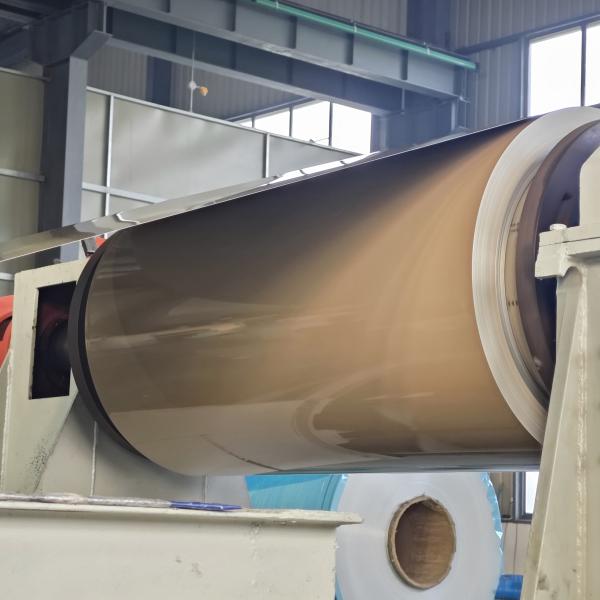

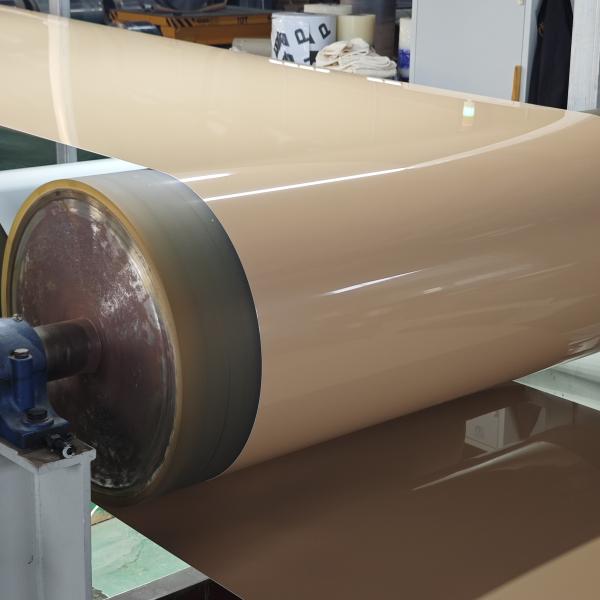

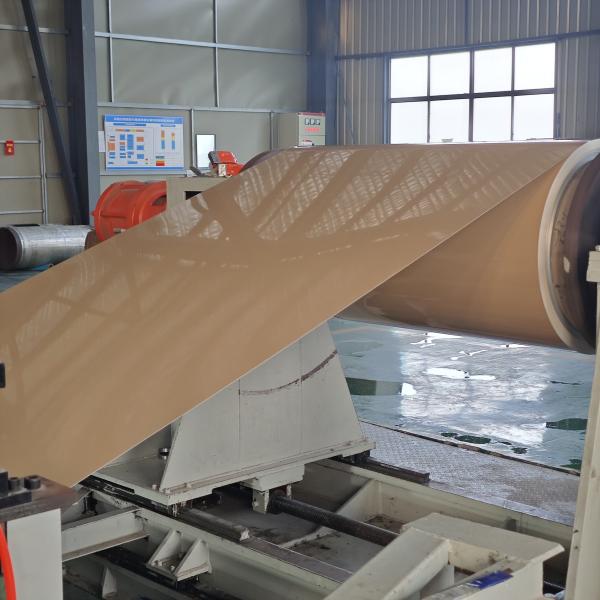

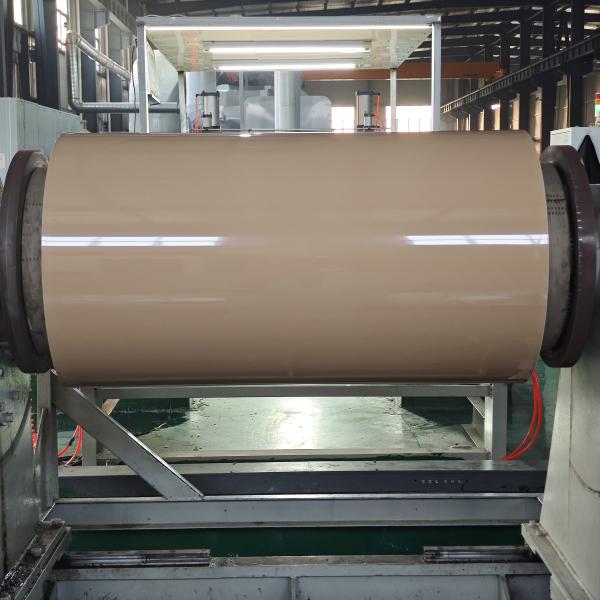

Product Show


Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers Alloy 5052 2.0mm Color Coated/Prepainted Aluminium Coil for Van housings and internal chambers
