Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Specifications
Brand Name :
Dingang
Model Number :
Color Coated Aluminum Coil
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Name :
Prepainted Aluminium Coil
Alloy :
3004
Thickness :
1.0mm
Width :
1220mm
Color :
white
Shape :
Coil
Paint Coating Type :
PE
Process :
Glossy Finish
Recyclable :
yes
Application :
Railway Station Signboards
Description

Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
Alloy 3004 1.0mm Prepainted Aluminium Coil is a top choice for railway station signboards. Crafted from 3004 aluminum alloy, it boasts exceptional weather and corrosion resistance, making it ideal for outdoor use. The high-quality PE/PVDF prepainted coating ensures vibrant, long-lasting color and excellent durability. Lightweight and easy to process, it meets the stringent requirements of railway signage for both functionality and aesthetic appeal, providing a reliable solution for clear, eye-catching station displays

Key advantages include:

1. Lightweight and easy to process
2. Excellent surface flatness
3. Superior corrosion resistance
4. Customizable colors available
5. Highly durable
6. Oxidation resistant
7. Flexible and strong
8. Easy to maintain

Application


Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards

About Prepainted Aluminum Coil


Prepainted aluminum coil, which is produced with aluminum sheet or (aluminum coil) and processed by coating with color. In common sense,

there are two kinds of prepainted aluminum coil-PVDF and PE, which are widely used in aluminum plate, aluminum veneer, aluminum

honeycomb panels,aluminum ceiling, shingles, scrap, pop-top, electronics.


PVDF coatings are known for their durability and weather resistance. They provide a smooth and glossy finish, making them suitable for

architectural applications. PVDF coated aluminum coils are available in a wide range of colors and are often used for exterior cladding,

roofing, and signage.


PE coatings offer good UV resistance and color retention. They are commonly used for interior applications where extreme weather

resistance is not required. PE coated aluminum coils are available in a variety of colors and are used for indoor decorations, ceiling panels, and more.




Product Parameters


Product Prepainted Aluminum Coil / Color Coating Aluminum Sheet
Thickness 0.2-3.0mm
Width 30-2750mm (ultra-wide color coating aluminum sheet in coil)
Material 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8011 etc
Temper O, H12, H14, H16, H18, H24, H26, H32, H34, etc
Inner Diameter 405mm,508mm,610mm
Color RAL, Pantone Color Or As Alient’s Demand
Coating thickness PVDF Paint Coating: Not Less Than 25um
PE Paint Coating Not Less Than 18um
Packing Wooden Pallets (Eye To Wall,Eye To Sky)
Payment Terms L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy.
MOQ 3 Tons Per Specification
Delivery Time Within 30-45 Days
Loading Port Shanghai
Application Aluminum/Roofing/ACP/Roller/Shutter/Window/Roller Shutter/Door/AluminumCeiling/AluminumGrilling/AluminumDownspoutSystem/Home Appliance’s Plate/Body tank of cold chain truck/High speed rail/Aluminum pull ring/Food packaging/Outer packing case of cap




Product Advantages

1.High flatness: the surface is flat and smooth, without obvious defects such as unevenness, wavy deformation, indentation or bulging.
2.Uniformity of colour: The colour is uniform and consistent, with no obvious colour difference.
3.Strong coating adhesion: good adhesion between the coating and the aluminium coil substrate makes it difficult for the coating to flake, peel or lose paint.
4.Good weather resistance: PVDF coatings have a colour stability of more than 20 years compared to 10-15 years for polyester coatings. 5.Strong corrosion resistance: The natural oxidation layer of aluminium combined with a protective coating such as PVDF ensures long term durability in harsh environments.
6.Malleability: complex bending and forming without cracking.

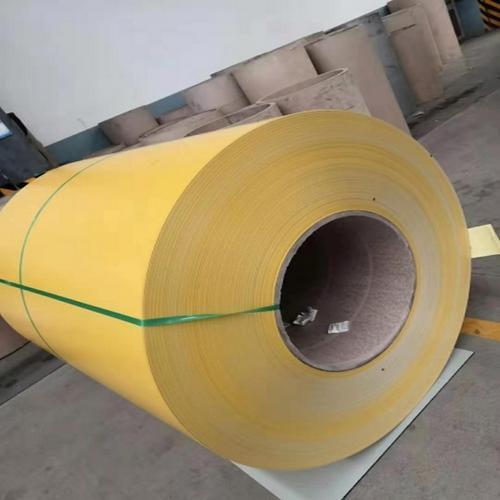

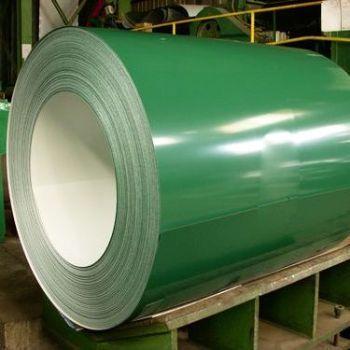

Product Show


Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards Alloy 3004 1.0mm Prepainted Aluminium Coil for Railway Station Signboards
