5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum for Stadium Construction
Specifications
Brand Name :
Dingang
Model Number :
Aluminum sheet
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Product name :
Aluminum Plate,aluminium sheet
Alloy or not :
Is Alloy
Temper :
O-H112
Thickness :
0.2-3.0mm
Shape :
Coil.sheet
Length :
≤1300mm
Description

Description

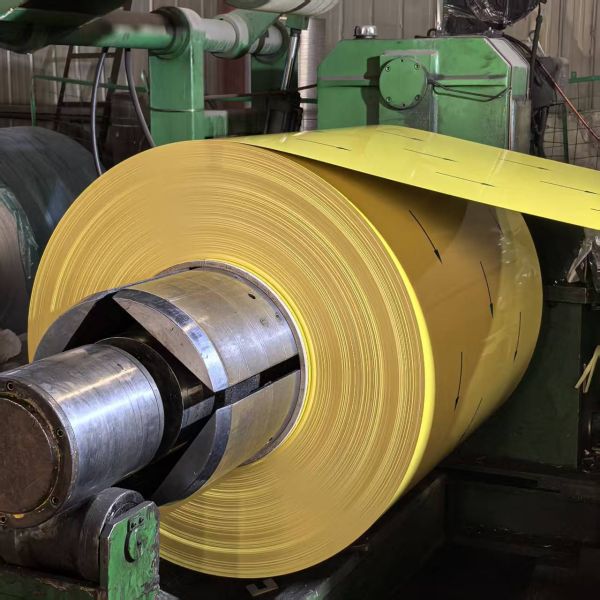

Our 5000 Series Metal Roofing Coil – 0.6mm Coated Aluminum is tailored for stadium construction. Crafted from high-performance 5000 Series alloy (Al-Mg-Mn), it delivers exceptional corrosion resistance and structural stability, ideal for large-span stadium roofs.
The 0.6mm thickness balances lightweight flexibility and load-bearing capacity, simplifying installation while ensuring durability against harsh weather. Its premium coating offers UV protection and long-lasting color, maintaining a sleek finish even in outdoor exposure.
Eco-friendly, low-maintenance, and compatible with stadium roofing’s strict safety and performance demands, this coil combines reliability and practicality. It’s the trusted choice to elevate stadium infrastructure with enduring quality and professional aesthetics.

Paint Performance

Test Item
Paint
PVDF
PE And Others
With Varnish
Without Varnish
Paint Film Thickness, μ
≥22
≥30
≥18
Shine Tolerance
Shine≥80 Unit, ±10 Unit Allowed
Shine≥20-80 Unit, ±7 Unit Allowed
Shine<20 Unit, ±5 Unit Allowed
Pencil Hardness
≥1H
Abrasion Resistance, L/μm
≥5
--
T-bend
≤2T
≤3T
Impact Strength
50KG.CM Without Depainting And Crack
Adhesive Force (Class)
≥1
Boiling Water Resistance
Unvarying
Chemical Resistance
Acid Endurance
Unvarying
Alkali Stability
Unvarying
Oil Resistivity
Unvarying
Resistance To Solvent
≥70
≥50
Scrub Resistance
≥10000 Times Unvarying
Dirt Resistance
≤15%
--
Salt Spray Resistance(class)
≥ 2 class
--

Features

5000 Series (Al-Mg-Mn alloy): High corrosion resistance
0.6mm thickness: Lightweight + excellent load-bearing capacity
Premium coated finish: UV-resistant, weatherproof, long-lasting
Tailored for stadium construction: Ideal for large-span roofs
Structural stability: Durable against harsh outdoor conditions
Easy installation: Saves time and labor costs
Low-maintenance: Minimal upkeep required
Eco-friendly: Sustainable building material
