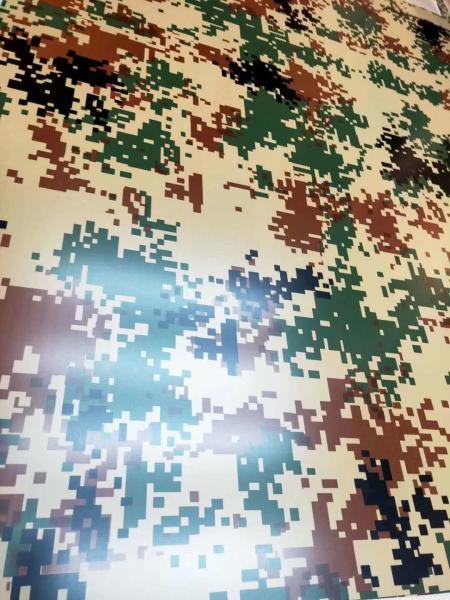

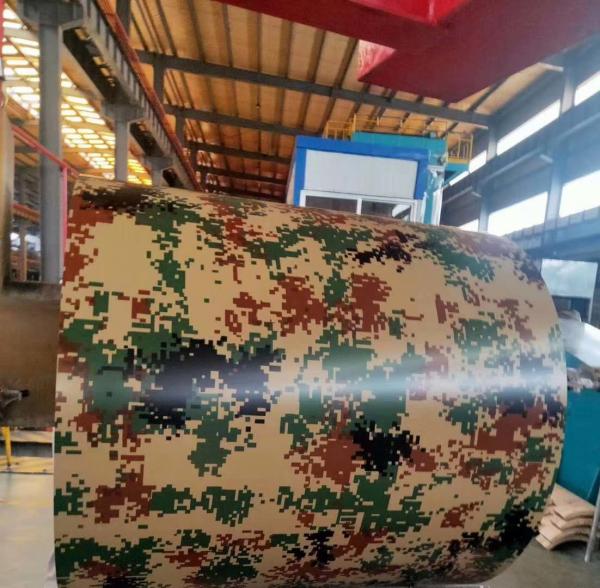

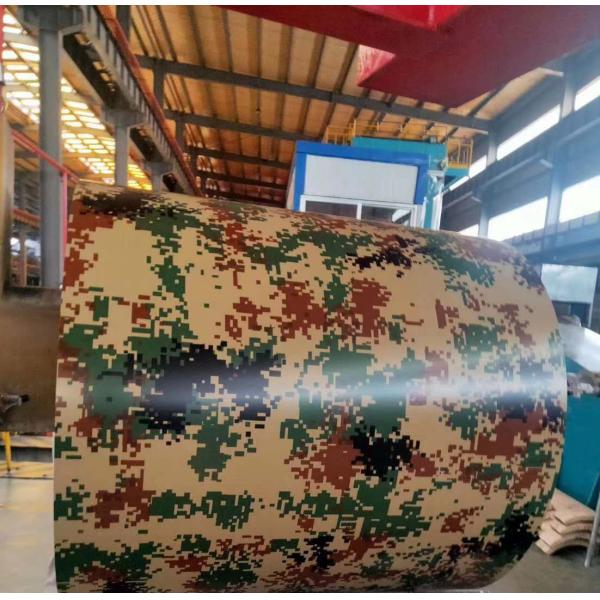

Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing
Specifications
Brand Name :
Dingang
Model Number :
Dingang - PPAL
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Product name :
prepainted aluminium plate
Alloy :
AA1060,1100,3003,3004,3105,5052 and etc
Temper :
H16,H24,H26
Application :
Construction,Roofing,Decoration of Building and etc.
Sample :
Avaliable
Type :
Pattern Coating Aluminum Sheet/ Coil
Description

Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing

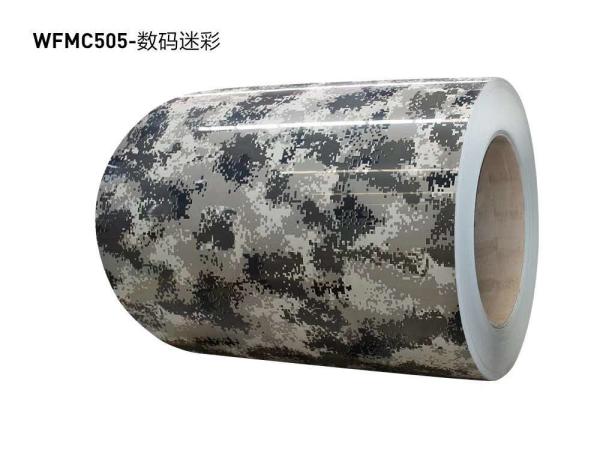

Pattern Designed Pre-painted Aluminum:

Dingang has developed brick,wood,stone,camouflage and special patterns of pre-painted aluminum decorative plate.It has the characteristics of vivid texture,easy-shaping,anticorrosion,energy conservation&environmental protection,easy installation and safety.It is excellent replacement of traditional stone and glass as decorative materials.

Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing

Specifications :

Alloy : AA1060,3003,3005,3105,5052 and etc
Temper : H16/ H24 ( All According Customers' Requirement )
Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
Thickness : 0.20 mm - 3.00mm
Width : 30 - 2650 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron,( PE ) more than 18 micron
Interior Diameter : 150mm 505mm and 508mm
Color : Ral Color Code Or As Per Clients Requirements And Sample

Design Pattern: Wood,Marble,Stone Wrinkle and so on
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100


Paint Performance of prepainted aluminium:

Test Item Paint
PVDF PE And Others
With Varnish Without Varnish
Paint Film Thickness , μ ≥ 22 ≥ 30 ≥ 18
Shine Tolerance Shine ≥ 80 Unit , ± 10 Unit Allowed
Shine ≥ 20-80 Unit , ± 7 Unit Allowed
Shine < 20 Unit , ± 5 Unit Allowed
Pencil Hardness ≥ 1H
Abrasion Resistance, L/μm ≥ 5 --
T-bend ≤ 2T ≤ 3T
Impact Strength 50KG . CM Without Depainting And Crack
Adhesive Force ( Class ) ≥ 1
Boiling Water Resistance Unvarying
Chemical Resistance Acid Endurance Unvarying
Alkali Stability Unvarying
Oil Resistivity Unvarying
Resistance To Solvent ≥ 70 ≥ 50
Scrub Resistance ≥ 10000 Times Unvarying
Dirt Resistance ≤ 15 % --
Salt Spray Resistance ( class ) ≥ 2 class --


3D Effect Grain Aluminum:

3D effect pre-painted metal material has the appearance of wood,hand feeling of the concave-convex formed by time and various textures.It has the advantages of thermal insulation,heat preservation,good leakproofness.Meanwhile,it has the characteristics of stable performance&anti-corrosion.

Advantages & Characteristics:

* Much higher adhesion between coating & substrates.

* PE & PVDF paint,high durability & wide application.

* Compared with stone material,could be punched or bent to an shape.

* Distinct & vivid texture.

Coating Production Line:

Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing

Packing :

Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)

Disruptive Pattern Prepainted Aluminum Plate For Construction Roofing

Pre-painted Aluminum Application:

Metal Roofing Building & Roller Shutter Door & Building Wall Decoration

Roofing,Cladding,Shutter Door,Ceiling,Household Appliances,Container,Advertaisement and etc.
