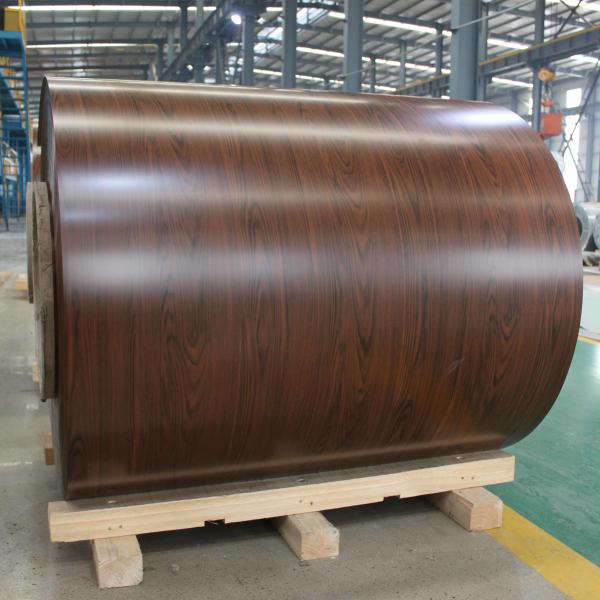

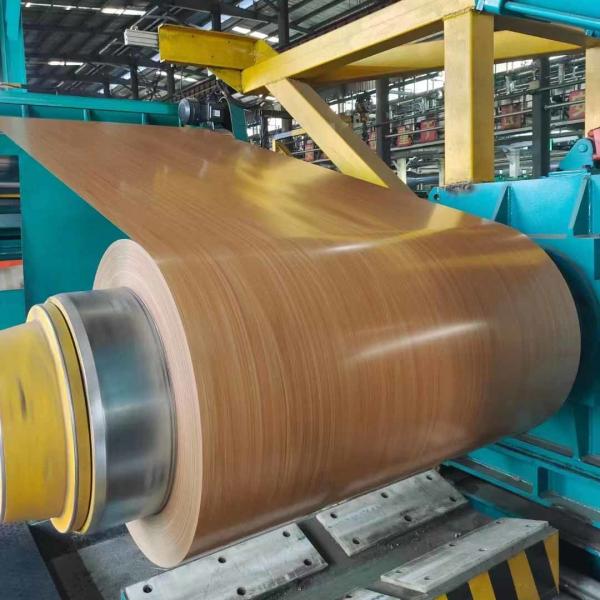

Wooden pattern color coated aluminum sheet used in house roofing
Wooden pattern color coated aluminum sheet used in house roofing
Wooden pattern color coated aluminum sheet used in house roofing
Wooden pattern color coated aluminum sheet used in house roofing
Specifications
Brand Name :
Dingang
Model Number :
Wooden pattern Aluminum sheet
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Product name :
Wooden pattern aluminum sheet
Alloy or not :
Is Alloy
Temper :
O-H112
Thickness :
0.1-4.0mm
Shape :
Coil.sheet
Length :
Custom Length,less than 2200 mm
Description

Description

1) The type of paint: PVDF(mainly), PE mainly

2) Thickness coating: PVDF: More then 25 micron; PE, more then 18 micron.

3) Paint: PPG

4) Interior diameter: 405mm, 505, mm

5) Width: Less then 1600mm, sheets are also available

6) Color: Panton, RAL or refer to customers' counter sample.

7) Coating hardness: (pencil hardness) more than 2H

8) Impact resistance: No cracking and peeling(50kg/cm, ASTMD-2794: 1993)

9) Flexibility(T-bend): No more than 2T

10) MEK resistance: More than 100

The base of Woodgrain aluminum coil details:

1) Temper of woodgrain aluminum coil: H14, H18, H24 mainly.

2) Alloy of woodgrain aluminum coil: 1100, 1050, 3003, 5052, 8011 etc

3) Origin: China

4) Minimum order quantity of woodgrain aluminum coil: 5 tons each size

5) Lead Time of Prepainted aluminum coil: Within 20 days

6) The term of payment: T/T, irrevocable L/C at sight

7) Application of Prepainted aluminum coil: Curtain wall, roof, internal and external wall, ACP, Door

8) Remarks of Prepainted aluminum strip: Specific requirement of alloy, temper or specification can be discussed at your request.


Production Procedure:


Unwinding----Buffering----First step Water Cleaning----Second step Chemical Cleaning----Coating----Paint Drying----Quality Inspection----Packing----Loading

Item
Test Item
Standard
National standard
Test Result
1
Color Difference
ECCA T3
E≤ 2.0
E≤ 1.5
2
Gloss Difference
ECCA T2
≤ 10
≤ 5
3
Coating Thickness
ECCA T1
Two layers Min 23um
≥ 25um
Three layers Min 30um
≥ 34um
4
Pencil Hardness
ASTM D3363
≥ HB
HB
5
T-bend
ASTM D4145
≤ 2T
≤ 2T
6
Adhesion
ASTM D3359
Grade 0
Grade 0
7
Impact
ASTM D2794
≥ 50 kg/cm
≥ 50 kg/cm
8
Boiling water Resistance
GB/T17748
2h No Change
4h No Change
9
Solvent Resistance
ASTM D2248
200 times paints remaining
500 times no break
10
Acidity Resistance
ASTM D1308
5%HCL 24hrs no change
No change
11
Alkali Resistance
ASTM D1308
5%NaOH 24hrs no change color Δ E≤ 2.0
No change
12
Oil Resistance
ASTM D1308
20# oil 24hrs no change
No change
13
Salt Spray Resistance
ASTM B117
4000hrs≤ Grade 1
No change
14
Abrasion resistance
ASTM D968
≥ 5L/um
≥ 5L/um
15
Dirt Resistance
GB/T9780
≤ 5%
< 5%
16
Color retaining
GB/T16259
4000 hrsE≤ 4.0
4000 hrsE≤ 3.0
17
Gloss weaken Level
GB/T16259
4000 hrs ≤ Grade 2
4000 hrs ≤ Grade 2
