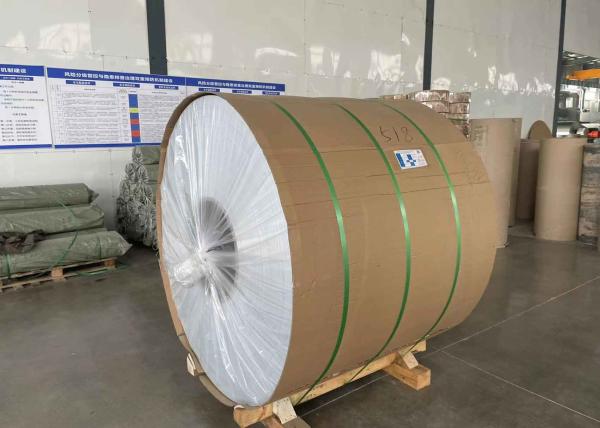

Coated aluminum sheet and coil for production Patio Cover

Color Coated Aluminum (Pre-painted Aluminum --- PPAL)
Color coated aluminum (prepainted aluminum),which is produced with aluminum sheet or coil and processed by coating with color or pattern.
In common sense, here are two kinds of coating PVDF and PE.Compared with other section steel prepainted aluminum coil is the more popular material, because of its excellent property. Firstly the property is very stable so the surface is erosion resistant, warranty could up to 30 years long after special treatment. Then,the density is the lowest among metal material when volume is fixed.

Specifications:

Alloy: AA1050,1060,1100,3003,3004,3105,5052,5005,5754,5083,6061,6063,8011 Etc
Temper:O/H16/H18/H22/H24(All According Customers' Requirement)
Standard: ASTM, ASME, AISI, JIS, DIN, EN, ISO, GB And Etc
Thickness:0.1mm -2.5mm
Width:30-2500mm
Thickness Paint Layer:(PVDF) more than 25 micron; (PE) more than 18 micron
Interior Diameter: 405mm, 505mm, 150mm etc.
Color: Ral Color Code Or As Per Clients Requirements And Sample
Coating Hardness: More Than 2H(pencil hardness)
Impact Resistance: No Cracking And Peeling (50kg/cm,ASTMD-2794:1993)
Flexibility (T-bend): No More Than 2T
MEK Resistance: More Than 100

Color Coated Aluminum Types:

Paint Performance:

Packing:

Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients).

Appliance:
As per types of surface coating of paint, color coated aluminum coils can be divided into polyester (PE) coated aluminum coil, fluorocarbon (PVDF) coating aluminum coil and Epoxy coated aluminum coil.
Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, can, home appliances board and embossed aluminum coil.
